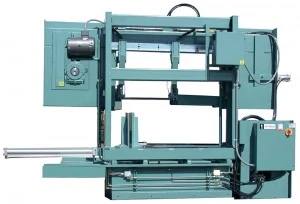

W.F. WELLS Horizontal bandsaw Model B-25-1 25" x 40", Round 25.5, 7.5 HP
Have one to sell?
ConditionNew
1 available
New
W.F. WELLS Horizontal bandsaw Model B-25-1 25" x 40" , Round 25.5, 7.5 HP
W.F. Wells, Inc is unique in the U.S. machine tool industry in that it has continued to manufacture its products in the U.S.A. while so many others are importing what they sell. W.F. Wells, Inc provides bandsaws that handle the requirements of the metal cutting industry but also non-ferrous products such as glass, ceramics, graphite, crystals and wooden products. It is this versatility that has allowed us to expand in an ever-changing market.
In 1925 William Franklin Wells founded the Wells Manufacturing Corp. to make meat-cutting bandsaws. In 1928 the company introduced a horizontal metal cutting bandsaw, which would later be claimed to be the world's first such saw.
At some point Mr. Wells sold his interest in the business. The new owners emphasized the Wellsaw brand, which had already been in use; the official company name remained the same. In 1948 Mr. Wells formed another company called W. F. Wells & Sons, which also made metal cutting bandsaws.
In 1985 Wells Manufacturing Corp. got into financial trouble and changed hands. In 1991 the new owners of Wells Manufacturing Corp. purchased the assets of W. F. Wells & Sons, and merged the two companies, with the merged company being named W.F. Wells, Inc. The company is still in business today manufacturing horizontal metal cutting band saws.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Discharge Worktable 40" W X 56" L 0056194 $6,825.00
Hydraulic Holddown, Saw Vise 0056064 $5,750.00
Hydraulic Chip Conveyor 0056069 $6,725.00
Blade Break/Stall Switch 0052707 $710.00
Non-Powered Conveyor, 40" X 5' 0050190 $8,375.00
Non-Powered Conveyor, 40" X 10' 0050189 $11,875.00
Laser Shadow Line 0056319 $3,200.00
Electric Powered Conveyor, 40" X 10' $18,500.00
High Speed Drive & Guides (1¼" Blade) 500-3000 SFPM $9,300.00
Outboard Vise 0056153 $11,825.00
Outboard Vise with Hydraulic Holddown 0056463 $17,100.00
Mist Coolant 0010774 $ 3,225.00
Machine Specifications
Capacity: Rectangular at 90° 25″ High X 40″ Wide, Round 25.5″ Diameter
Rectangular at 45° 25″ High X 24″ Wide, Round at 45° 24″ Diameter
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 22′-6″
Blade Guide: Carbide Blocks with Roller Backup
Blade Tension: Hydraulic
Bandwheel Size: 26″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 28″
Outfeed Table: 24" X 40”
Blade Tension Indicator
Electronic Door Interlocks
Shipping Weight: 5,800 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 161″ Length x 52″ Width x 100″ Height
