2025 SENFENG Panel Bender Model BDC 3200, Press-Down Panel Bender
Have one to sell?
ConditionNew
1 available
New
2025 SENFENG Panel Bender Model BDC 3200, Press-Down Panel Bender
BDC series is a new generation of fully automatic multilateral bending center. The product not only saves a lot of manpower, but the continuous bending speed is 3 times that of the CNC press brakes, reaching 0.2s/time.

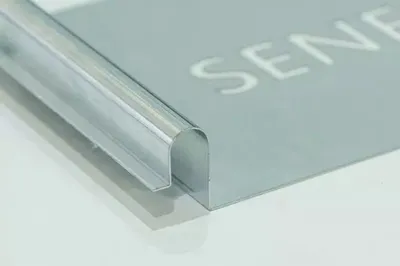

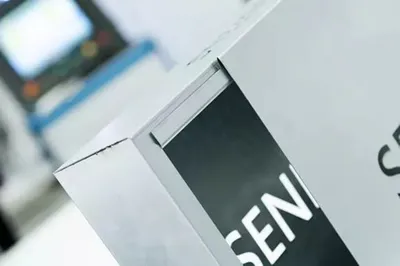

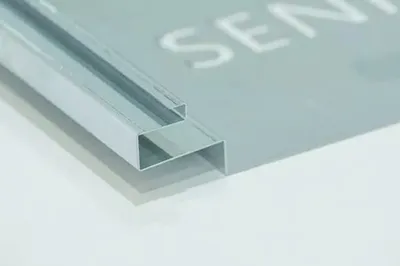

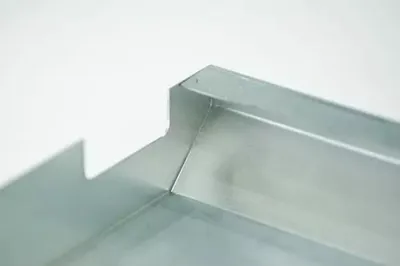

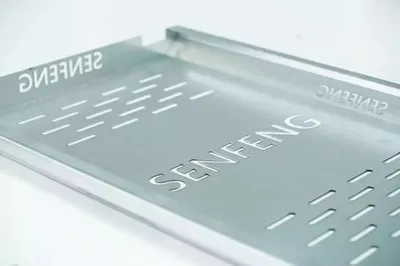

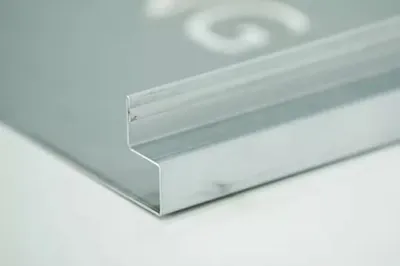

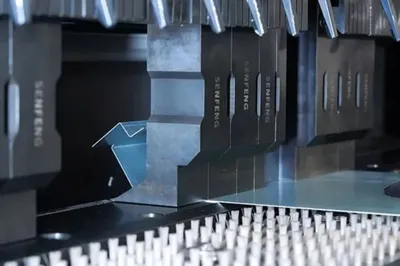

The bending center can easily realize basic bending styles such as right angle, acute angle, obtuse angle, etc., and can also realize arc, dead edge, return type, closed type and other complex sheet metal bending requirements.
Push-down Automatic Panel Bending Center BDC-2500

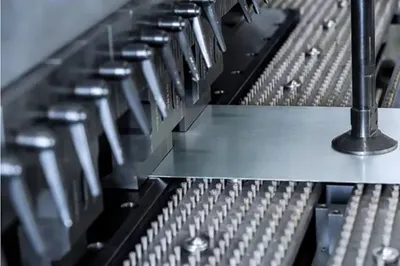

SENFENG Flexible Bending Center focuses on solving various complex sheet metal bending problems in metal forming. Through multi-axis concurrent linkage, the dependence on molds and labor is solved, production efficiency is effectively improved, and production costs are reduced.
Professional CNC System

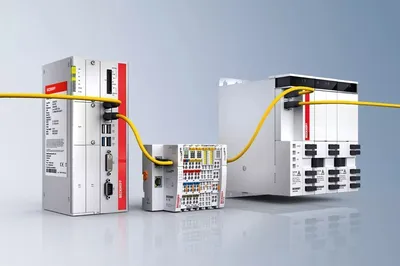

SENFENG uses the multi-axis concurrent link intelligent CNC system of the EtherCAT bus protocol to support up to 64 axes. At the same time, it can realize graphic visual programming, and 2D drawing process programming.
Model BDC-1500 BDC-2000 BDC-2500 BDC-3200
Maximum bending length 1500mm 2000mm 2500mm 3200mm
Number of Controlled Axis 13/16
Max Bending Speed 0.2S/bend
Maximum bending height 200mm（optional:300mm）
Maximum thickness and bending angle (Standard tools)
304 stainless steel 1.5mm
cold plate 2.0mm
AL sheet 2.5mm
Minimum thickness 0.35mm
Rated Voltage 380V
Dimensions（L*W*H） 4400*2000*2750mm 5000*2700*2950mm 5700*3200*3050mm 6600*4000*3280mm
Gross Mass 13T 17T 22T 25T
