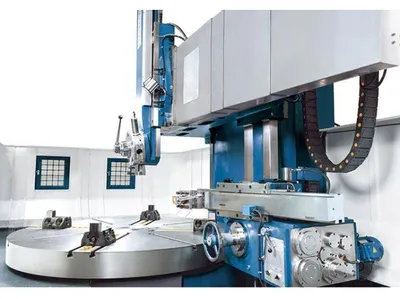

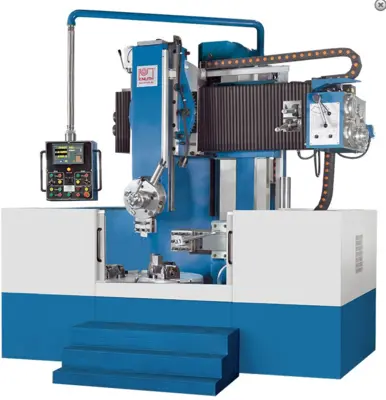

KNUTH VDM 1600 S Vertical Turret Lathe, Manual, 55" Table; 63" Swing
Vertical Lathe
Manual, solid and proven technology with inverter controlled main drive. Ideal for rework
of heavy duty work pieces
• Infinitely variable feed control via servo-motor
• Optimum tooling and easy access for cranes and forklift trucks
• Heavy-duty column with wide, hardened guideways
• Hydraulic clamping of cross traverse
• Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
• Spindle runs in a high-precision two-row roller bearing and is adjustable
• Reduction 4-Speed gear drive ensures high torque and a speed range of 5 - 160 rpm,
infinately variable in each gear. • Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
STANDARD EQUIPMENT
3-axis position indicator, tool holder vertical, tool holder horizontal, Automatic central lubrication, work lamp, anchor bolts, and operating tools
Note: *Requires professional installation by KNUTH Technicians, machine final assembly is done on-site at customer facility. Price quoted separately due to variable costs based on installation location and assistance/equipment available during installation. Please ask your sales representative for more information.
TECHNICAL DATA
Working Area
Rotating diameter (max.): 63 in.
Turning diameter of upper tool holder: 63 in.
Turning diameter of side tool holder: 55 in.
Machining height (max.): 39 in.
Travel X1 axis, upper support: 36 in.
Travel Z1 axis , upper support: 31 in.
Travel W-axis, traverse: 26 in.
Travel X2 axis , side support: 25 in.
Travel Z2 axis , side support: 35 in.
Swivel range of upper tool holder: ± 30 °
Workpiece length (height max.): 39 in.
Work piece weight (max.): 11,000 lbs
Headstock
Speed range: (4) 5 - 160 rpm
Headstock torque: 18,400 ft.lb.

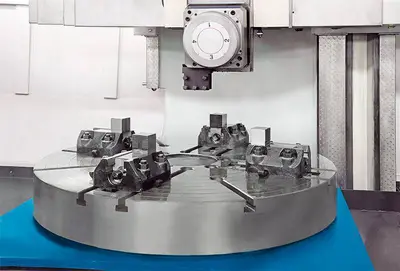

Rotary table diameter: 55 in.
Rapid feed
Rapid feed of upper support: 71 in./min
Rapid feed of side support: 71 in./min
Feed
Feed speed X-axis: 0 - 3 in./min
Feed speed Z-axis: 0 - 3 in./min
Feed speed W-axis: 17 in./min
Tool Head
Tool holder: 1.2 x 1.6 in.
Tool weight max.: 110 lbs
Drive Capacity
Motor rating main drive: 29.5 Hp
Motor rating X-axis: 1,3/1,8 kW / 2/2.4 Hp
Motor rating Z-axis: 1,3/1,8 kW / 2 /2.4 Hp
Measures and Weights
Overall dimensions: 111 x 105 x 111 in.
Weight: 27,500 lbs
