2007 FERMAT VLC 1600 ATC+C VERTICAL TURRET LATHES WITH SINGLE COLUMN
Have one to sell?
$259,500.00 USD
ConditionUsed
1 available
2007 FERMAT VLC 1600 ATC+C VERTICAL TURRET LATHES WITH SINGLE COLUMN
FERMAT began in 1990 and was founded by Jiří Ferenc and Mr. Matys, whose last names were used to form the company name. From the outset, FERMAT has benefited from the solid professional ethics of family and friends to guide its excellence. Through strong growth and strategic acquisitions in the Czech Republic and the United States, FERMAT has become the leading manufacturer of the most powerful and accurate horizontal boring and milling machines and cylindrical grinding machines, providing machine tools for all major markets worldwide.
Today, FERMAT has more than 470 employees on three continents, producing more than 100 machines a year. FERMAT's main production and assembly facilities are in Brno, the second largest city of Czechia and Lipnik nad Becvou, to the north-east. As FERMAT continues to expand its machine tool range, this capital expansion will continue.
C Axis
Technical Details:
Machine - Datasheet
CNC
Year manufacture/Year overhaul ......... 2009

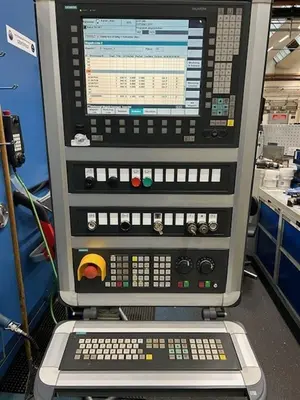

Control system Siemens ................. Sinumerik 840 D
Max. diameter of workpiece ............ 2000 mm
Clamping diameter of rotary table ..... 1600 mm
Max. load of table .................... 8000 kg
Max. workpiece height ................. 1550 mm
Ram travel (Z) ........................ 900 mm
Driven Tools
Number of tool positions (driven) ..... 16/16
Tool magazine
Number of positions in magazine ....... 16
Travel X-axis ......................... 1575 mm
Travel Z-axis ......................... 900 mm
Machine dimensions l x w x h .......... 5300x4666x5200 mm
Machine weight ........................ 25000 kg
Ram size .............................. 220x220 mm
Max. diameter of peripheral turning ... 1800 mm
Max. diameter of face turning ......... 2000 mm
Cooling through spindle
Pressure of cooling ................... 12 bar
Main motor power ...................... 60/84 kW
Speed driven tools .................... 1 - 2400 /min
Table rotation ........................ 1 - 250 /min
Location: Staufenberg
max. diameter of face turning 1800 mm
with live tools
