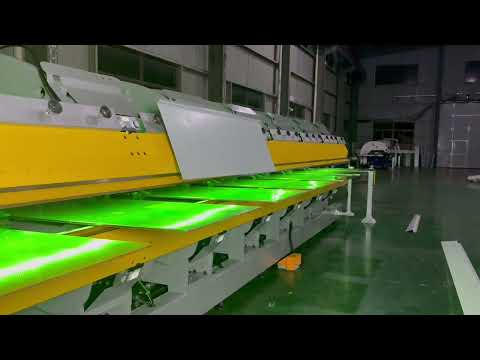

SENFENG Double-Folding Machine, Model: BDL6400
As one of the world’s leading manufacturers, SENFENG USA has proven to be reliable with superior quality and high machine performance.
In 2014, we opened a branch in Los Angeles, Ca. We are a national key high-end equipment R&D and production enterprise specializing in production and sales of intelligent fiber laser cutting, laser welding, laser cladding, bending, milling, 3D robots, etc.
Synchronous Power Control Shaft Technology
The double-folding long material flanging machine is equipped with six 50mm synchronous shafts
on the flanging slider and clamping slider. The synchronous power shafts ensure the horizontality of
the flanging and clamping sliders, which is essential for forming arcs and prolonging the machine's
lifespan. The synchronous shafts eliminate uneven forces generated by hydraulic cylinders,
preventing distortions in the workpiece. They also enable dual-pump technology for the flanging
dies, increasing the machine's speed. All shafts operate smoothly on enclosed spherical bearings,
ensuring no jerky movements during forming
Zero-Position Locking
Unique Bending Space
Dynamic Folding
Hardened Linkage Mechanism
Hydraulic System
Rear Gauge Table and Finger System
Spring Steel Gauge Fingers
Tapered Positioning
Safety System-In automatic mode, the operator is protected by a laser safety light curtain
LED Lighting for Bending Zone
The EASYFOLD control system manages 10 axes and handles: sheet type, thickness (via material table management), unfolded dimensions, rear positioning, bending angle, clamping die opening height, angle
calibration, data sheets, and clamping force.
Additional features include:
• Touchscreen graphical programming with
automatic bending sequence
• Workpiece graphic folder management
• Automatic, semi-automatic, and manual modes
• Management of over 10,000 graphics
• Bending interference simulation
• 3D graphic demonstration
• Data programming
• Adjustable speed
• Computer functionality
• Real-time machine controller status display
• Dual-channel safety circuit
• Reference point calibration input
• Control parameter configuration input
• Data processing via USB or network (LAN/Wi-Fi)
• Remote maintenance
• Order time recording (ERP compatible)
• DXF drawing import and software interface
MODEL BDL6400
Bending Capacity 1.5 mm
Bending Length 6.4 m
Positioning Depth 1250mm
Positioning Accuracy +/-0.1 mm
Positioning Speed 250 mm/s
Opening Height 150 mm
Angle Accuracy +/-0.5°
Maximum Bending Angle 143°
Bending Speed 100°/s
Folding Die Width 10 mm
Number Clamping Fingers 4
Number of C-Type Bases 5
Power Requirement Voltage 380V 3phase
Power 37kW
