2005 SUN FIRM Model CET-36120 Large Engine Lathe, 36" Swing; 120" CC
Have one to sell?
ConditionNew
1 available
New

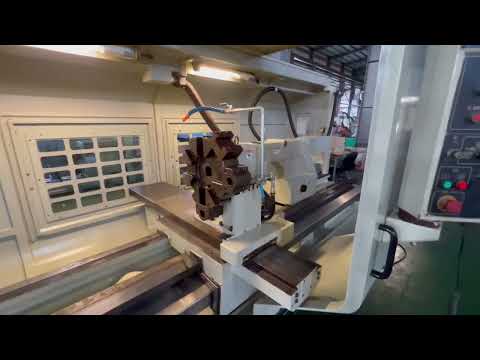

2005 SUN FIRM Model CET-36120 Large Engine Lathe, 36" Swing; 120" CC
The SUN FIRM Model CET-36120 is a large engine lathe designed for heavy-duty applications. Key specifications include a swing over bed of 36 inches, a distance between centers of 120 inches, and a powerful 30 HP motor. It features a 9-inch spindle bore, a 4-way bed system, and a range of optional spindle bores.
Sun Firm Machinery has 60 years in lathe manufacturing. With great experiences and techniques, we can design and manufacture horizontal heavy duty giant CNC lathe, and heavy duty precision lathe according to customer requirements.
Hydraulic tailstock
turret V8 tool turret
Color LCD 10.4"
MPG Handwheel
Auto Lubrication System
Electro-Magnetic Spindle Brake
Auto Power off
Coolant System
Chip Guard
Headstock Coolant System:
Work Light:
Live Center:
Steady Rest:
Rear Chip Conveyor:
Double door & Splash Guard:
Swing Over Bed: 36 inches
Distance Between Centers: 120 inches
Spindle Bore: 4.05 inches
Cross Slide Travel (X Axis): 13.7"
Motor: 30 HP main spindle motor 30 HP
Rapid Feed Carriage 393 ipr
Bed System: 4-Way bed system
Width of Be: 18"
Spindle Nose: A2-15
Spindle Speed Range: 1-680 rpm
Bed Ways: Hardened and ground bed ways and gears
Dimensions & Capacities:
Turret: OD Tool Shank Size: 1" x 1"
ID Shank Diameter: 1.57"
Swing over cross slide: 21.6 inches
Distance between centers: 118"
Chuck Diameter: 12.2"
Spindle:
Spindle nose: A2-15
Range of spindle speed: 1-680 rpm
Number of spindle speeds: 2
Travels:
Cross slide travel (X-axis): 19 inches
Hydraulic Pump" 2 HP
Coolant Pump: 0.5 HP
