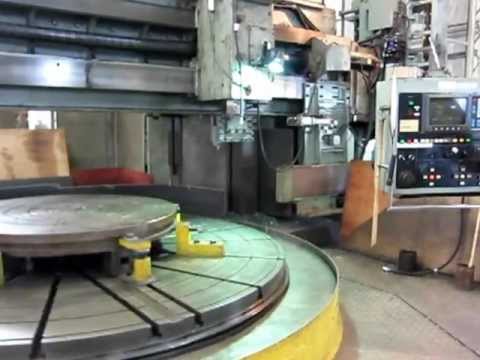

Used O-M TMS 30/70 Vertical Turret Lathe; 118" Table, 276" Swing, 112" Under the Rail
Have one to sell?
ConditionUsed
1 available
Used O-M TMS 30/70 Vertical Turret Lathe; 118" Table, 276" Swing, 112" Under the Rail
The OM TMS 30/70 is a vertical turning lathe with a table diameter of 3000mm and a maximum turning diameter of 7000mm. Key features include a maximum turning height of 2850mm, a maximum height under the cross rail of 3155mm, and a table speed range of 0.3 to 40 RPM.
Table Diameter: 3000 mm 118"
Maximum Turning Diameter: 7000 mm 275.6"
Maximum Turning Height: 2850 mm 112.2"
Column Travel: 1800 mm " 70.8
Vertical Travel of Cross rail: 79.0"
Maximum Height below Cross rail to Table: 124"
Maximum Travel of Column Left to Right: 71"
Table Speed Range: 0.3 to 40 RPM
Number of Table Speeds: 16
Number of Feed Steps: 16
Range of Feed horizontal & vertical: 0.003 - 0.059 inch/rev.
Rapid Travel: 49 inch/min.
Rapid Travel of Cross Rail: 12 inch/min.
Maximum Torque: 58,000 ft lbs.
Main Motor: 60 HP
Motor for Vertical Travel of Cross Rail: 10 HP
Motor Travel of Column: 7.5 HP
Table Weight Capacity: 59874 KG 131,722 lbs.
Floor Space: 10160 mm x 7620 mm 400" x 300"
