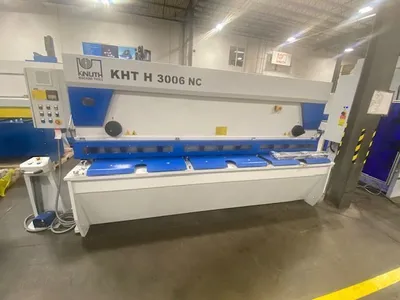

2025 KNUTH Model KHT H 3006 NC Power Squaring Shear, 1/4" x 10 feet

Description

2025 KNUTH Model KHT H 3006 NC Power Squaring Shear,1/4" x 10 feet
The new KHT H NC series features high machining quality and reliability, is easy to handle and provides superior cutting performance
Machine Frame:
The machine frame is made of a high-precision, stress-relieved steel weldment and features rigid sliding block guides
Motorized adjustments of kerf and knife angle allow for ideal settings optimized for the sheet metal plate to be processed
All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Material Support:
The large work table features roller balls and a rigid lateral angular stop for easy handling and safe plate alignment
Long, sturdy support arms safely hold large plates
Hydraulics:
Polished pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life
Cylinder bodies are forged from high-strength SAE 1040 material
During the cut, hydraulically regulated hold-downs ensure steady fixation of the sheet metal plate close to the cut-line
Back Gauge and Control:
Linear guides and preloaded ball screws are mounted in a protective enclosure
The user-friendly NC positions the back gauge precisely for single cuts or for program runs
Equipment:
Upper and lower knives suitable for stainless steel
The machine is operated via a foot pedal with emergency stop switch, and the pedal can be located wherever it is most convenient
The upper knife features 2 cutting edges, the lower knife has 4 cutting edges
Safety:
Safety concept based on the latest CE standards

Guillotine shears allow you to produce uniform and relatively burr-free sections of sheet metal or metal, which are then shaped on a press brake or bending machine. In the case of hydraulic guillotine shears, our CNC model includes an adjustable cutting angle. Motorized guillotine shears feature an impressive compact design and robust construction. Both series cut large material widths and thicknesses and are available with NC or CNC control. A manual guillotine shear rounds off our offer.
