2000 Used HYD-MECH 16" X 25" Automatic Horizontal Bandsaw Model M-16A

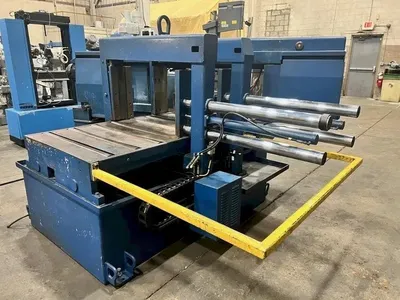

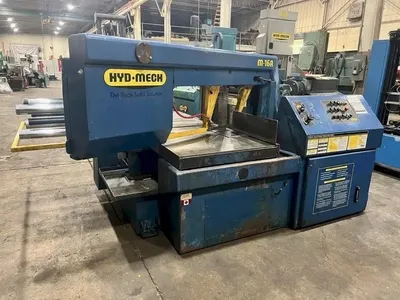

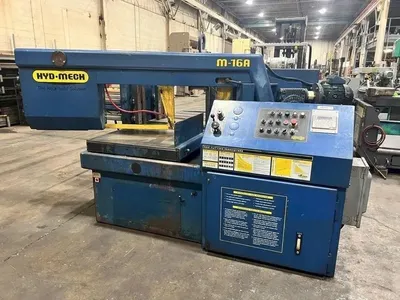

USED HYD-MECH 16" X 25" AUTOMATIC HORIZONTAL MITERING BANDSAW MODEL M-16A, Stock# 11072, Year: 2000
Equipped With:

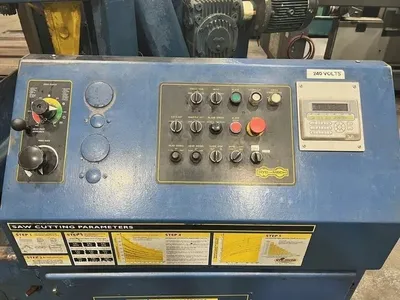

PLC control with 99 job storage with 5 jobs in que
Positive hydraulic downfeed
Hydraulic head miter with scale
Out of stock switch
Hydraulic chip auger
Work light
Flood coolant
We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor.
Specifications:
Brand: Hyd-Mech
Model: M-16A
specifications:
Capacity @ 90 degrees: 16" T x 25" W
Capacity @ 45 degrees: 16' T x 14" W
Capacity @ 60 degrees: 16" T x 9" W
Blade size: 1-1/4" x 18'6" x .042"
Blade speed: 75 - 400 FPM (infinitely variable)
Blade tension: Hydraulic
Blade guides: Carbide
Blade wheel diameter: 19"
Blade motor: 5 H.P.
Shuttle stoke: 0-33" (capable of multi-strokes)
Table height: 32"
Maximum workload: 8,000 Lbs.
Hydraulic motor: 3 H.P.
Vise control: Hydraulic full stroking
Voltage: 220 volt 3 phase
Dimensions: 130" x 90" x 66"
Weight: 7,400 Lbs.
