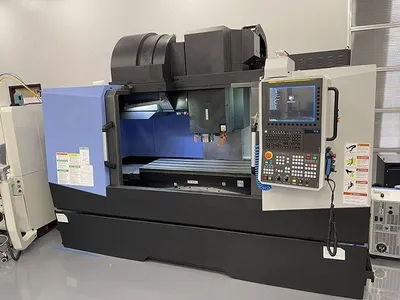

2024 DOOSAN Model SVM 5100L, Travels: x= 50", Y= 20", Z= 20", 12,000 RPM, 30 Tool ATC, CAT 40, MACHINE HAS NEVER CUT A PART , INSPECT UNDER POWER IN USA
Have one to sell?
ConditionNew
1 available
New
2024 DOOSAN Model SVM 5100L, Travels: x= 50", Y= 20", Z= 20", 12,000 RPM, 30 Tool ATC, CAT 40
MACHINE HAS NEVER CUT A PART, INSPECT UNDER POWER IN USA
Doosan Machine Tools, now known as DN Solutions, has a rich history rooted in the founding of Park
Seung-Jik Store in 1896. From its humble beginnings as a retail store, Doosan grew into a multinational conglomerate with a strong presence in manufacturing, including machine tools. The company has evolved through acquisitions, expansions, and technological advancements, becoming a global leader in the machine tool industry.
EQUIPPED WITH:

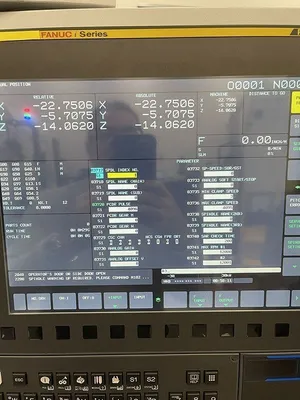

DOOSAN-FANUC i SERIES PLUS CNC CONTROL
REMOTE JOG HANDLE
RENISHAW PROBE READY (EYE AND WIRING PRESENT,
PURCHASE OF PROBE TOOL REQUIRED
300 PSI THROUGH SPINDLE COOLANT
SPINDLE CHILLER
30 POSITION SIDE MOUNT TOOL CHANGER
CAT 40 TAPER
MACHINE HAS NEVER CUT A PART
INSPECT UNDER POWER IN USA
SPECIFICATIONS:

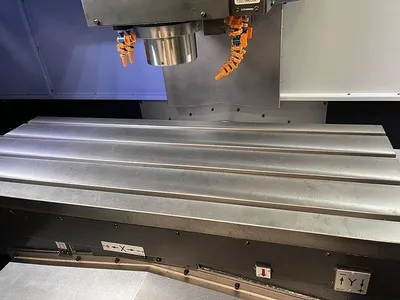

TABLE SIZE .................... 20" x 52"
TABLE CAPACITY ................ 1,764 lbs / 800 kg
X-AXIS TRAVEL ................. 50" / 1270mm
Y-AXIS TRAVEL ................. 20" / 510mm
Z-AXIS TRAVEL ................. 20" / 510mm
SPINDLE SPEED ................. 12,000 RPM
SPINDLE MOTOR ................. 25 hp
SPINDLE TAPER ................. CAT 40
TOOL CAPACITY (ATC) ........... 30
RAPID TRAVERSE RATE ........... 1,417 in/min.
APPROX MACHINE WEIGHT ......... 12,850 lbs
APPROX MACHINE DIMENSIONS ..... 87"L x 122"W x 106"H
