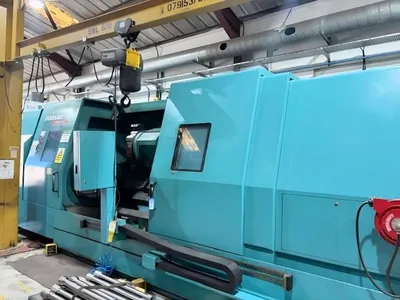

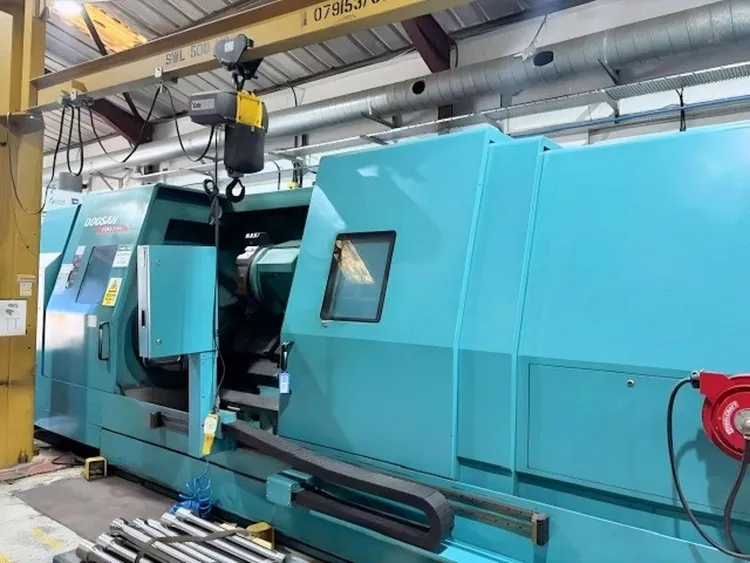

2014 DOOSAN PUMA 700L CNC LATHE, Swing 40.55"; CC 126", Tool Setter, Hyd Steady, Swarf Conveyor
Have one to sell?
$229,500.00 USD
ConditionNew
1 available
New
2014 DOOSAN PUMA 700L CNC LATHE, Swing 40.55"; CC 126", Tool Setter, Hyd Steady, Swarf Conveyor
Doosan Machine Tools, now known as DN Solutions, has a rich history rooted in the founding of Park
Seung-Jik Store in 1896. From its humble beginnings as a retail store, Doosan grew into a multinational conglomerate with a strong presence in manufacturing, including machine tools. The company has evolved through acquisitions, expansions, and technological advancements, becoming a global leader in the machine tool industry.
The machine has a Samchully 32” power chuck
- It will fit into 1 x 40 Open Top container but would need some dismantling. Control Panel, Electrical panel, some guarding. This would be done by a Doosan approved engineer and all cables / wiring marked. Back up of all parameters will also be supplied.
- Nearest port that ships to East Coast, US would be Liverpool
Price incldes dismantling and loading.
32" Samchully Hydraulic Chuck
Tool setter
Hydraulic steady
Swarf conveyor

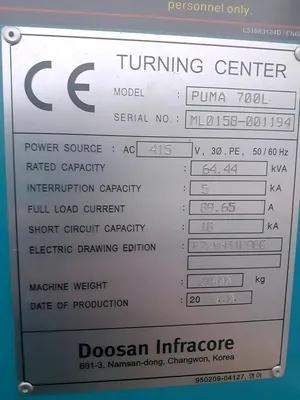

Model: 700 L
Year: 2014 - October

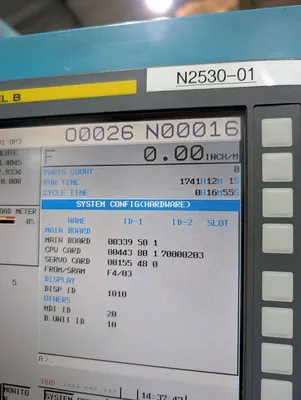

Control: Fanuc 31i – Model B
Swing over bed: 1030mm 40.55"
Swing over saddle: 800mm 31.5"
Maximum turning diameter: 900mm 35.43"
Maximum turning length: 3200mm 125.98"
Bar Capacity: 164mm 6.46"
Spindle speed: 1500 rpm
spindle power: 45/37KW 60 hp
X axis Travel : 470mm 18.5"
Z axis Travel : 3235mm 127.36"
Spindle Nose: A1-15
OD tool size: 32 x 32mm 1.25" X 1.25"

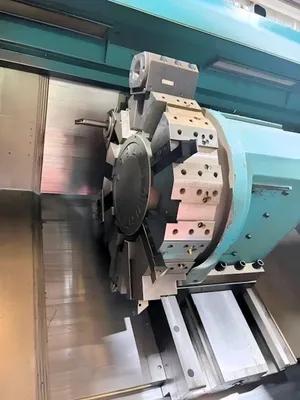

12 station turret
Fanuc 32i control
800mm 3 jaw chuck (32”)
Tailstock Body 3135mm
Tailstock Quill Stroke 150mm 5.91"
Tailstock Quill Diameter 160mm 6.3"
Tailstock Taper MT #6
Machine Dimension 7360x2770x2780mm 289.76" X 109.06" X 109.45"
Machine Weight 21800kg 47,960 LBS
