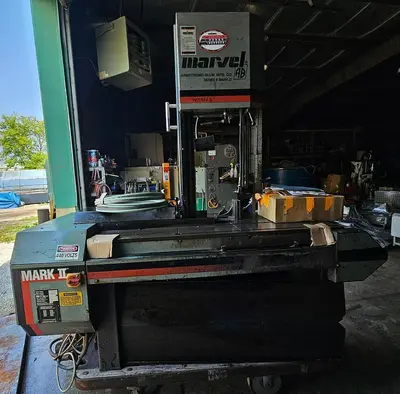

MARVEL Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22" Capacity
Have one to sell?
$12,750.00 USD
ConditionNew
1 available
New
MARVEL Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22" Capacity
Marvel Saw Company, now Amada Marvel, Inc., has a history dating back to 1904, when it was founded in Chicago, Illinois, as Armstrong-Blum Mfg. Co.. The company, started by the Armstrong and Blum families, initially focused on manufacturing tools and tool holders. They later diversified into saw production, with their first power-driven hack saw introduced in 1906. The company later moved to Oshkosh, Wisconsin, and was acquired by Amada Holdings Co., Ltd. in 2018, becoming Amada Marvel, Inc.
+5
Marvel Saw Company, now Amada Marvel, Inc., has a history dating back to 1904, when it was founded in Chicago, Illinois, as Armstrong-Blum Mfg. Co.. The company, started by the Armstrong and Blum families, initially focused on manufacturing tools and tool holders. They later diversified into saw production, with their first power-driven hack saw introduced in 1906. The company later moved to Oshkosh, Wisconsin, and was acquired by Amada Holdings Co., Ltd. in 2018, becoming Amada Marvel, Inc.

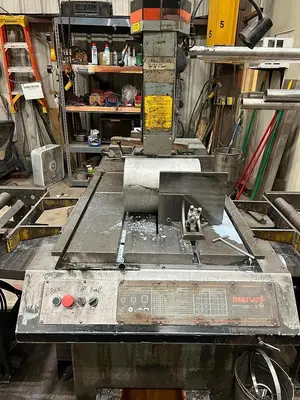

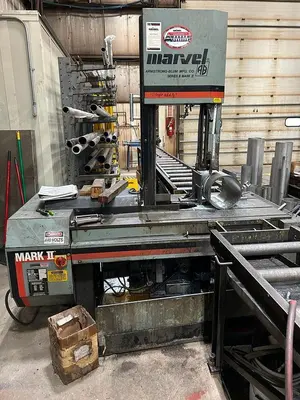

Marvel Band Saw Series 8 Mark II
New – 1995

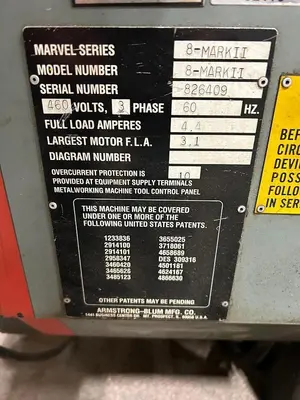

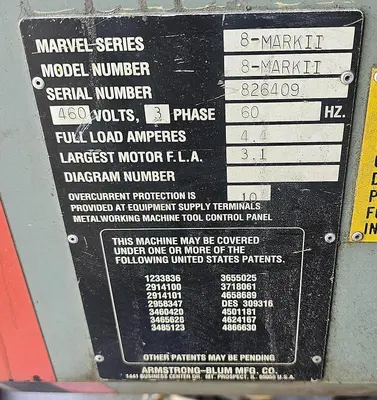

Serial No. 826409
Marvel Band Saw Series 8 Mark II
SPECIFICATIONS:
Nominal Capacity…………...............................18″ x 18″
Maximum Capacity…………...............................18″ x 22″
Vertical Capacity at 45 Degrees…………................12-3/4″
Table Working Surface…………..........................33″ x 24-1/4″
Height of Table…………................................34-1/2″
Tee Slots (4)…………..................................3/4″
Maximum Open of Vise…………...........................20″
Vise Height…………....................................6″
Main Drive………….....................................2 HP, 1,800 RPM
Blade Speed Range…………..............................50-450 RPM
Blade Size………….....................................0.035″ Thick/1″ Wide /14′-6″ Long
Feed Force………….....................................0-140 Lbs.
Coolant System Motor…………...........................1/4 HP
Reservoir Capacity………….............................20 Gal.

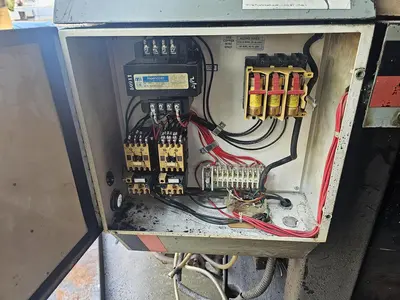

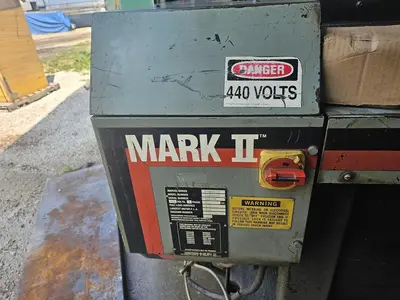

Electrics…………......................................3/60/460
Approximate Dimensions………….........................79″ x 90″ x 85″(H)
Approximate Weight………….............................2,870 Lbs.
Marvel Band Saw Series 8 Mark 2 EQUIPPED WITH:

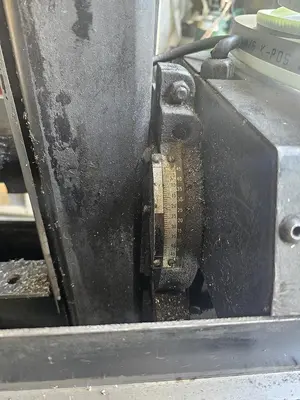

Tilt up to 45 Deg. Left and Right of Vertical

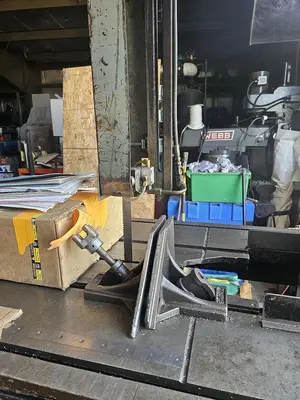

Workholding Vise: Maximum Open – 21″/ Jaw Height – 6″

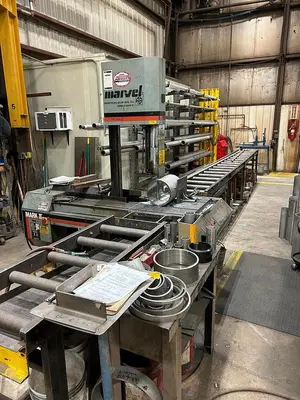

CONVEYOR SYSTEM NOT INCLUDED
