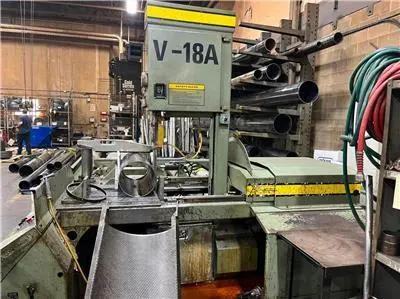

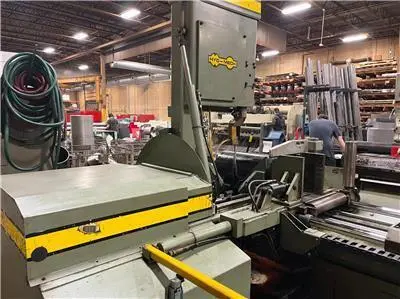

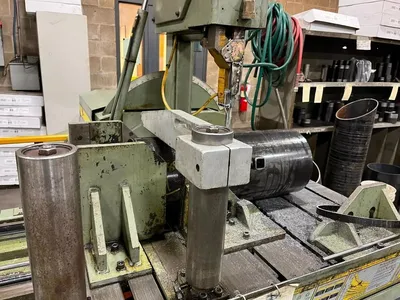

2000 HYD-MECH V-18A 18' X 20' Automatic Vertical Tilt Frame Saw
Have one to sell?
ConditionNew
1 available
New
2000 HYD-MECH V-18A 18' X 20' Automatic Vertical Tilt Frame Saw
Automatic PLC Control, Automatic Multi-Indexing up to 40″ in a Single Stroke, Hydraulic Head Tilt, Hydraulic Guide Arm, Flood Coolant
The Hyd-Mech V-18A is a vertical band saw with a 18" x 20" capacity. It features a 5 HP blade drive motor and a 2 HP hydraulic drive motor. The saw has a blade speed range of 65 to 385 FPM and a head feed rate of 0-15 IPM. It also has a 26" x 93" infeed table and a 17-gallon hydraulic oil capacity.
The V-Series saws are built to last and deliver non-stop performances.
These are heavy-duty, high-performance vertical tilt frame saws that have the flexibility for cutting two-way miters. The V Series is available in semi-automatic and automatic modes of operation with cutting capacities up to 30″ and bar feeds from 40” to 120”.
Features: Hydraulic blade tension, hydraulic blade guide, auto infeed, and hydraulic digital control.
Capacity: 18″ W x 20″ H at 90 degrees
18″ W x 13″ H at 45 degrees
Blade Dimensions: 1-1/4" x 14' 11".
Blade Drive: 5HP.
Blade Speeds: 75 – 400 FPM.

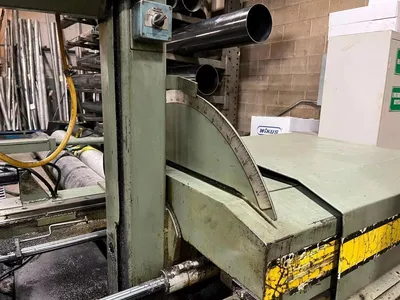

Head Tilt: 45 degrees in either direction.

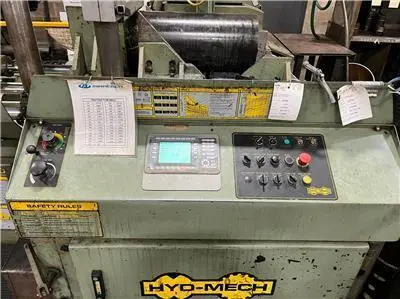

Control System: Automatic PLC control with pr
Hydraulic Drive: 2HP.
Hydraulic Tank Capacity: 17 Gallons.
Machine Workload: 6,000 Lbs.

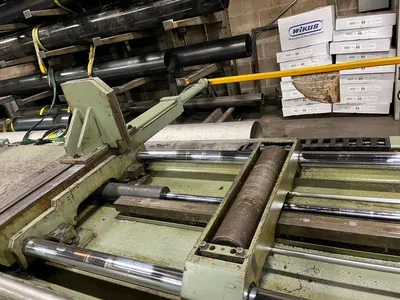

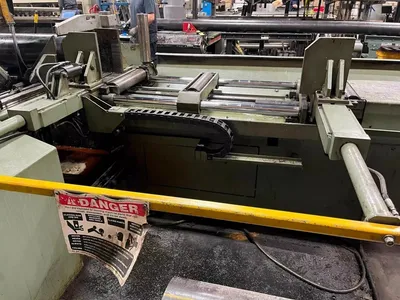

Shuttle Stroke: 0-40″ Single Stroke.

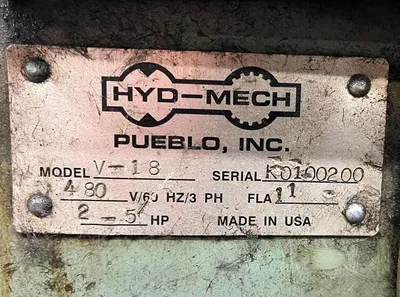

Electrical: 460V/3PH.
