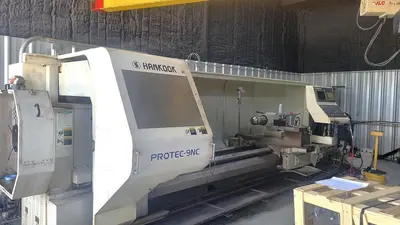

2006 HANKOOK Protec 9NC X 4000 WITH 10" Bar Capacity, 160" Centers, (2)- 25" Manual Chucks, FANUC 21iTB Run Time Hours 6,069
Have one to sell?
ConditionUsed
1 available
2006 HANKOOK Protec 9NC X 4000 WITH 10" Bar Capacity, 160" Centers, (2)- 25" Manual Chucks, FANUC 21iTB Run Time Hours 6,069
Hankook Machine Tools Co., Ltd., established in 1969 in South Korea, is a manufacturer of high-technology CNC metalworking machine tools, specializing in CNC lathes and vertical boring mills. The company has a history of innovation and quality control, contributing to the competitiveness of the engineering industry. Hankook Machine Tools has grown from a joint venture with Dainichi Kinzoku Kogyo Co. Ltd. of Japan to an independent entity with a global presence.
Hankook Machine Tools Co Ltd is a specialist manufacturer of high-technology CNC metalworking machine tools steeped in history and located in Changwon, Korea. The company currently employs 150 people and supplies its highly-reputable products to over 70 countries worldwide.
10" Spindle Bore/Bar Capacity
Chip Conveyor

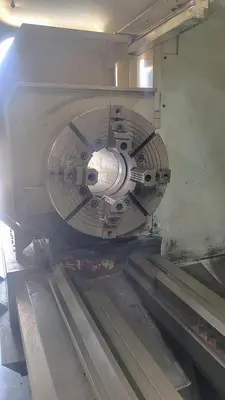

25" 4 Jaw Manual Chuck on Front

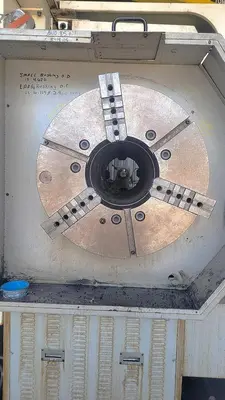

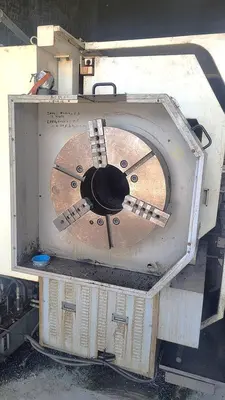

25" 3 Jaw Manual Chuck on Rear

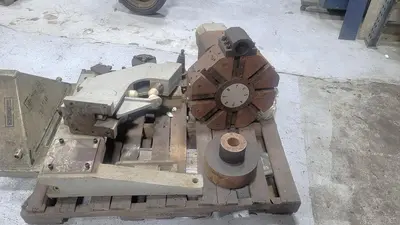

8 Station Turret that Mounts on Cross Slide

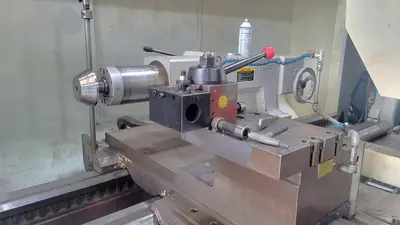

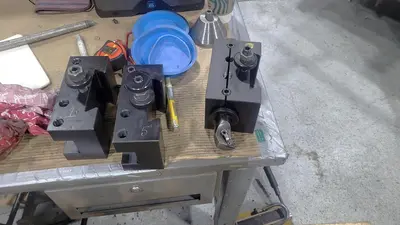

Dorian Tool Post Mounted on Cross Slide

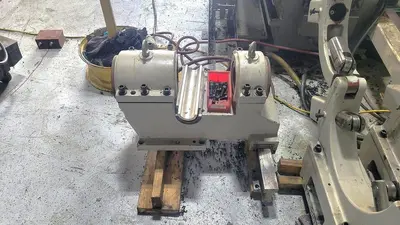

Heavy Duty Tailstock

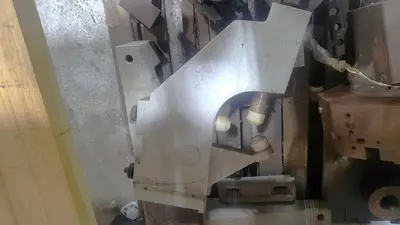

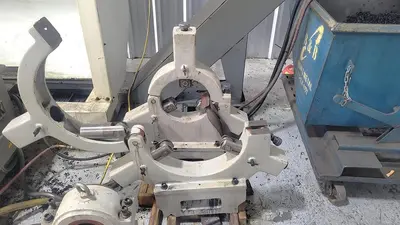

(2) Roller Type Steady Rests
(1) Follower Rest

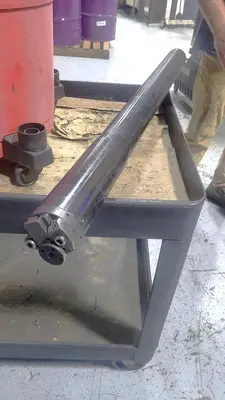

Long Boring Bar Attachment
Remote Jog Handle

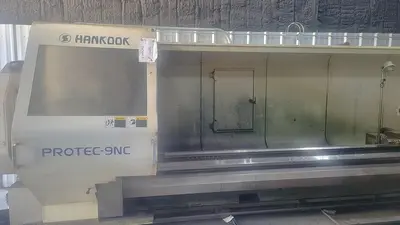

Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
Hard Disk Interface
RS 232 Port Interface

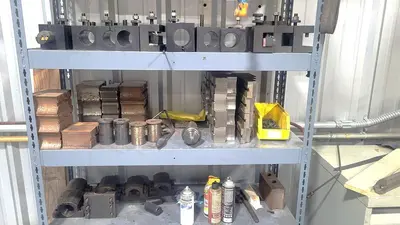

All Available Tooling
All Available Manuals
Manufacturer Hankook
Model Protec 9NC
Year 2006
Condition Used
Stock Number 120051
Location Texas

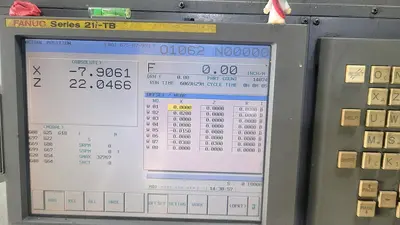

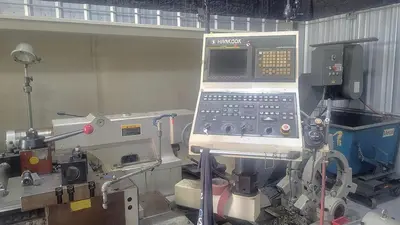

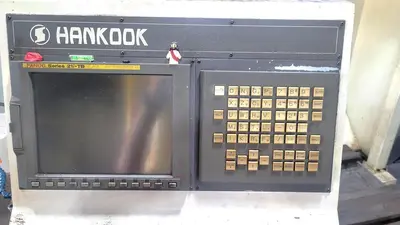

Machine Control Fanuc 21i-TB Control
Chuck Size (2) 25" Manual Chucks on Front & Rear
Maximum Swing 37.43"
Maximum Turning Diameter 37.43"
Maximum Swing Over Cross Slide 24.8"
Maximum Turning Length 151"
Distance Between Centers 157.6"
Maximum Bar Capacity 10"
Maximum Load Between Centers 11,000 lbs.
X-axis travel 21.1"
Z-Axis Travel 151"
Spindle Nose / Spindle Bore A2-15" / 10"
Spindle Speed 3 - 630 RPM
Spindle Motor 35 HP - 2 Speed
Number of Turret Positions Tool Post
Rapid Traverse Rates X / Z 157.6 IPM / 236 IPM
Tailstock Quill Travel / Quill Diameter 9.85" / MT #6
Machine Dimensions LxWxH 255" x 87" x 73"
Machine Weight 20,200 lbs
