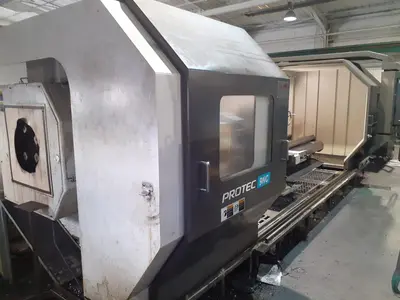

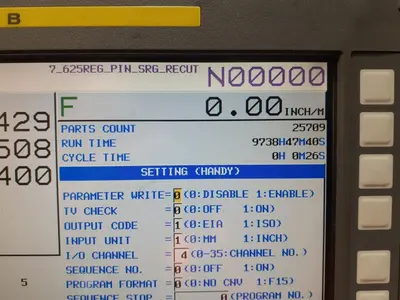

2013 HANKOOK Protec 9NC X 3000 WITH 10" Bar Capacity, 120" Centers, (2)- 25" Manual Chucks, FANUC 32iTB Run Time Hours 9,738
Have one to sell?
$139,500.00 USD
ConditionUsed
1 available
2013 HANKOOK Protec 9NC X 3000 WITH 10" Bar Capacity, 120" Centers, (2)- 25" Manual Chucks, FANUC 32iTB Run Time Hours 9738
Hankook Machine Tools Co., Ltd., established in 1969 in South Korea, is a manufacturer of high-technology CNC metalworking machine tools, specializing in CNC lathes and vertical boring mills. The company has a history of innovation and quality control, contributing to the competitiveness of the engineering industry. Hankook Machine Tools has grown from a joint venture with Dainichi Kinzoku Kogyo Co. Ltd. of Japan to an independent entity with a global presence.
Hankook Machine Tools Co Ltd is a specialist manufacturer of high-technology CNC metalworking machine tools steeped in history and located in Changwon, Korea. The company currently employs 150 people and supplies its highly-reputable products to over 70 countries worldwide.
10" Spindle Bore/Bar Capacity

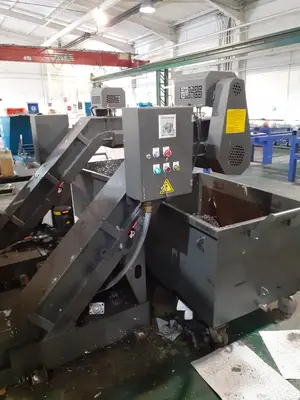

Twin Chip Conveyor

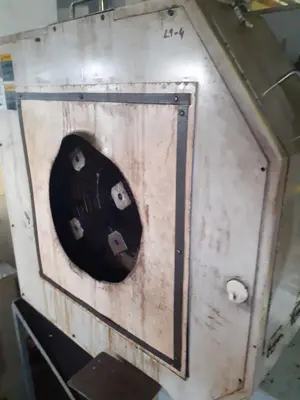

25" 4 Jaw Manual Chuck on Front
25" 4 Jaw Manual Chuck on Rear

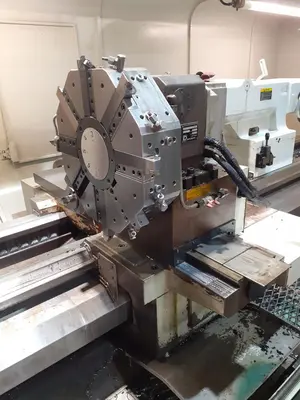

8 Station Turret that Mounts on Cross Slide
Dorian Tool Post Mounted on Cross Slide
Heavy Duty Tailstock

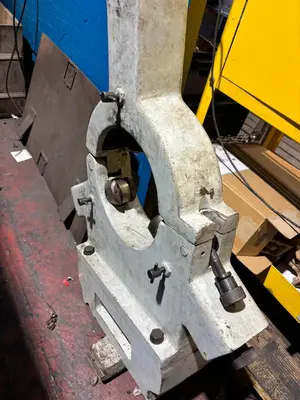

(1) Fixed Steady Rest
Remote Jog Handle
Enclosed with Slide Doors
Work Light
Coolant System with Tank & Pump
All Available Tooling
All Available Manuals
Manufacturer Hankook
Model Protec 9NC
Year 2013
Condition Used
Stock Number 120051
Location United Kingdom

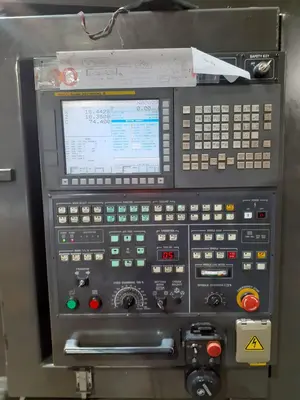

Machine Control Fanuc 21i-TB Control
Chuck Size (2) 25" 4-Jaw Manual Chucks on Front & Rear
Maximum Swing 37.43"
Maximum Turning Diameter 37.43"
Maximum Swing Over Cross Slide 24.8"
Maximum Turning Length 151"
Distance Between Centers 157.6"
Maximum Bar Capacity 10"
Maximum Load Between Centers 11,000 lbs.
X-axis travel 21.1"
Z-Axis Travel 151"
Spindle Nose / Spindle Bore A2-15" / 10"
Spindle Speed 3 - 630 RPM
Spindle Motor 35 HP - 2 Speed
Number of Turret Positions Tool Post
Rapid Traverse Rates X / Z 157.6 IPM / 236 IPM
Tailstock Quill Travel / Quill Diameter 9.85" / MT #6
Machine Dimensions LxWxH 255" x 87" x 73"
Machine Weight 20,200 lbs
