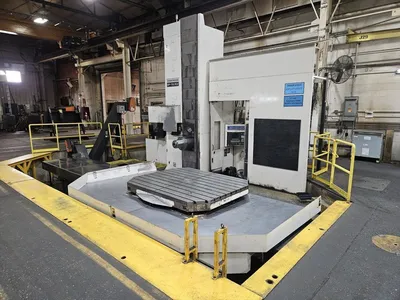

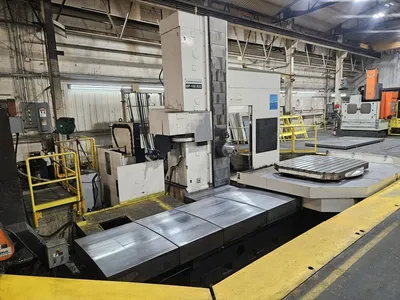

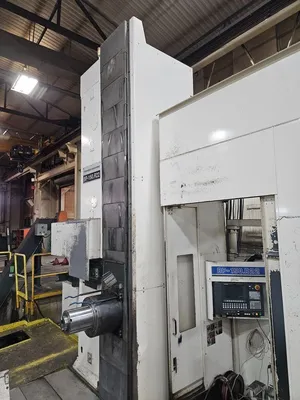

2013 TOSHIBA MDL BP-150,R22 4 Axix CNC Table Type Horiz. Boring Mill, Travels:160" X, 120" Y 60", W 28"
Have one to sell?
$369,500.00 USD
ConditionNew
1 available
New
2013 TOSHIBA MDL BP-150,R22 4 Axix CNC Table Type Horiz. Boring Mill, Travels:160" X, 120" Y 60", W 28"
Toshiba Machine, now known as Shibaura Machine, has a long history rooted in Japan's industrial development. It began as a division of Shibaura Engineering Works Co., which was established in 1875. In 1938, this division was spun off and became Shibaura Machine Tool Co., Ltd., later becoming Toshiba Machine Co., Ltd. In 2020, the company reverted to its original name, Shibaura Machine Co., Ltd.
EQUIPPED WITH:

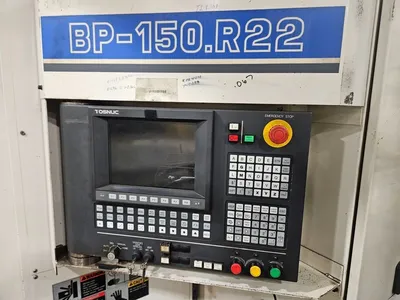

TOSNUC 999 4-Axis CNC Control
Built-In B-Axis Rotary Table

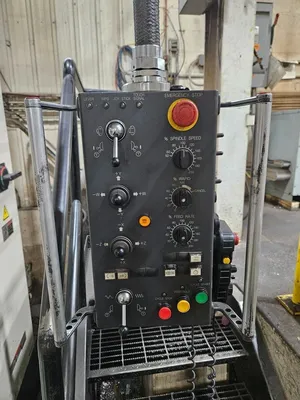

Full Pendant for Manual Operation
Thru-Spindle Coolant
Flood Coolant

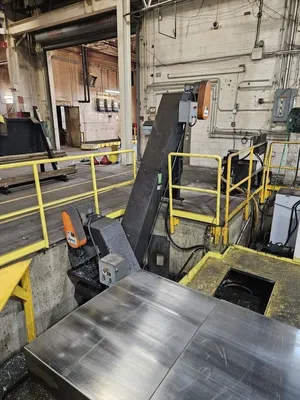

Chip Conveyor
X-Axis: 160"
Y-Axis: 120"
Z-Axis (Column Infeed Travel): 60"
W-Axis (Spindle Travel): 28"
Spindle Diameter: 5.9"
Spindle Taper: CAT 50
Spindle Speed: 5 - 2500 RPM
Spindle Power: 50 HP

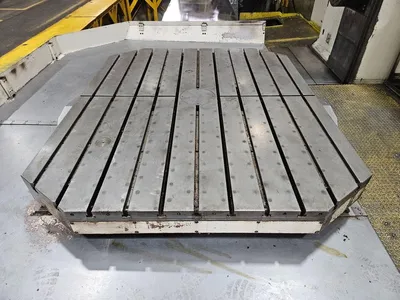

Table Size: 86.6" x 70.8"
Table Capacity: 44,000 lbs
Rapid Traverse (X, Y, Z Axes) 708 IPM
Rapid Traverse (B-Axis) 720°/min
Tool Changer: 60-ATC
