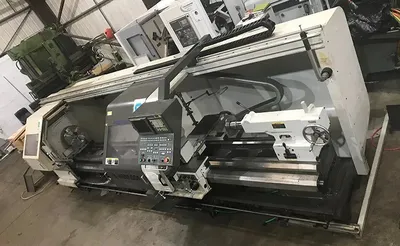

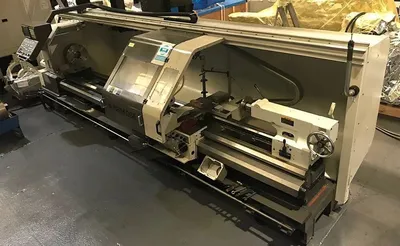

HANKOOK 7NB x 4000 CNC Lathe with FANUC 21T Control
Have one to sell?
ConditionNew
1 available
New
HANKOOK 7NB x 4000 CNC Lathe with FANUC 21T Contro
l• Heavy One-Piece Cast-Iron Bed Construction.
• Heavy Duty Hardened & Ground Solid Slideways.
• 2 Step Gear Change.

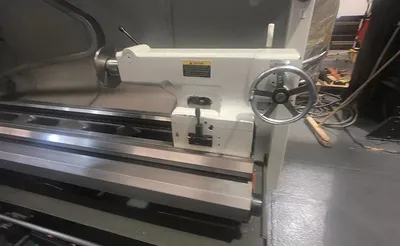

• Heavy Duty Tailstock.
• Short LNS Swarf Conveyor.

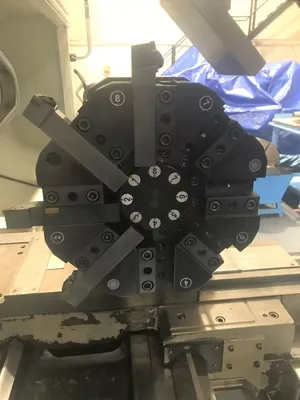

• V8 Automatic Turret.

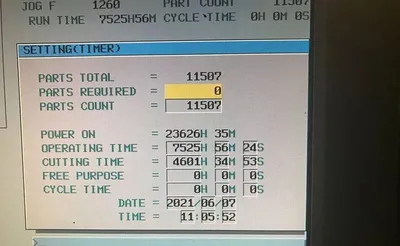

• Fanuc 21it CNC Control with Manual Guide-I & Colour Screen.
• Removable tool Setting Arm
ACCESSORIES & EQUIPMENT

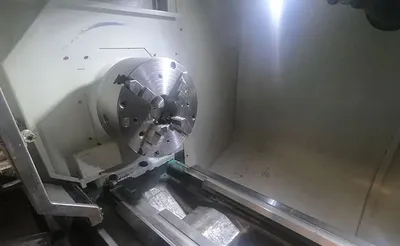

• Modified Guarding For Long Boring Bar • 20” 4-Jaw Manual Chuck
• Steady Rest 50 ~ 250 MM • Steady Rest 250 ~ 450 MM

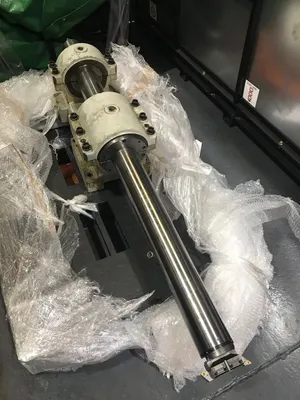

• Algra Automatic 8 Station Turret • Boring Bar Attachment 100 MM Diameter
• 60 MM Diameter Boring Bar Toolholder (1 Off) • Inch Metric Conversion
• Custom Macro B • Additional Block Skip
• G Code System B/C • Programmable Data Input
• Actual Spindle Speed Output • Tool Offsets 32 Pairs
• Extended Part Program Edit • Manual Guide I
• External I/O Device Control • External Data Input
• High Skip
PLEASE NOTE: The information contained herein is provided in good faith based upon the information available to
us however due to unforeseen errors and/or omissions cannot be binding as to accuracy.
MACHINE CAPACITIES
Swing Over the Bed Ø 750 MM
Swing Over the Carriage Ø 480 MM
Maximum Turning Diameter Ø 750 MM
Distance Between Centres 4,000 MM
Load Capacity Between Centres 3,000 KGS
SPINDLE
Spindle Bore Ø 176 MM
Spindle Nose A2-11”
Spindle Speed 3 ~ 1,000 RPM
Spindle Speed Range MANUAL 2 STEP
Spindle Centre Taper MT#6
CARRIAGE
Type of Tool Post Auto V8 Turret
Tool Size 32 MM²
X-Axis Travel (Cross) 425 MM
Z-Axis Travel (Longitudinal) 3,935 MM
X-Axis Rapid Traverse 3 M / MIN
Z-Axis Rapid Traverse 6 M / MIN
TAILSTOCK
Tailstock Quill Diameter Ø 112 MM
Tailstock Spindle Taper MT#6
Maximum Quill Travel 200 MM
BED
Bed Width 500 MM
Bed Length 5,505 MM
MOTORS
Spindle Motor increased power option (30 Min / Cont.) AC 15.0 / 18.5 KW
X-Axis Servo Motor (Power) 1.2 KW
X-Axis Servo Motor (Torque) 8.0 NM
Z-Axis Servo Motor (Power) 3.0 KW
Z-Axis Servo Motor (Torque) 22.0 NM
SIZE & WEIGHT
Length (Excluding Conveyor) 5,805 MM
Width 1,705 MM
Height 1,985 MM
Weight 5,520 KGS
