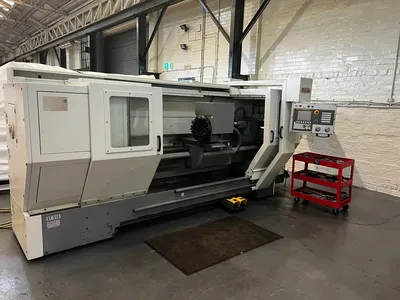

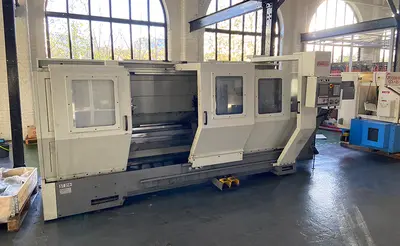

PINACHO Model ST 310 105 X 2000 3 Axis Fat Bed CNC Lathe with C Axis & Driven Tools
Have one to sell?
ConditionUsed
1 available
PINACHO Model ST 310 105 X 2000 3 Axis Fat Bed CNC Lathe with C Axis & Driven Tools
FLAT BED CNC LATHE WITH C-AXIS & DRIVEN TOOLS, HARDENED AND GROUND SLIDEWAYS, FULL CE GUARDING SYSTEM
The ST is Pinacho’s most sophisticated numerical control lathe, with great rigidity and working precision. Developed with components of the highest quality and manufactured under strict and demanding control standards. ST parallel lathes incorporate the most advanced technology developed from experience provided by more than 70 years of history.
Our CNC flatbed lathes are silent, easy to use machines, with a headstock composed of a servo-motor and direct transmission to the main axis, providing a high speed of rotation and an excellent quality surface finish on the component.
The Pinacho ST are lathes with up to 3 axes that provide an extraordinary versatility in the world of machine tools
ONE PIECE CAST IRON BED CONSTRUCTION
HARDENED & GROUND SOLID SLIDEWAYS
12 STATION AUTOMATIC DRIVEN TOOL TURRET
MANUAL TAILSTOCK
FANUC 0ITF CONTROL WITH MGI
SELECTION OF TOOLING INCLUDING 4 OFF DRIVEN TOOL HEADS
CHIP CONVEYOR
Fanuc Oi-TF Control
Dynamic graphics / trajectory
Profile Editor
Electronic handwheel for X and Z axes
Direct drive headstock with servomotor
Reducing bush of main shaft and dead centers
Automatic lubrication of the guideways
Refrigeration equipment
Cast iron pedestals
Precision Levellers
Work light
Instruction manual
Verification standard DIN 8605
CE Standard
Centre Height 310 MM
Swing Over The Bed Ø 620 MM
Swing Over The Carriage Ø 540 MM
Distance Between Centres 2,000 MM

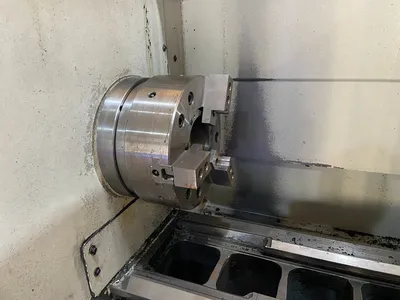

Spindle Bore Ø 105 MM
Spindle Nose A2-8
Spindle Speeds Max. 2,500 RPM
Spindle Centre Taper (Bore 105 MM) 5MT

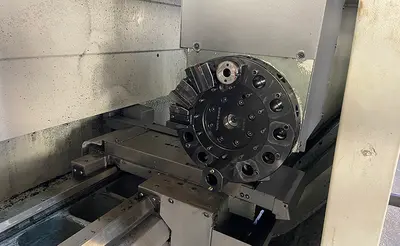

Turret AUTO V12 VDI30 WITH LIVE TOOLS
Number Of Turret Stations 8
Driven Tools Speed 3,000 RPM
Std. Tool Size (Tool Shank / Boring Bar) 25 / 40 MM
Working Feedrate (X & Z) 0 TO 7,500 MM/MIN
X-Axis Rapid Traverse 15 M / MIN
Z-Axis Rapid Traverse 12 M / MIN
X-Axis Ballscrew Diameter 20 MM
Z-Axis Ballscrew Diameter 40 MM
Tailstock Quill Diameter 95 MM
Tailstock Spindle Taper 5MT
Maximum Quill Travel 220 MM
Main Spindle Motor 15.0 KW
Pump Motor 0.37 KW
Length 3,920 MM
Width 1,605 MM
Height 2,014 MM
Weight 3,010 KGS
