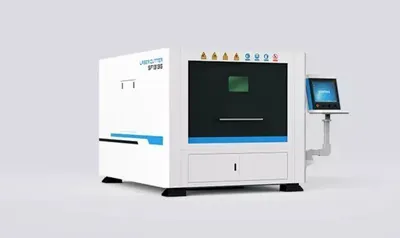

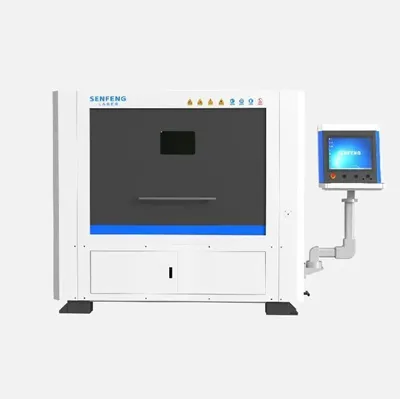

SENFENG Compact-sized Single Platform Laser Cutter
In spite of single platform, 1313G is designed as fully-enclosed and covers an area of only 6.5m2. It is mainly used for cutting small, thin or light-weight sheet. Therefore, start-ups with small workshop or businesses highly demanding on cutting precision are its target customers.
SENFENG, an industry leader of fiber laser machines, is dedicated to providing innovative and quality metal fabrication solutions worldwide. We have grown into an innovation-driven manufacturer from 2004 to 2024.
➤ Work area: 1300*1300mm
➤ 2 Year limited warranty
➤ Fully enclosed structure
➤ Suitable for small metal sheets (1.5-3kW available)
➤ Passed CE, ROHS, FDA, meeting European and American standards
Partitioned Smoke Removal System
Pull-out Worbench convient for loading and unloading
Full-featured CNC Control System
❖Friendly operation interface and there is a text display of the error report
❖Automatic selection of auxiliary gas type and gas pressure
❖Perforation control system
❖Direct pulse power modulation of lasers
❖Breakpoint return function
❖Support movement obstacle avoidance and leapfrog intelligent judgment
❖Z-axis automatic adjustment program and follow-up control to eliminate the influence of unevenness of the plate
Materials can be cut:
Stainless Steel √
Carbon Steel √
Aluminum √
Brass √
Galvanized Sheet √
Titanium Alloy √
Electrolytic Sheet √
Laser Power: 1.5kW-3kW Choice of
Max size of sheet: 1300*1300mm (51" x 51")
Max thickness of CS sheet: 16mm (o.625")
Positioning Accuracy: +/- 0.05mm (0.00196")
Max weight of sheet: 220kg (484 lbs.)
