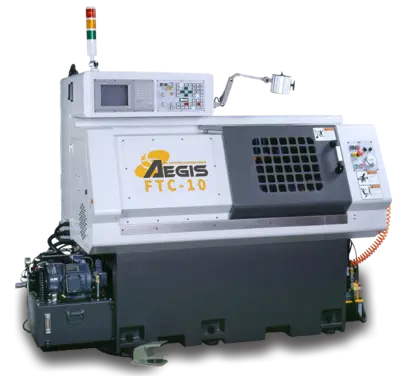

2025 AEGIS Model FTC-10GS CNC Lathe with Gear Power Skiving Funstion, 5" Swing over Bed, 4.72" Turn Dia.
Have one to sell?
ConditionNew
1 available
New
2025 AEGIS Model FTC-10GS CNC Lathe with Gear Power Skiving Funstion, 5" Swing over Bed, 4.72" Turn Dia.

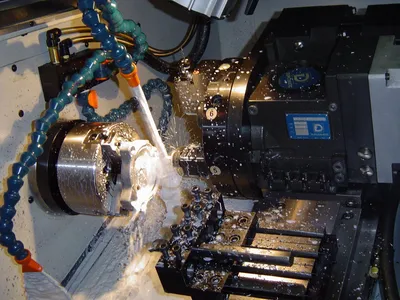

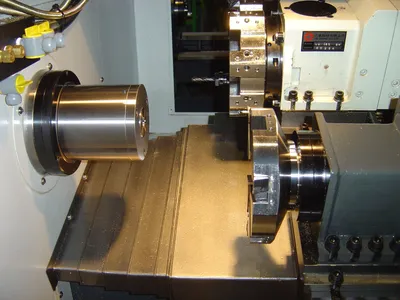

Combining the servo turret and gear skiving funstion, the patented design for the direct-connected power gear skiving function cn easily combine turning and gear skiving processes., eliminating the need for process transfer and greatly increases productivity.
High rigidity structure! High precision and stability!

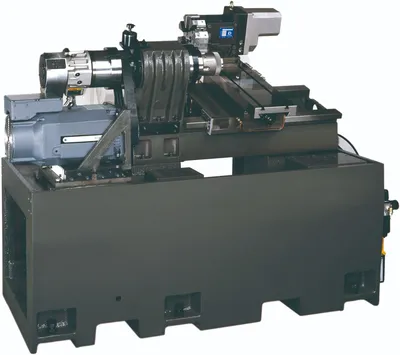

Precise and solid machine structure design, with support, each part casting is made of high-quality cast iron, the slide rail is hardened and precisely ground, and the slide seat is made of SK3 alloy steel to ensure the machine life and precision.
Adopt high-precision C1/C3 (X/Z axis) ball screw, pre-tension assembly, and cooperate with high-precision bearing pre-compression assembly to provide high-precision repeatability and positioning accuracy.
The 15- degree inclined bed design can effectively reduce the force and screw backlash caused by X- axis movement, ensuring processing accuracy
Japanese FANUC controller system

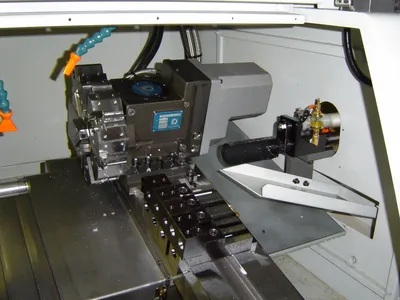

Eight-position servo turret
Separate water tank
Heat exchanger for electric control box
Four boring tool blocks
Inner diameter tool holder Dia.8, 10, 12, 16 mm each one
West German 42 type elastic collet system
Chuck foot switch
Toolbox
Quartz work light
Warning light
Hydraulic unit
Cutting fluid system
Fully enclosed sheet metal

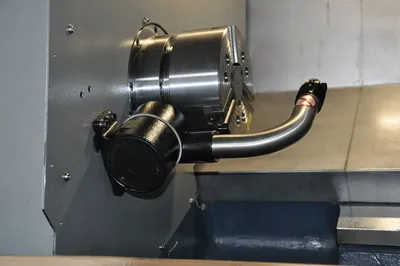

Hollow rotary hydraulic cylinder
Central automatic lubrication system
Leveling block and screws
Mechanical, electrical, operating instructions
OPTIONAL ACCESSORIES
Polygonal machining spindle
Comb tool system
Oil mist collector
Workpiece receiver
Finished product conveyor belt
Chip conveyor
Automatic feeder
Automatic feeder interface
Track type automatic feeding unit
Power turret
Spindle C-axis control function
Hydraulic three-jaw chuck
Soft claws, hard claws
Tool measuring system
High speed pneumatic power tool system
Hydraulic power tool system
Model unit FTC-10
Maximum rotation diameter of the bed mm 250
Maximum swivel diameter of bed saddle mm 120
Center distance mm N/A
Standard processing diameter mm 90
Maximum turning length mm 120
bed angle 15 Degrees
Spindle motor AC 7.5KW/10 HP
Maximum spindle speed RPM 100~5000
Spindle nose type ISO A2-5
Spindle through hole diameter mm 52
Allowable rod diameter mm 42
Spindle front bearing diameter mm 70
Chuck specifications 6"(F-48C) inch
Tailstock spindle taper MT N/A
Tailstock spindle diameter mm N/A
Tailstock turning stroke mm N/A
Tailstock stroke mm N/A
X-axis travel mm 250
Z-axis travel mm 250
Z-axis rapid feed m/min 15
Z-axis rapid feed m/min 15
Minimum input unit mm 0.001
Shank size mm 20
Maximum size of boring tool mm 20
Number of turret tools 8 station turret & Gang
Tool change time sec 1.1
Cutting fluid motor HP 1/2
Mechanical Dimensions mm³ 2000*1350*1650
Area mm² 2500*3000
Packing size mm³ 2640*1600*2250
Machine Net Weight kg 2150
Mechanical gross weight kg 2400
