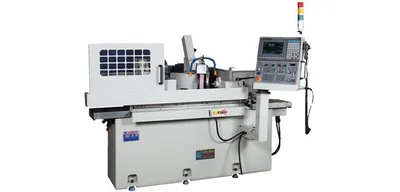

WILLIS LJ37-1000 14" Swing, 39" Center Distance, Manual Wheelhead Infeed, 7.5 HP Motor, Includes combination magnetic separator/paper filter coolant system
Have one to sell?
ConditionNew
1 available
New
WILLIS LJ37-1000 14" Swing, 39" Center Distance, Manual Wheelhead Infeed, 7.5 HP Motor, Includes combination magnetic separator/paper filter coolant system
LIH JAAN Precision Machinery Co., Ltd was established in 1984, with in grinder, and keep innovating in different field of grinding industry.
Uphold the continuous R&D, innovation, and the spirit of excellence towards high-quality, high-precision, high-efficiency business philosophy to provide customers with higher quality, higher precision, higher efficiency services.
Ideal for mass production and complex-shaped grinding of industrial parts, pneumatic components, and automation parts.
Standard Accessories :
1. Grinding wheel & Flange 1Set.
2. Wheel dressing attachment 1Set.
3. Wheel balance arbor 1Set.
4. Carbide Tipped Center 2Pcs.
5. X Axis Optical Scale+DRO (MIT) 1Pc.
6. Two Point Steady Rest (1000) 2Pcs.
7. Coolant Splash Guard 1Set.
8. Tool box 1Set.
Optional Accessories
Spare wheel flange $ 600
Manual wheel balancing base $990
Portable wheel balancing system $4,950
Additional paper filter rolls for coolant system $190
Internal Grinding Attachment POR
Two Point Steady Rest (2 are standard) POR
3 jaw chucks POR
Working Capacity
Max Length 1000mm
Max Diameter 350mm
Max Weight 150kg
Center Height 185mm
Grinding Wheel Size φ405×25~75×φ127
Grinding Wheel Speed (infinitely variable) 1,500RPM / 1,700RPM
Main Spindle (infinitely variable) 40~360RPM
Main Spindle Taper MT#4
Spindle Swing Angle ±45°
Tailstock Quill Taper MT#4
Tailstock Quill Stroke 30mm
Worktable Speed 0~5000mm/min
Worktable Swing Angle 3° 1°
Power : Grinding Wheel Motor+Inverter 7.5HP
Main Spindle+Inverter 1/2HP
Hydraulic Pump Motor 2HP
Cooling Pump 1/4HP
Lubricant Motor 1/2HP
