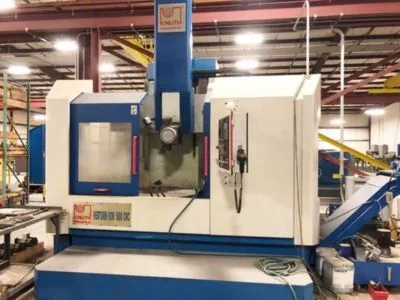

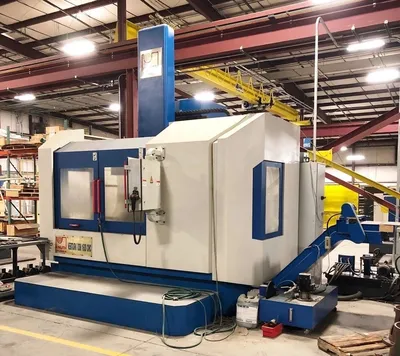

2015 KNUTH VERTURN VDM 1600 CNC, 55" Chuck/Table 63" Swing. 47" Max Height, 4 Position Turret, Siemens 828 SL CNC
Have one to sell?
ConditionNew
1 available
New
2015 KNUTH VERTURN VDM 1600 CNC, 55" Chuck/Table 63" Swing. 47" Max Height, 4 Position Turret, Siemens 828 SL CNC
Siemens 828 D SL CNC , electronic handwheel, 4-jaw face chuck, automatic 4-station tool changer, coolant systemhydraulic unit, lighting,
4 Position ATC
4-step precision gears and infinitely variable 60 HP motor for high torque (up to 29,500 ft/lbs.) across entire speed range
Turning Dia: 63"
Machining Height: 47"
X Axis Travel: 40"
Z Axis Travel: 31"
W Axis Travel: 33"
Work Piece Weight (max): 11,000 lbs
Headstock
Speed Range: .5 - 200 RPM
Torque Max: 23,600 ft lb

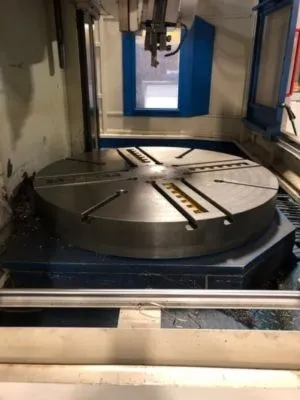

Lathe Chuck Dia: 55"
Feed
Rapid Feed X axis: 236 IPM
Rapid Feed Z axis: 236 IPM
Feed W axis: 17 IPM

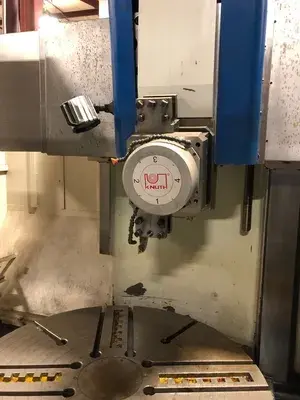

Automatic Tool Changer 4 Position
Tool Change Time: 10S
Tool Weight: 55 lbs
Main Motor Drive: 60 HP
