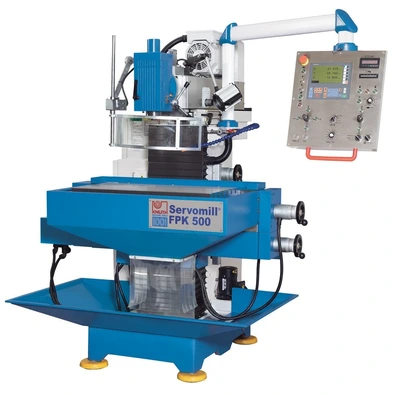

KNUTH Model Servomill FPK 500
This versatile tool and milling machine has become indispensable in the mechanical manufacturing of tools and molds. Its compact design offers a great deal of flexibility while being very easy to operate. This has proven highly effective and is given a modern interpretation here. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill makes the advantages of CNC large-scale technology accessible even without programming. The machines are mainly used in toolmaking, production and training.
Servo feed technology with electronic handwheels
Ball screws in all axes
3-fold electronic stop
Large vertical console and work table
Vertical and horizontal spindle
Infinitely variable spindle speed
control panel with X.Pos 3.2 and extended functions
preloaded ball screws and direct servo drives on all axes
automatic feed with electric limit switch on all axes
electronic hand-wheels
milling accessories
automatic central lubrication
heat exchanger for electric control cabinet
height-adjustable protective cover
coolant System
LED worklight
Operator instructions
Optional Equipment
Universal Swivel Table
Working Area
Table dimensions 31 in x 16 in
Vertical table 40 in x 9 in
Table load capacity (max.) 440 lbs
Number of T-slots 6 positions
T-slot (width x spacing) 0.55 in x 2.48 in
T-slots, vertical table (number) 3 positions
T-slots, vertical table (width x spacing) 0.55 in x 2.48 in
Travels
Travel X-axis 19.7 in
Travel Y-axis 16 in
Travel Z-axis 16 in
Milling Head
Speed range, low 40 rpm - 260 rpm
Speed range, high 260 rpm - 2000 rpm
Spindle speed 40 rpm - 2000 rpm
Spindle mount SK 40 DIN 2080
Swivel angle 90 deg
Travel pinole 2 in
Spindle nose-to-table distance 2 in - 18 in
Spindle nose-to-column distance 7 in - 22 in
Rapid Feed
Rapid feed X-axis 47.24 in/min
Rapid feed Y-axis 47.24 in/min
Rapid feed Z-axis 47.24 in/min
Horizontal Milling Spindle
Spindle mount SK 40 DIN 2080
Spindle center-to-table distance 6 in - 21 in
Feed
Work feed X-axis 0.394 in/min - 39.37 in/min
Work feed Y-axis 0.394 in/min - 39.37 in/min
Work feed Z-axis 0.394 in/min - 39.37 in/min
Drive Capacity
Motor rating main drive 5 Hp
Motor rating coolant pump 0.2 Hp
Feed X-axis 6 ft.lb.
Feed Y-axis 6 ft.lb.
Feed Z-axis 7 ft.lb.
Measures and Weights
Overall dimensions (length x width x height) 60 in x 67 in x 71 in
Weight 3410 lbs
Models
Servomill® FPK 600
Servomill® FPK 500
Table dimensions
33 in x 18 in
31 in x 16 in
Travel X-axis
23.6 in
19.7 in
Travel Y-axis
18 in
16 in
Travel Z-axis
18 in
16 in
Spindle speed
40 rpm - 2000 rpm
40 rpm - 2000 rpm
Spindle mount
SK 40 DIN 2080
SK 40 DIN 2080
Motor rating main drive
7.4 Hp
5 Hp
Overall dimensions (length x width x height)
63 in x 71 in x 79 in
60 in x 67 in x 71 in
Weight
3850 lbs
3410 lbs
