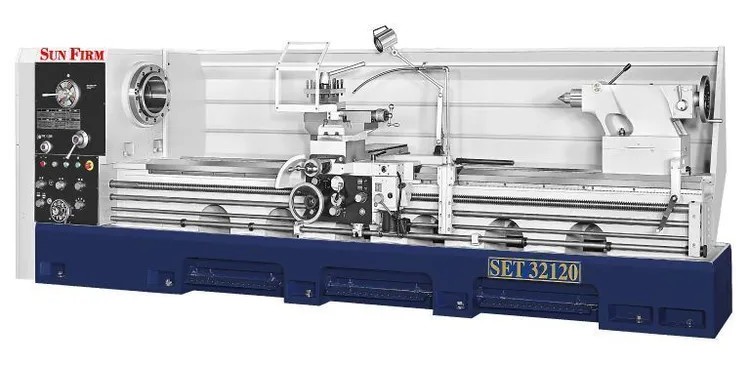

2025 SUN FIRM Model SET 32 Engine Lathe, In stock distance between centers, x80, x120, x160

Capacity
Swing Over Bed 830 mm (32") 930 mm (36")
Swing Over Cross Slide 600 mm (23") 700 mm (27-1/2")
Swing in Gap 1100 mm (44") 1200 mm (47")
Width of Gap
Distance Between Centers (80") (120") (160")
Spindle Bore 4.13" / * 153 mm, 230 mm (OPT)
Spindle Nose A2-8 / *A2-11, D1-11, A2-15 (OPT)
Taper of Center M.T. No. 5 / * M.T. No. 6
Range of Spindle Speeds 15-1000 /*10-700 RPM
Number of Spindle Speeds 12 Changes
Feeds & Threads Cutting
Longitudinal Feeds 0.05-0.7 mm/rev
Cross Feeds 0.025-0.35 mm/rev
Inch Threads 2-28 Thread/in, (D.P. 4-56)
Metric Threads 0.8-14 mm / Thread, (M.P. 0.5-7)
Leadscrew Ø 45 mm (1-3/4") x 2 T.P.I. / * P 12 mm (OPT)
Carriage
Cross Slide Travel 425 mm (16-1/2")
Compound Rest Travel 250 mm (10")
Tailstock
Quill Diameter 95 mm (3-3/4") / * 105 mm (4-1/8")
Quill Travel 230 mm (9")
Taper of Quill Center M.T. No.5 / * M.T. No.6
Bed One-piece machine bed which is most suitable for heavy duty machining
Width of Bed 460 mm (18-1/8")
Length of Bed (120") (140") (180") (219")
Main Motor 15HPx4P / * 20HPx4P
Weight (Approx) 14,520 lbs 1 6,280 lbs.
Packing Size
(Lx Wx H) 196" x 62.99" x 74.80" 236" x 62.99" x 74.80"
