DOOSAN PUMA Model V8300 Vertical Turret Lathe, 24" Chuck, Max Turning Diameter 32.7", Turning Ht. 29.5"
Have one to sell?
ConditionUsed
1 available
DOOSAN PUMA Model V8300 Vertical Turret Lathe, 24" Chuck, Max Turning Diameter 32.7", Turning Ht. 29.5"

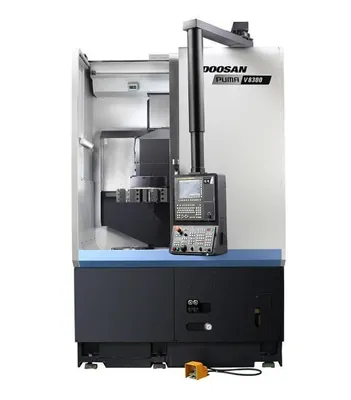

PUMA V Series
Multiply your cutting power and minimize your floorspace with the PUMA V series turning center. Utilizing a cartridge style spindle and a tightly-coupled bearing assembly, the PUMA V centers are expertly adept at handling heavy workpieces and controlling thermal stability in long run operations. Featuring a cast iron Meehanite bed and box type column casting, these machines remain stable even under the most intense cutting conditions.
Control Fanuc Oi-Plus
Travel X Axis – 19.5 in
Travel Z Axis – 31 in
Rapid Traverse X Axis 787 in/min
Rapid Traverse Z Axis 787 in/min
Spindle Speed – 2,000 rpm
Spindle Motor – 50 HP
Spindle Torque 1,912 ft-lbs.
Shank – BMT-KEY
Turret Stations – 12 Slot
Boring Bar Diameter – 2.5 in
Max Turing Diameter – 32.7 in
Max Turing Length – 29.5 in
Max Table Load – 1,918 lbs
Spindle to Table Distance – 44.8 in
Machine Dimensions 79"L x 113"W x143"H
Machine Weight 20,720 lbs
24” Chuck
