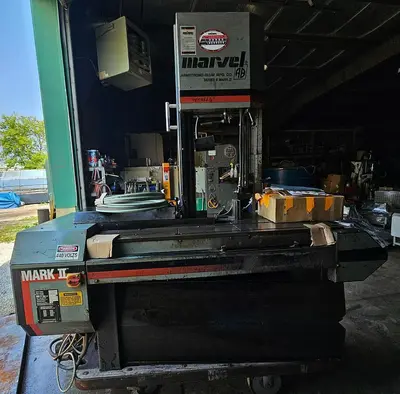

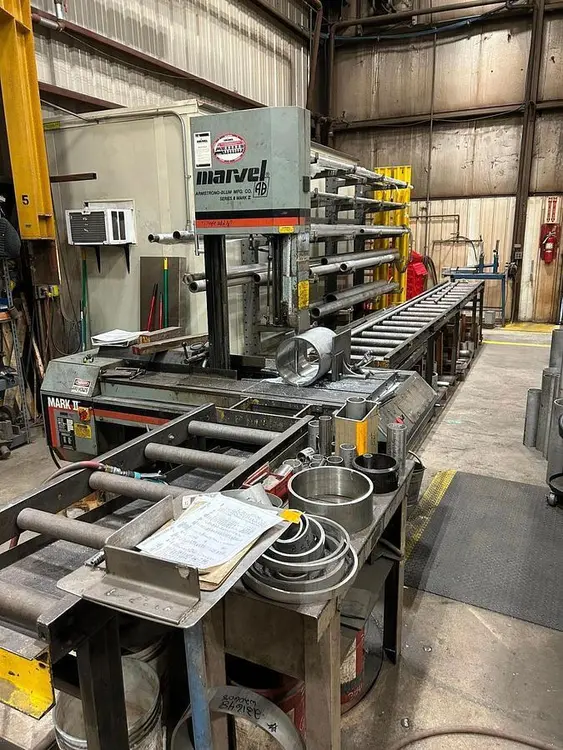

1995 MARVEL Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22"

Marvel Band Saw Series 8 Mark II

New – 1995

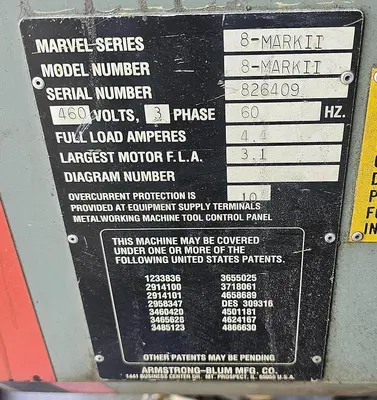

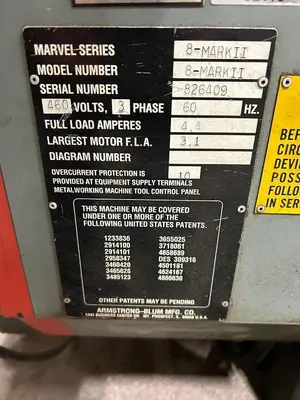

Serial No. 826409

Marvel Band Saw Series 8 Mark II

SPECIFICATIONS:

Nominal Capacity………….............................18″ x 18″

Maximum Capacity………….............................18″ x 22″

Vertical Capacity at 45 Degrees…………..............12-3/4″

Table Working Surface…………........................33″ x 24-1/4″

Height of Table…………..............................34-1/2″

Tee Slots (4)…………................................3/4″

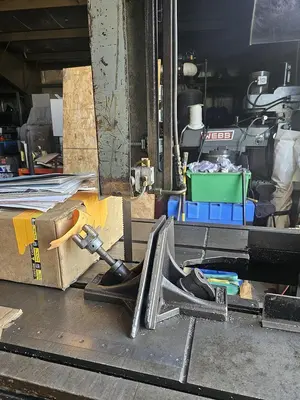

Maximum Open of Vise………….........................20″

Vise Height…………..................................6″

Main Drive…………...................................2 HP, 1,800 RPM

Blade Speed Range…………............................50-450 RPM

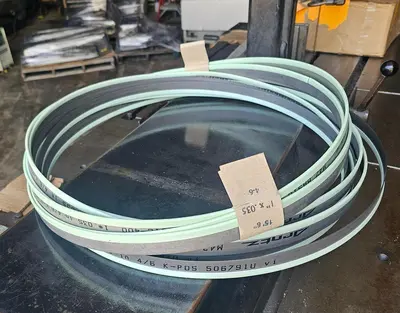

Blade Size…………...................................0.035″ Thick/1″ Wide /14′-6″ Long

Feed Force…………...................................0-140 Lbs.

Coolant System Motor………….........................1/4 HP

Reservoir Capacity…………...........................20 Gal.

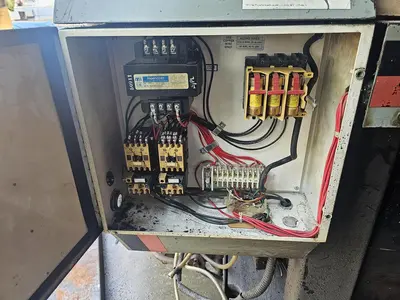

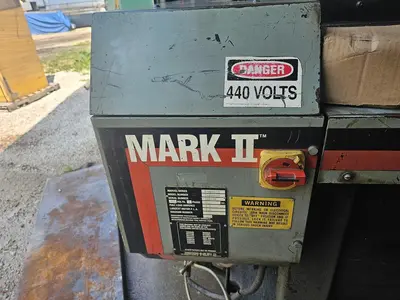

Electrics…………....................................3/60/460

Approximate Dimensions………….......................79″ x 90″ x 85″(H)

Approximate Weight…………...........................2,870 Lbs.
