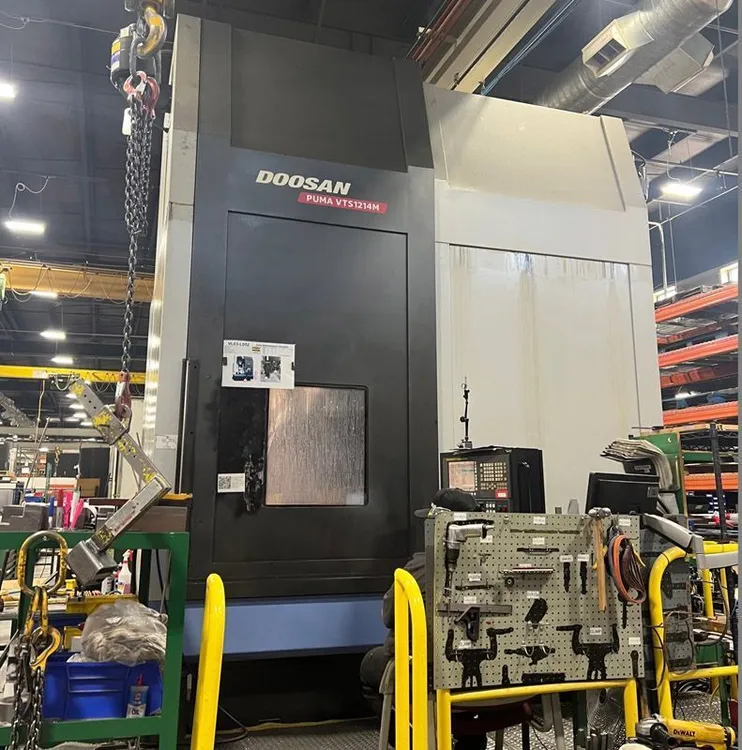

2011 DOOSAN PUMA Vertical Turret Lathe With Milling, Model VTS1214M; Max Turn Dia 53.1"
Have one to sell?
ConditionNew
1 available
New
2011 DOOSAN PUMA Vertical Turret Lathe With Milling, Model VTS1214M; Max Turn Dia 53.1"
The Doosan PUMA VTS1620 is engineered to meet the needs of industries that require high-precision vertical turning capabilities. This CNC machine plays a crucial role in producing components for aerospace, automotive, and heavy machinery sectors. It is optimized for handling a variety of materials, including steel, aluminum, and composites, contributing to its widespread adoption across manufacturing environments.
Equipped With (subject to buyer verification):

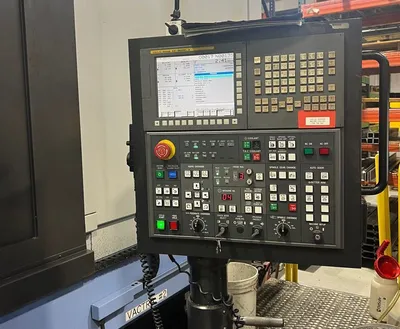

Fanuc Series 32i-Model A
ATC shower coolant

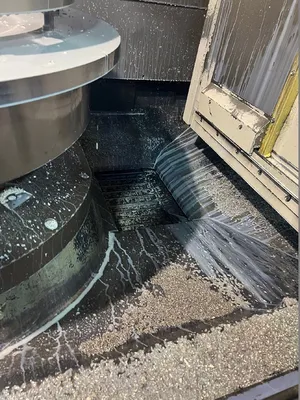

Bed shower coolant
Ram air blast
Ram shower coolant
Splash guard
40” Chuck
Chip Conveyor
Specifications(subject to buyer verification):
Capacity
Swing over bed: 55.1”
Max. Turning diameter: 53.1”
Max. Turning height: 32”
Max. Turning weight: 8818.4 lbs
Travels
X-axis Travel ( To left from table center ) : 6.0”
X-Axis Travel (To right from table center ) : 51.1”
Z-axis travel: 31.5”
C-axis: 360 deg
W-axis Travel: 22.8”
Feedrates
Rapid Traverse Rates
X-axis: 472 IPM
Z-axis: 472 IPM
C-axis: 900 deg/min
Ram
Ram size: 12.1” × 9.8”
Min. through hole inside diameter: 12.6”
Table
Max. Spindle speed: 630 RPM
Table size: 40"
Spindle bearing diameter: 9.4”
Rotary Tool
Max. rotary tool spindle torque: 262
Max. rotary tool spindle speed: 3000 RPM
Rotary tool bearing diameter: 3.9 “
Tool Magazine
Tool storage capacity stations: 15
Motors
Table motor power: 80.5 HP / 73.8 HP / 60.3 HP ( 10min/30min/cont. )
Rotary tool motor power: 24.8 HP / 20.1 HP ( 30min/cont. )
Power Source
Electric power supply (rated capacity ) : 110 kVA
Machine Dimensions: 141.3” x 146.7” x 189.8”
Weight: 57,319 lbs
