Unused 2014 MIGHTY VIPER Model VT-27GL Lathe, 35 HP, 3,500RPM (IN STOCK) 1 yr parts warranty, Box Way Slant Bed
Have one to sell?
ConditionNew
1 available
New
Unused 2014 MIGHTY VIPER Model VT-27GL Lathe, 35 HP, 3,500RPM (IN STOCK) 1 yr parts warranty, Box Way Slant Bed

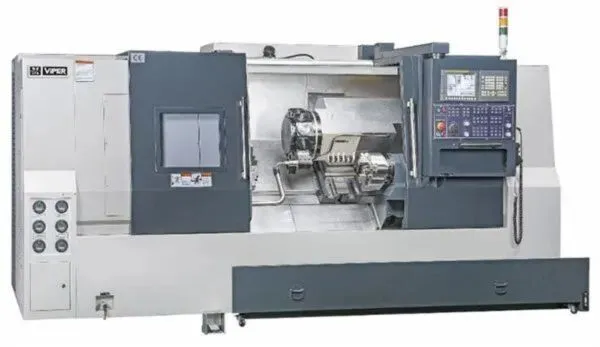

VIPER VT-27G High Precision CNC Turning Center (IN STOCK)
Over 45 years, MIGHTY VIPER has sold more that 25,000 machine tools nationwide.
With: Built-in 0iTF+ Manual Guide I Control, 305mm (12”) 3 Jaws Hydraulic Chuck, Max. Turning Diameter 480mm(18.5”)
VT-27 has a 2-step gear spindle that provides powerful torque. Variable speed range of 1~600 / 600~3500 rpm. Spindle bar capacity is 3.03-inches. Dynamic turret with C-axis (option). 12 Stations Static Turret,
ABOUT MIGHTY
Mighty USA, established in 1981, is an American machine tool company that imports high quality machining centers manufactured to state-of-the-art specifications and built with premium components.
We are a leading machine tool seller and national machining center distributor with corporate headquarters strategically located on the west coast in Southern California.
As a core machinery company, we sell innovative machine tool technologies that help the CNC parts machining industries produce advanced tools and build complex parts.
We support our customers across North America with a network of factory partners and offices in the United States and along the Western Pacific Rim.
Mighty USA has a solid footing in the US with a service staff of over 40 professionals dedicated to providing reliable CNC machining solutions.
PACKAGE PRICE INCLUDES:
0I-TD FANUC CONTROL
12" Chuck
18.5" x 41.3" Dia x Length
3,500 RPM/ 35 HP
3" Bar Capacity
Static Turret 12 Tool
Tool Setter
2 Step Gear Spindle
STANDARD ACCESSORIES
Tool Box with hand Tool
Coolant System and Chip Tray
Coolant Tank Guard
Chip Conveyor
Hard Jaw 1 Set
Work Lamp
Block for Base
Auto Lubrication System
Heat Exchanger for Electrical Cabinet
Fluid Bearing Way System
Foot Switch for Spindle Clamp / Unclamp
Hydraulic Adjustment System
Lubrication Monitoring System
Hydraulic Tailstock & Quill
Machine Specifications
SPECIFICATIONS Unit VT-27GL
CAPACITY Unit Standard
Swing over Z way cover mm(inch) 680 26.8"
Max. turning diameter mm(inch) 470 18.5"
Swing over cross slide mm(inch) 480 8.9"
Max. turning length mm(inch) 1050 41.3"
Slideway slant angle degree 45°
TRAVEL
X-axis travel mm(inch) 240 9.44" + 40 1.57"
Z-axis travel mm(inch) 1090 42.9"
MAIN SPINDLE
Type of spindle nose ISO A2-8
Chuck diameter & type mm(inch) 305 12"
Main spindle bearing inner diameter mm(inch) 130 5.1"
Main through spindle hole diameter mm(inch) 87 3.43"
Main through bar capacity mm(inch) 77 3.03"
Main spindle drive motor(cont/30min) kw(Hp) 26 35HP
Main spindle speed range rpm 100~600, 600~3500
TURRET
Number of tool stations 12
Turret type STATIC
Turret indexing time sec 0.9
Shank height of square tool mm(inch) 25.4 1.0"
Shank diameter for boring bar mm(inch) 50.8 2"
FEEDRATE
Rapid traverse rate X-axis mm/min(ipm) 20,000 787IPM
Rapid traverse rate Z-axis mm/min(ipm) 24,000 945IPM
TAILSTOCK
Tailstock travel mm(inch) 900 35.4"
Tailstock spindle diameter mm(inch) 110 4.3"
Tailstock spindle travel mm(inch) 100 3.9"
Taper hole of tailstock spindle MT-5
REMARKS
Power Requirement 46 KVA 208-220V 3 phase
Coolant pump motor kw(Hp) 0.6 3/4"
Coolant tank capacity L (gal) 345 91)\"
Machine weight Kg (lbs) 8100kgs 17,850lbs
FOB. Houston, TX
100% payment required before machiner ships
Standard Tooling System for VT27
Item No. Description Quantity
33-85212 OD Cutter Mounting Wedge S45C 12
33-85213 OD Cutter Mounting Block 12
33-85215 Spacer for OD Cutter Holder S45C 2
33-85220 Spacer for Boring Bar Holder 12
33-85221 OD Cutter Coolant Nozzle Block 12
33-85203 Boring Bar Holder Ø50mm 1
33-85204 Boring Bar Holder Ø40mm 4
33-85205 Tool Holder Ø25mm 2
33-85250 Drilling Sleeve (MT4) 1
33-85251 Drilling Sleeve (MT3) 1
33-85255 Sleeve Ø32mm 2
33-85256 Sleeve Ø25mm 2
33-85257 Sleeve Ø20mm 2
33-85258 Sleeve Ø16mm 2
33-85259 Sleeve Ø12mm 2
33-85260 Sleeve Ø10mm 2
33-85261 Sleeve Ø8mm 2
