AKYAPAK Single Spindle Beam Drill Line Model Meteor 1200

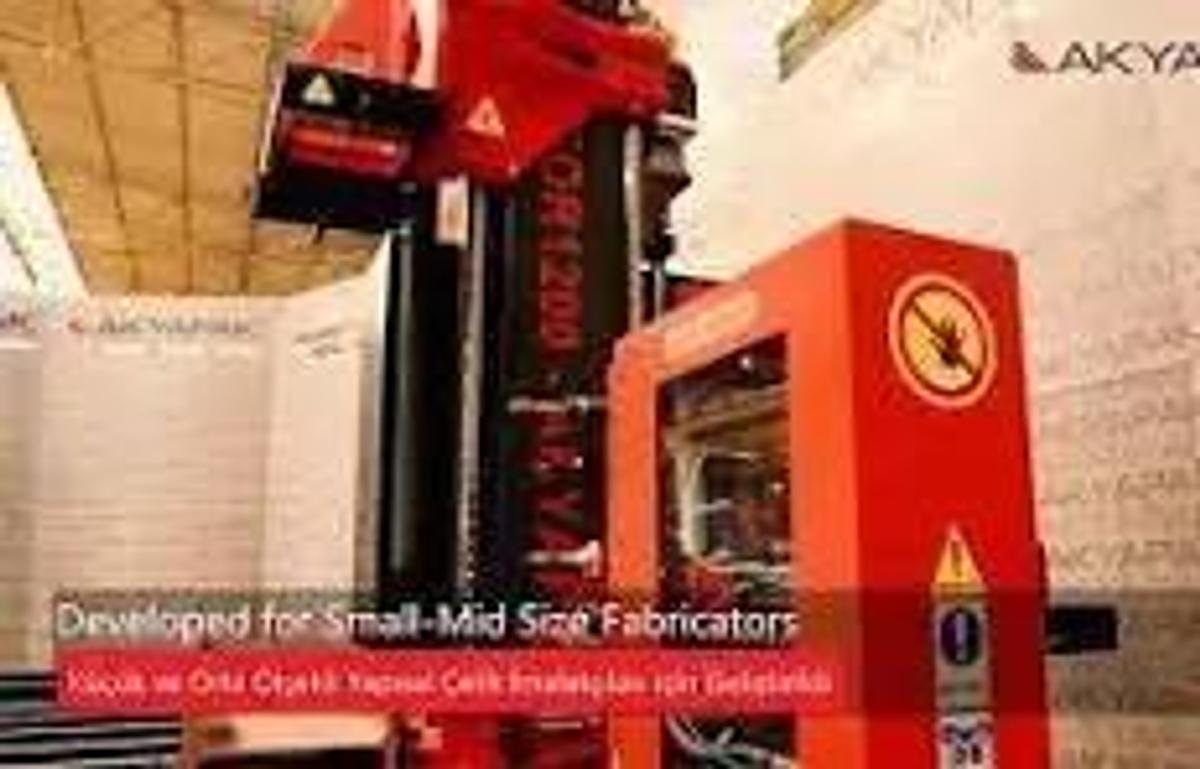

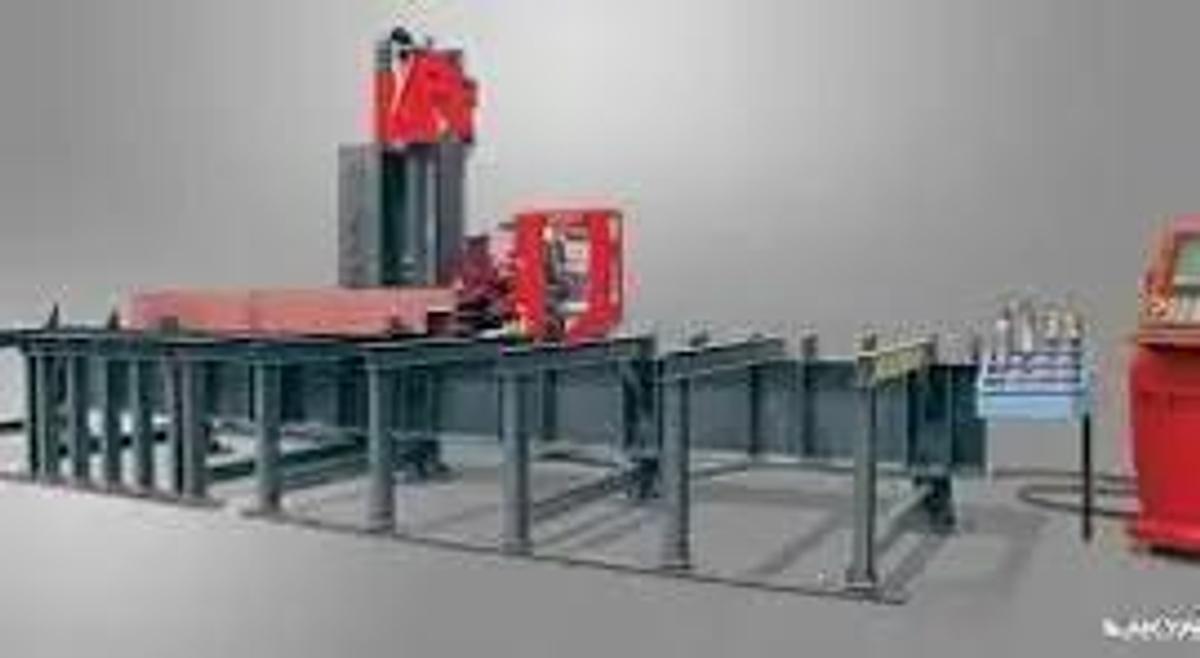

AKYAPAK Single Spindle Beam Drill Line Model Meteor 1200 The METEOR-1200 is developed to drill holes in various kinds of profiles faster with ease. It is the most space efficient drill line model and ideal for small-mid sized fabricators. The METEOR process various steel profiles including beams, angles, flat sheets and any suitable geometries. It also performs milling for slots, pockets with its advanced control system. The METEOR is also equipped with sub-axis that allows to control the spindle within 10" horizontally without moving the body. ✓ Fast return on investment ✓ High versatility in small footprint ✓ Fully CNC ✓ 20 HP spindle motor power ✓ 6-station automatic tool changer ✓ Fast, accurate and maintenance-free ✓ LASER automatic tool measurement & material zero referencing ✓ High positioning tolerance and repeatability ✓ Very robust design ✓ Worldwide spare parts availability ✓ User friendly interface on the control unit ✓ 20, 33, 46, 59, 72, 85 feet long table configurations STANDARD MACHINE EQUIPPED WITH ▪ METEOR 1200 SINGLE HEAD CNC DRILL LINE ▪ 46 feet table ▪ BT40 tool holder ▪ Automatic tool changer with 6 stations ▪ Automatic tool and material measurement ▪ Auto-lubrication system ▪ MQL (Minimum Quantity Lubrication) ▪ Remote control ▪ Mobile control panel ▪ Siemens Simotion control system ▪ Meteor Controller® Programming Software ▪ DSTV file import OPTIONAL FEATURES AND ACCESSORIES Unit Price MQL Lubricant – 5 L $140 Initial Drilling Package* – Strongly Recommended $4,500 Scribe Marking Tool - 20.000 rpm with air motor $6,500 Scribe Marking Tool - @Spindle speed $1,400 Air hydraulic oil cooler $600 Hydraulic oil heater $600 DRILL UNIT Drill diameter - Ø inch 3/16 – 1-9/16 (Carbide) Drill Holder BT40 or ISO40* Tapping inch 1/4 to 1-3/16 (M6-M30) Max. tool length inch 12.6 Spindle power HP 20 Spindle speed rpm 0 – 3000 stepless Spindle torque ft.lbf 141 @750 rpm Total power HP 60 SIZE Working length feet 46 ́ Beam height inch 2 – 47 Beam width inch 2 – 47 Support table height inch 39.4 Total length feet Working length + 10.6 feet Total height inch 124 Total width inch 118 Total weight lbs Depends on the working length POSITIONING ACCURACY X-axis (Longitudinal) inch +/- 0.01 Y-axis (Spindle up and down) inch +/- 0.002 Z-axis (Spindle forward and backward) inch +/- 0.002
