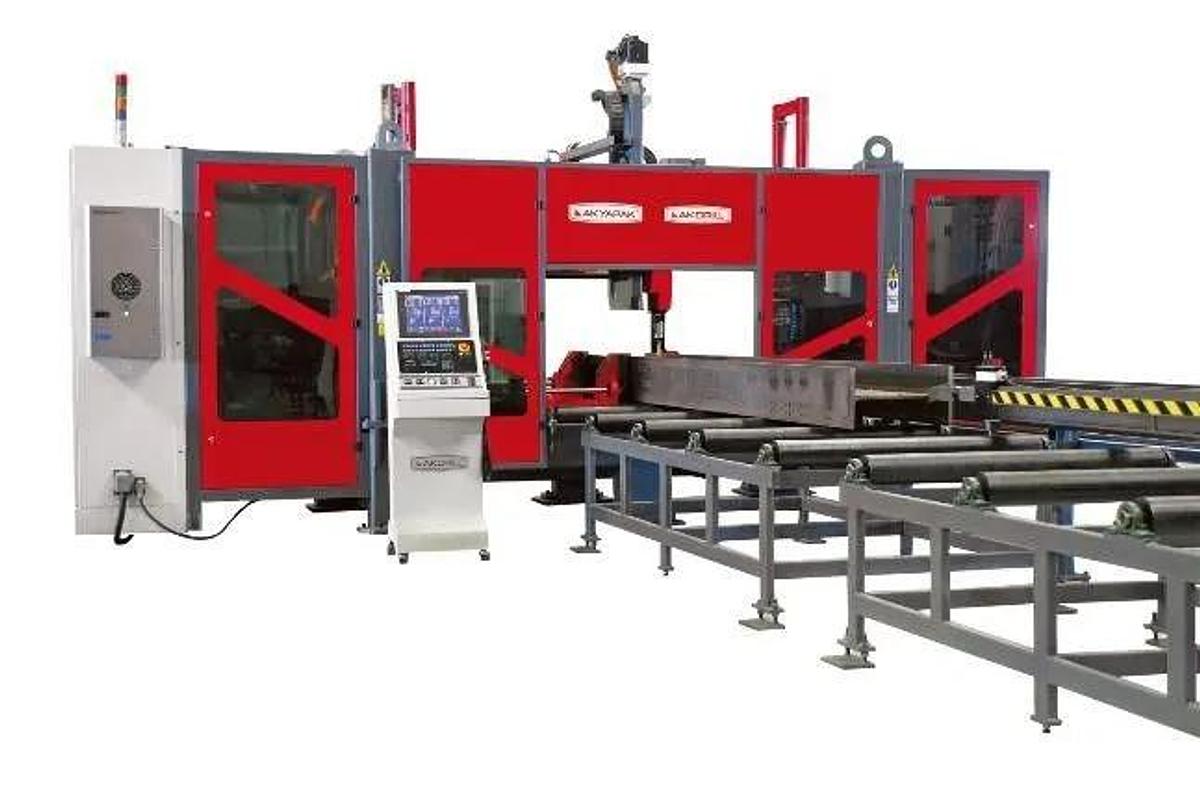

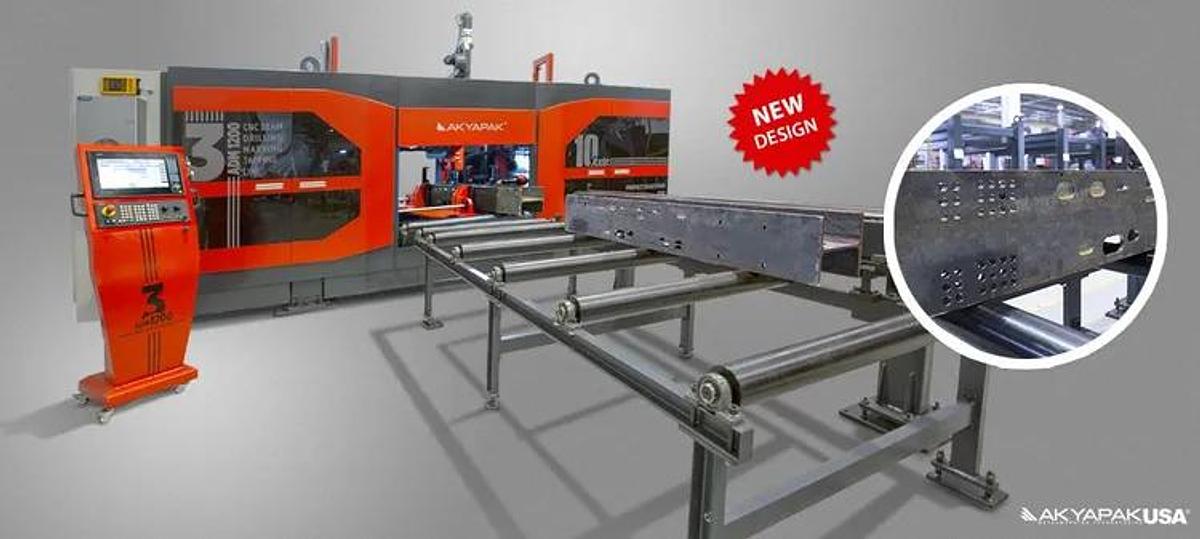

AKYAPAK Model 3ADM 1200 Beam & 3 Spindle CNC Drill Line

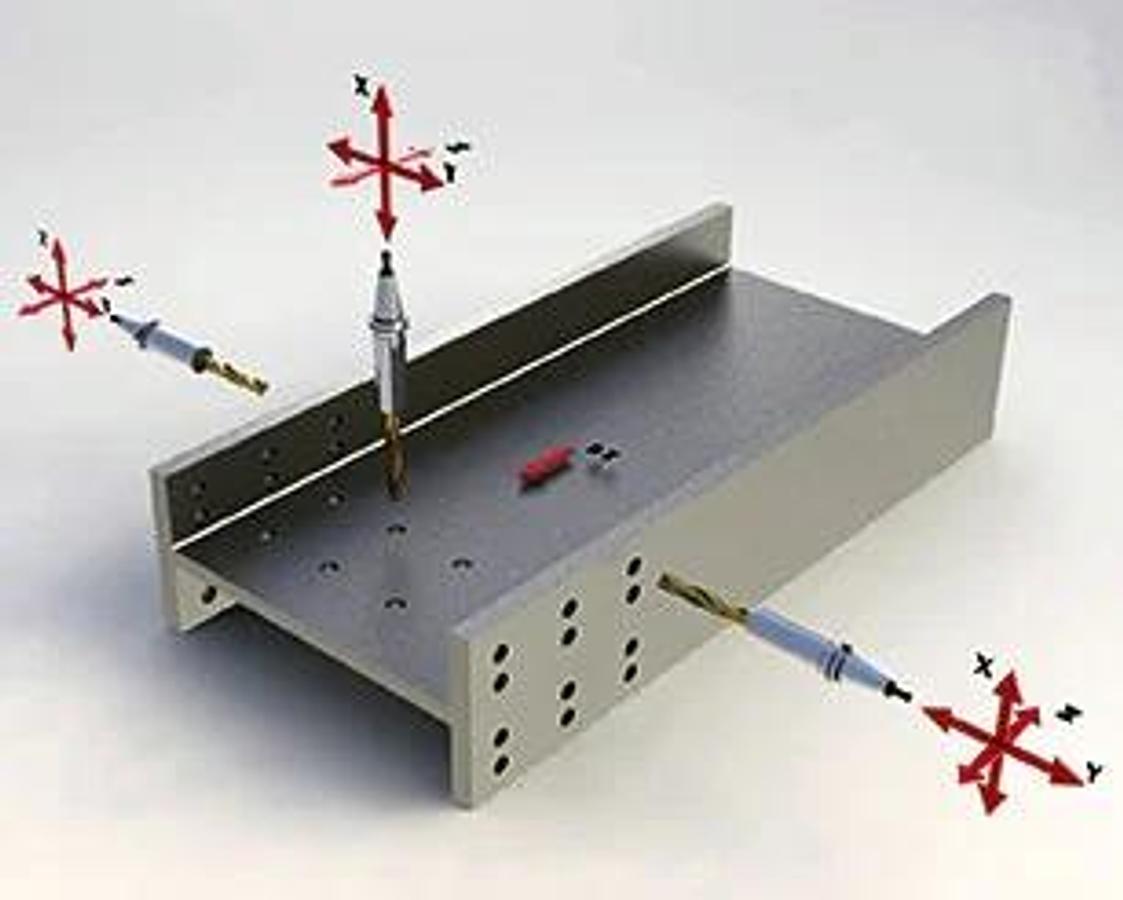

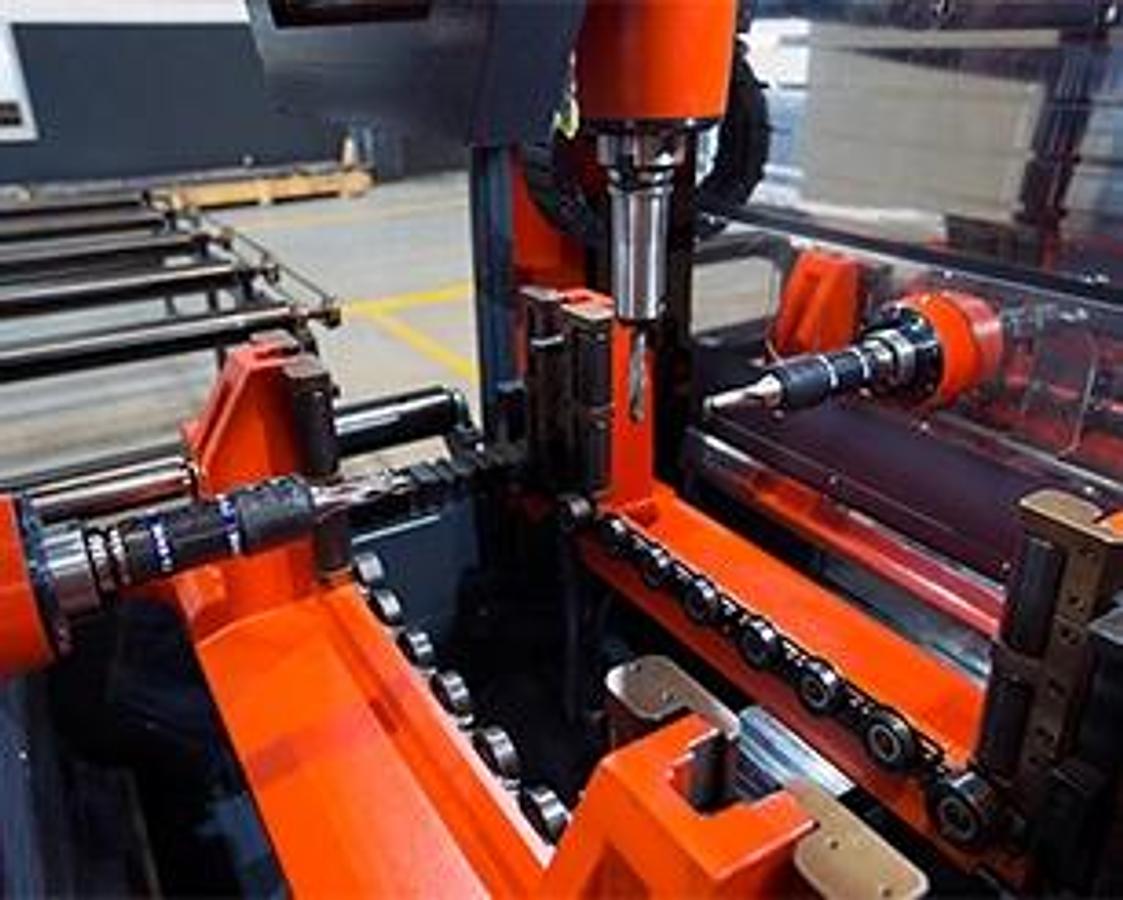

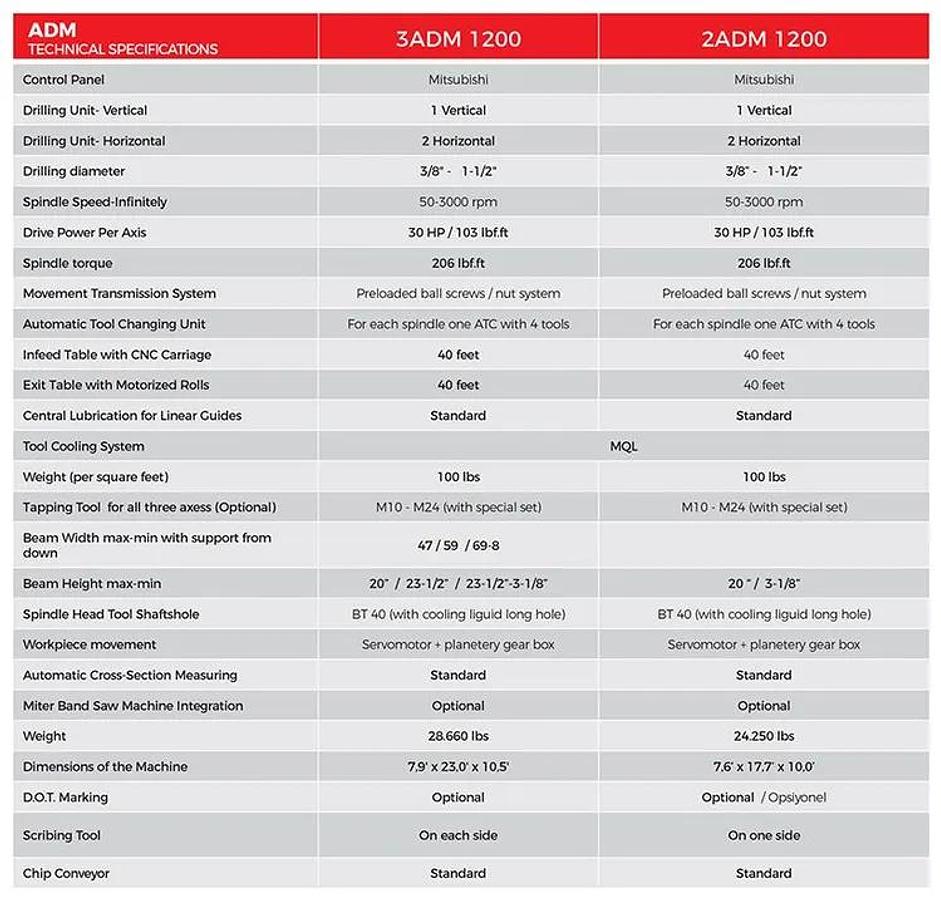

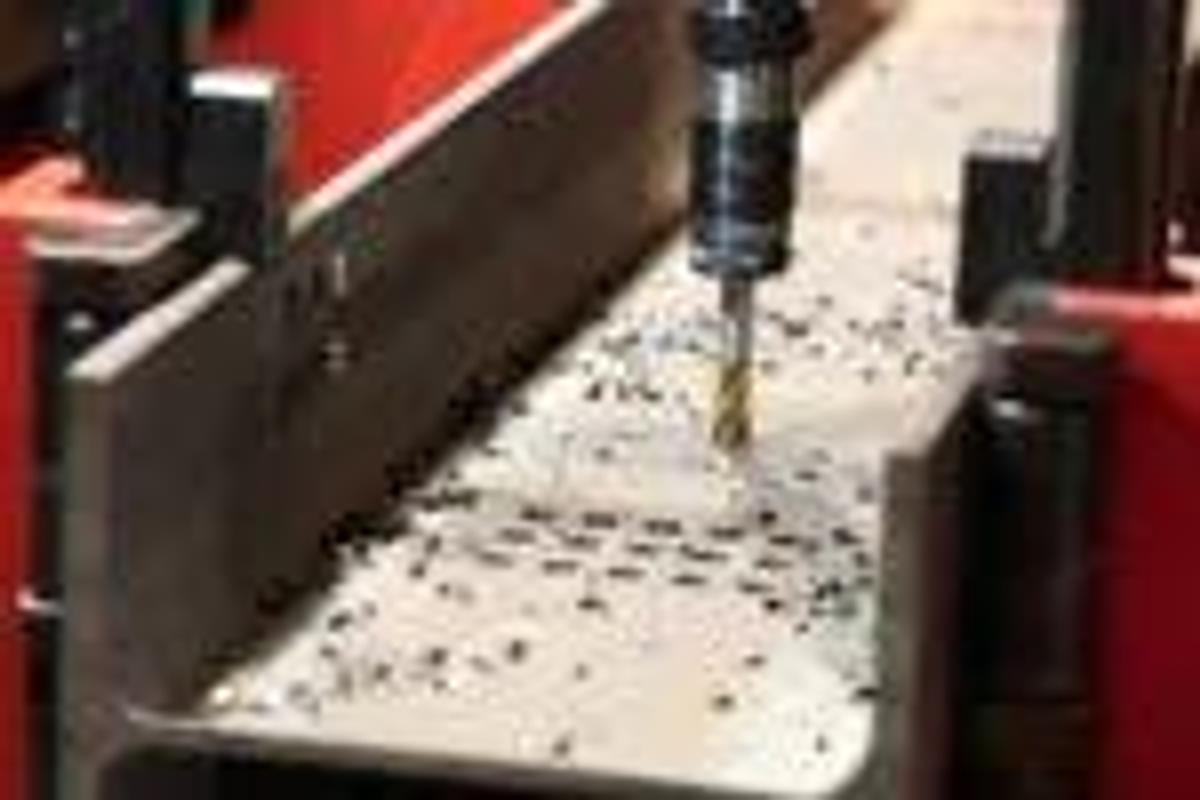

AKYAPAK Model 3ADM 1200 Beam & 3 Spindle CNC Drill Line. Impressive power at 15 hp and RPM of up to 4,500. It boasts a Mitsubishi Controller with accelerated communication speed, inter-CPU shared memory, and up to 16 axes. This machine's operating range varies from a minimum of 7.87" x 3.15" to a maximum of 47.24" x 19.69", with drill diameters from 10 - 50 mm. It's sleek, efficient, and ready to contribute to you achieving peak production levels. Optional additions include a mitering bandsaw for $100,000. Mitsubishi Controller Key Features • Accelerated communication speed over the inter-CPU shared memory • Up to 16 axes with 4 simultaneously controlled axes per CPU, 2 CPUs per system • 16.8k Block/min processing speed • Streamlined production with reduced Tact Time and host information system linkage • Uses GOT1000 HMI and iQ rack-based I/O card interfaces • SSCNETIII benefits, including noise free, 50Mbps, fiber optic communication. • Mitsubishi Touch Screen Main Saw Motor kW 11 Mitering Servo Motor kW 1.5 Brush Motor kW 0.12 Coolant Oil Pump (opt) kW 0.12 Hydraulic Pump kW 5.5 Bandsaw length mm 9010 (Bi-Metal) Cutting Speed m/min 0.4 Length x Width x Height mm 4740x2350x2500 Working Height mm 800 Weight kg 6680 Mitering angle ° +60°/-45° Sawing Capacity max. (WxH) mm 1200x500 Sawing Capacity min. (WxH) mm 65x45 Controller Mitsubishi Operating Range Min. 7.87" x 3.15" Max. 47.24" x 19.69" Drilling Units 3 Drill Diameter mm 10 – 40 (Carbide and U-drill) 40 – 50 (U-drill only) Thread Tapping M12 – M24 Drill Holder BT40 Spindle Speed rpm 50 – 3000 stepless Spindle Power HP 30 Spindle Torque Nm 280 Tool Changer 3 x 4 Weight per linear meter kg/m 600 Spindle positioning speed / returning speed m/min 15 Machine Weight 28,600 CAPACITIES ANGLE minimum inch 3.15” x 3.15” x 1/3” maximum inch 9.84” x 9.84”x 1.1” U CHANNEL minimum inch 3.15”x1.77”x 1/4” maximum inch 15.74“ x 4.33“ x 0.55“ HEA minimum inch 3.77”x3.93”x0.19” maximum inch 38.9”x11.8”x0.64” HEB minimum inch 3.93“x3.93“x ¼“ maximum inch 39.3“x11.8“x0.74“ HEM minimum inch 4.7“x4.1“0.47“ maximum inch 39.6“x11.8“x0.82“ H WELDED PROFILE maximum inch 49.2”x19.68”x2” IPE minimum inch 3.14”x1.81”x0.14” maximum inch 30.3”x10.5”x0.61” IPN minimum inch 3.14”x1.65”x0.15” maximum inch 21.6”x 7.87”x 0.74”
