CHICAGO DREIS & KRUMP Bending Roll Model IPR 4560 50" Thickness 0.5625

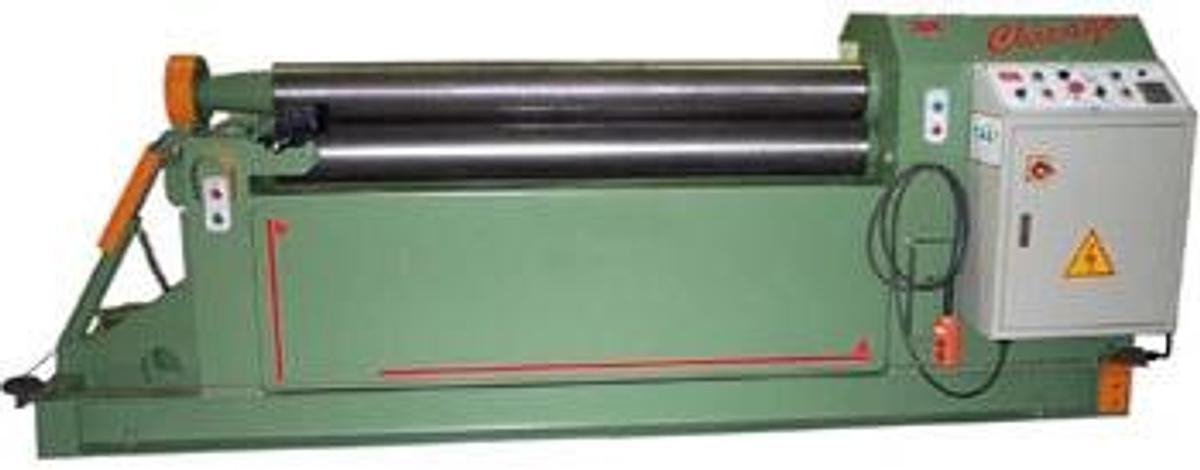

CHICAGO DREIS & KRUMP Bending Roll Model IPR 4560 50" Thickness 0.5625 Chicago Dreis & Krump offers initial pinch bending rolls for rolling sheet metal and light plate. Initial Pinch Rolls with electric/hydraulic power are capable of rolling full or partial cylinders from 16 gauge mild steel to 1/2 inch plate. The lower pinch roll with our special hydraulic powered "quick gap set" is a real time saver during set up. The pinch roll is also tiltable for cone rolling. Hydraulic operation of the drop end for ease of material removal is an added convenience. As with all Chicago bending rolls, the frames are made of heavy welded construction. The rolls are made from forged steel and heat treated to RC 45. Spherical roller bearings on all three rolls minimize friction loss. The rear bending roll is equipped with an LED readout indicting its position for accurate forming. Positioning of the rear bending roll is done hydraulically and allows the operator to tilt it for cone forming. An emergency stop button and keylock on/off power switch are centrally located on the control panel. STANDARD EQUIPMENT Hydraulic operation of rear bending roll Hydraulic operation of lower pinch roll with quick gap set feature Electric motor/transmission powers gear driven pinch rolls LED readout of bending roll position Hydraulic operation for tilt of rear bending roll Hydraulic powered drop end Forged steel hardened rolls Roller bearings on all roll shafts Reinforced heavy duty frame Pendant Forward/Reverse control Safety cut off cable around work area Cone forming attachment Keylock on/off control switch Plate Bending Roll Machines This machine is total push button operation to make your metal rolling easy! Positioning of the rear bending roll is done hydraulically via push buttons and allows the operator to tilt it for cone forming. bearings on all three rolls minimize friction loss. The rear bending roll is equipped with a digital readout indicating its position for accurate repeat forming. Push button hydraulic opening of the top roll bearing assembly for easy finished part removal. The lower pinch roll has our special hydraulic powered "quick gap set" which is a real time saver for metal thickness set up. The pinch roll is also easily tiltable for cone rolling. An moveable attachment for making cones is included. The frame is made of heavy welded steel construction. The rolls are machined from forged steel and heat treated to RC45. Strong spherical roller An emergency stop button and keylock on/off power switch are centrally located on the control panel. SPECIFICATIONS Rolling length . . . . . . . . . . . . . . . . . . . . 50" Diameter of rolls . . . . . . . . . . . . . . . . . . 7.9" (Init/Dbl Pinch or Pyramid) INITIAL PINCH Max Thickness 0.5625" Hyd/Mech Hyd
