KENYOU VTM3034 Vertical Turning Center,
Vertical turning and milling solution with Fanuc or Siemens control options, 3000mm table diameter, 3400mm turning diameter, 20,000kg max workpiece weight and up to 72 tools
Machine Features
Fanuc 0iTF plus / Siemens Sinumerik 828D control options
One piece machine bed ensures rigidity
Unique machine design
High pressure coolant through system with multiple filter system for efficient machining
Milling option
Grinding option
Capto option
Table diameter 3000mm
Max swing diameter 3400mm
Max turning diameter 3400mm
Max turning height 1700mm (2100mm opt)
Max workpiece weight 20,000kg
X travel -200 ~ +1400mm (-1200 ~ +1400mm opt)
Z axis 1200mm (1400mm opt)
W axis 100mm
W axis positions 5
C axis 360°
X axis rapid traverse 10m/min
Z axis rapid traverse 10m/min
C axis rapid traverse 4 min-1
Vertical workholding max spindle speed 120rpm
Vertical workholidng speed range 2 step gearbox
Vertical workholding motor power (30 min) 30/37kW x2
Min spindle indexing angle (C axis) 0.001°
Tool capacity 16 (up to 72 opt)
Max tool length 500mm turning / 300mm rotary tool

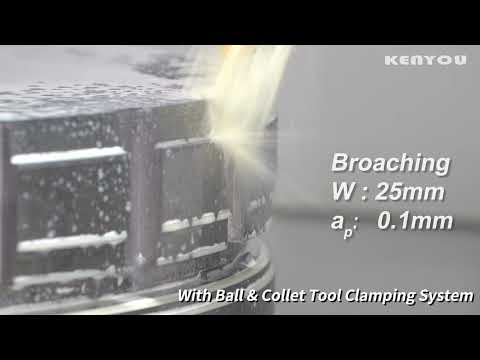

Tooling system Turning BT50 + coupling (ball & collet lock, capto opt) Milling BT/BBT50
Tool clamping force Turning 2000kgf (8000kgf opt) Milling 1800kgf
Pull stud MAS 403
Ram size 250 x 250mm
Ram side nozzles 2 pieces
Ram CTS 7 bar (20/70/120 bar opt)
Milling spindl max speed 2400rpm
Milling spindle speed range 2 step
Milling spindle motor power (S1/S6 60%) 11/15kW Fanuc (15/18, 18.5/22, 22/26kW opt)
Power 120kVA
Machine dimension (L x W x H) 9400 x 6800 x 7200mm
Machine weight 51,000kg
