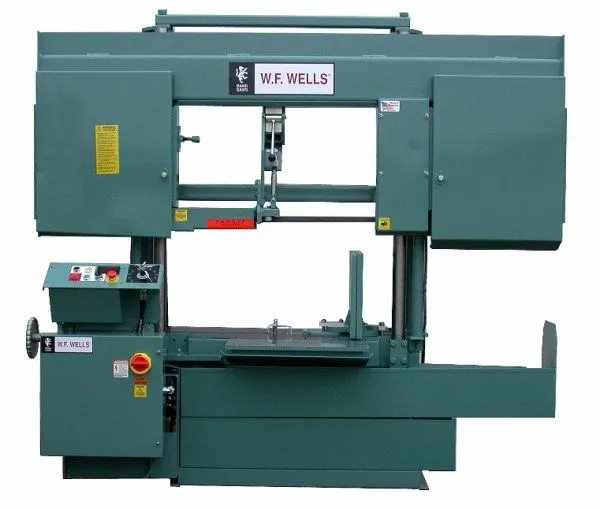

W.F. Wells Horizontal Twin Column Semi-Automatic Bandsaw Model H2024-3 20" x 24" capacity
All of our products are proudly made in the U.S.A. for Quality, Reliability, and Repairability.

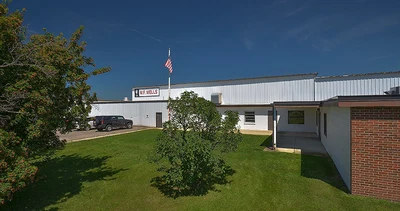

W.F. Wells, Inc manufactures twin post, semi-automatic and CNC fully-automatic horizontal metal cutting bandsaws of the guillotine type. Models are available that will cut from 9 to 60 inch in diameter. W.F. Wells, Inc also manufactures hinge type horizontal bandsaws that will cut 7 to 10 inch diameter stock. A large variety of specialty saws for cutting unusual sizes and materials are also available. Parts are also available for W.F. Wells, Inc saws produced as far back as the 1940’s. Call or email W.F. Wells, Inc today and let us help you with your sawing, parts, or service requirements!

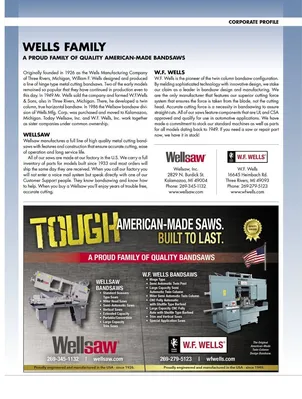

In 1925 William Franklin Wells founded the Wells Manufacturing Corp. to make meat-cutting bandsaws. In 1928 the company introduced a horizontal metal cutting bandsaw, which would later be claimed to be the world's first such saw.
At some point Mr. Wells sold his interest in the business. The new owners emphasized the Wellsaw brand, which had already been in use; the official company name remained the same. In 1948 Mr. Wells formed another company called W. F. Wells & Sons, which also made metal cutting bandsaws.
In 1985 Wells Manufacturing Corp. got into financial trouble and changed hands. In 1991 the new owners of Wells Manufacturing Corp. purchased the assets of W. F. Wells & Sons, and merged the two companies, with the merged company being named W.F. Wells, Inc. The company is still in business today manufacturing horizontal metal cutting band saws.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Hydraulic Holddown, Manual 0052410 $3,450.00
Automatic Length Stop Assembly 0056707 $500.00
Discharge Worktable, 20” X 48” L with Stock Stop 0056041 $3,225.00
Discharge Worktable, 24” X 48” L with Stock Stop 0053230 $3,850.00
Work Light, Wired In 0052409 $400.00
Blade Break/Stall Switch 0056040 $725.00
Hydraulic Chip Conveyor, Auger Style 0010867 $6,750.00
High Speed Drive & Guides (1" Blade) 400-3000 SFPM 0056699 $9,300.00
Free Standing Roller Stock Conveyors, 6" Centers
21" X 5' X 5,000 lbs. Cap. Distributed Weight 0050247 $1,950.00
21" X 10' X 10,000 lbs. Cap. Distributed Weight 0050250 $3,025.00
24” X 5’ X 5,000 lbs. Cap. Distributed Weight 0050267 $3,450.00
24” X 10’ X 10,000 lbs. Cap. Distributed Weight 0050268 $4,500.00
Electric Powered Conveyor 24” x 10’ 0010749 $12,500.00
Specifications
Capacity ...........................Rectangular @ 90 20" H X 24" W, Round at 90 20" Diameter
Weight Capacity ....................5,000 lbs.
Blade Speed ........................60-500 SFPM
Blade Size .........................1 ¼ " X .042" X 17'-8”
Blade Guide ........................Roller Guides with Carbide Side Blocks
Blade Tension ......................Hydraulic Order
Bandwheel Size .................... 20" Voltage Number
Vise ...............................Full Stroke Hydraulic, 15” 208-60-3 0010847

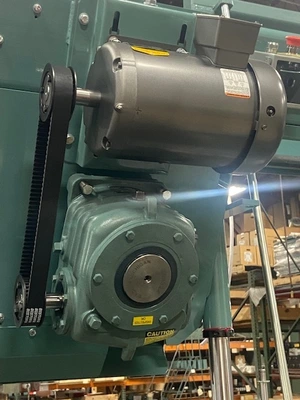

Blade Drive ........................7 ½ HP, AC Vector Drive 230-60-3 0010846
Sawing Force .......................0-500 lbs. 460-60-3 0010845
Coolant Capacity .................. 15 Gallons 575-60-3 0010848
Hydraulic Capacity ................ 20 Gallons
Hydraulic Drive ....................2 HP Motor
Work Height .........................26"
Shipping Weight .................... 3,300 lbs.
Electrics ...........................Wired to NFPA 79 Machine Tool Standards
Shipping Dimensions..................121” L x 40’W X 96”H
