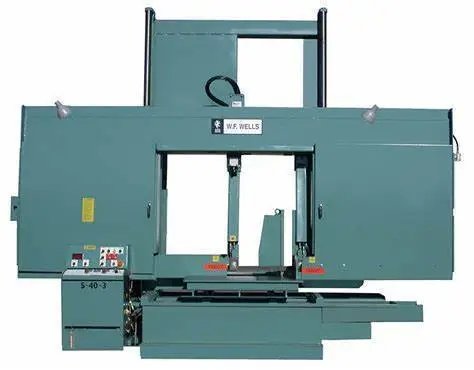

2025 W.F. WELLS S-40-3 TWIN COLUMN W/ Full Hydraulic Control, 40" x 40" Capacity
Have one to sell?
ConditionNew
1 available
New
2025 W.F. WELLS S-40-3 TWIN COLUMN W/ Full Hydraulic Control, 40" x 40" Capacity

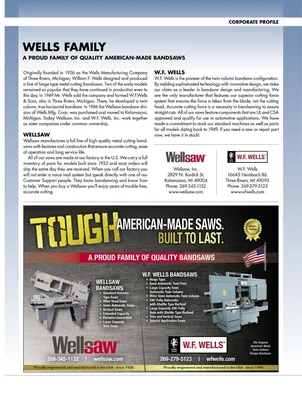

In 1925 William Franklin Wells founded the Wells Manufacturing Corp. to make meat-cutting bandsaws. In 1928 the company introduced a horizontal metal cutting bandsaw, which would later be claimed to be the world's first such saw.
At some point Mr. Wells sold his interest in the business. The new owners emphasized the Wellsaw brand, which had already been in use; the official company name remained the same. In 1948 Mr. Wells formed another company called W. F. Wells & Sons, which also made metal cutting bandsaws.
In 1985 Wells Manufacturing Corp. got into financial trouble and changed hands. In 1991 the new owners of Wells Manufacturing Corp. purchased the assets of W. F. Wells & Sons, and merged the two companies, with the merged company being named W.F. Wells, Inc. The company is still in business today manufacturing horizontal metal cutting band saws.
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Discharge Worktable 40" Wide X 56" Long 0056194 $6,825.00
Hydraulic Chip Conveyor, Auger Style 0056069 $6,725.00
Hydraulic Holddown, Saw Vise 0056243 $5,650.00
Outboard Vise with Hydraulic Holddown 0056245 $17,950.00
Mist Coolant 0010774 $3,225.00
Laser Shadow Line 0056319 $3,225.00
Outboard Vise 0056244 $12,500.00
High Speed Drive & Guides (1½” Blade) 570-3400 SFPM $9,300.00
Electric Powered Conveyor 40" X 10' $18,475.00
Non-Powered Conveyor 40" X 5' 0050190 $8,375.00
Non-Powered Conveyor 40" X 10' 0050189 $11,875.00

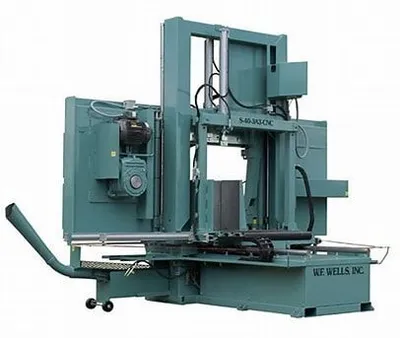

For S-40-3 with Automatic Barfeed see S-40-3A3 CNC
Specifications
Capacity .................................. Rectangular at 90 40" H X 40" W. At 45 40" H X 24" W
Weight Capacity ....................... 15,000 lbs.
Blade Speed ........................... 60-500 SFPM
Blade Size .............................2" X .063" X 29'
Blade Guide ........................... Carbide Blocks, Spring Tensioned
Blade Tension ....................... ...Hydraulic Order
Bandwheel Size .............................. 42" Voltage Number
Vise ....................................... Hydraulic Full Stroke 208-60-3 0011102
Blade Drive ........................... 15 HP, AC Vector Drive 230-60-3 0011103
Hydraulic Drive ............................. 5 HP 460-60-3 0011104
Sawing Force ................................ 0-1,000 lbs. 575-60-3 0011105
Coolant Capacity ...................... 15 Gallons
Hydraulic Capacity .................... 20 Gallons
Work Height ........................... 28"
Vise Jaw Height ....................... 24”
Hydraulic Powered Blade Brush
Hydraulic Positioned Guide Arm
Blade Tension Indicator
Blade Break/Stall Switch
Shipping Weight ............................. 9,200 lbs
Shipping Dimensions (Approx)................. 175 ”L X 55” W X 135” H
Electrics ..............................Wired to NFPA 79 Machine Tool Standards
