W.F. WELLS Model B-25-3C Horizontal Bandsaw, 22" x 40" Capacity, 25" Round
Have one to sell?
ConditionNew
1 available
New

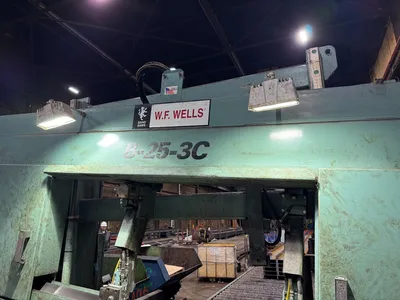

W.F. WELLS Model B-25-3C Horizontal Bandsaw, 22" x 40" Capacity, 25" Round

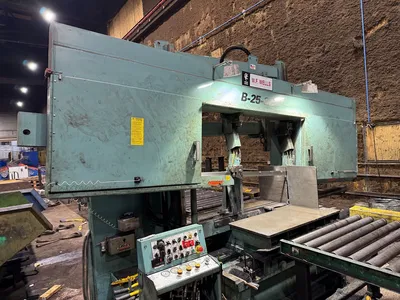

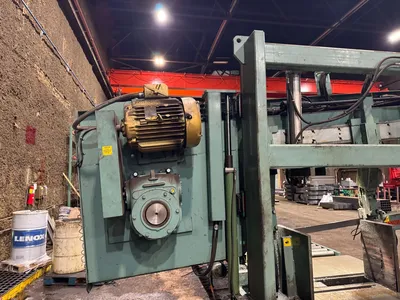

The W.F. Wells B-25-3C horizontal band saw has a capacity of 22" high x 40" wide for rectangular stock at 90 degrees, 25" round at 90 degrees, and 22" high x 24" wide at 45 degrees. It can handle a weight capacity of 15,000 lbs. The saw uses a 2" x .063" x 26'-6" blade, with blade speeds ranging from 60 to 500 SFPM. Other key features include a hydraulic vise, a 15 HP blade drive, and a 5 HP hydraulic drive motor.
W.F. Wells, Inc. has a history rooted in Wells Manufacturing, founded in 1925 by William F. Wells. Initially focusing on meat-cutting saws, Wells Manufacturing later developed the horizontal metal cutting bandsaw, later known as the Wells Model #4. After selling his interest in Wells Manufacturing, Wells formed W.F. Wells & Sons in 1948. In 1991, Robert F. Boyle, the owner of Wellsaw (the successor to Wells Manufacturing), purchased W.F. Wells & Sons, renaming it W.F. Wells, Inc. Today, Wellsaw, Inc. and W.F. Wells, Inc. are sister companies under common ownership.

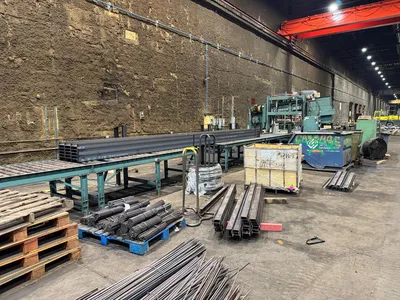

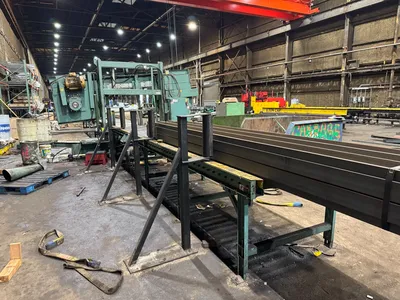

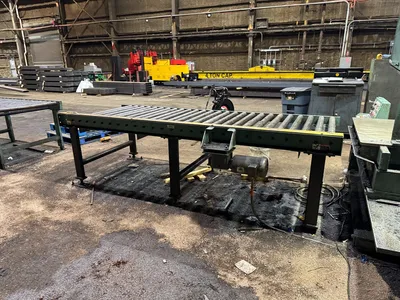

Wells B-25-3. 25 “x 40” capacity. 20’ of 40” wide motorized conveyor in and out. 20’ non motorized each end. Laser line. Mist and flood coolant.

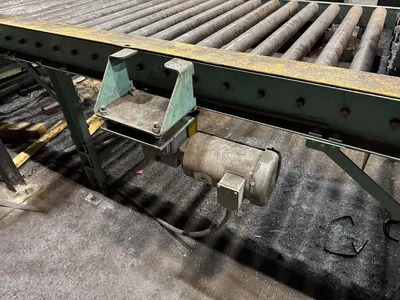

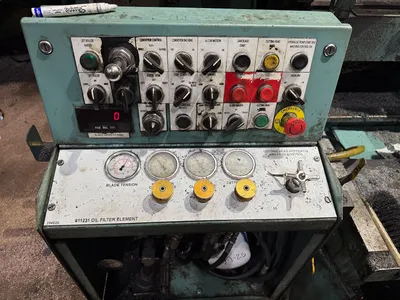

Very good condition. A year ago replaced hoses, valves, wheels etc. The motorized conveyors in and out are integrated with the main controls.
Specifications
Rectangular Capacity at; 90°: 22′′ High X 40′′ Wide
Round Capacity at 90°: 25"
Weight Capacity: 15,000 Lbs.
Blade Size: 1-1/2" x .050" x 26'11"
Blade Speed: 60 - 400 SFPM
Blade Tension: Hydraulic

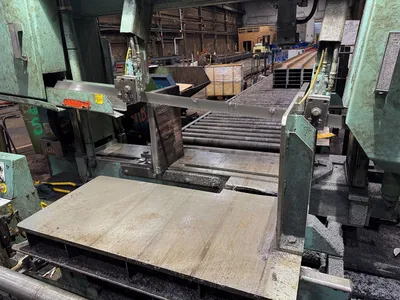

Vise: Hydraulic
Sawing Force: 0 - 1000 lbs.
Electrical: 460V/3PH
Dimensions: 15' L x 5' W x 9' H
Weight: 8,000 lbs.
