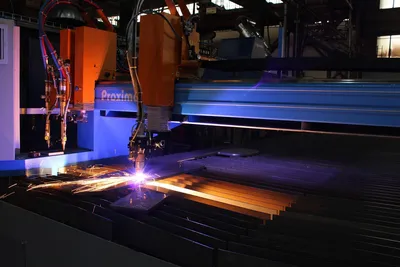

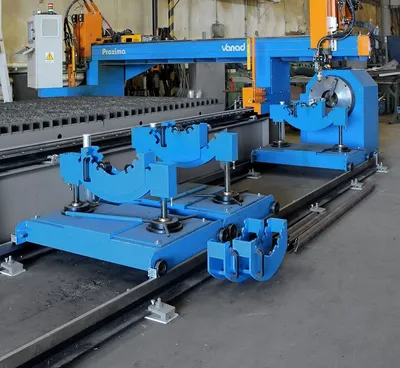

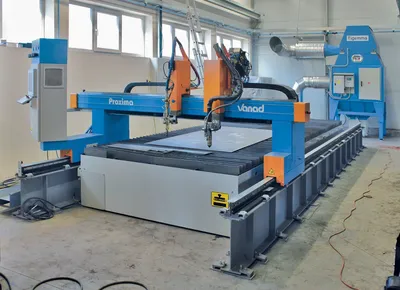

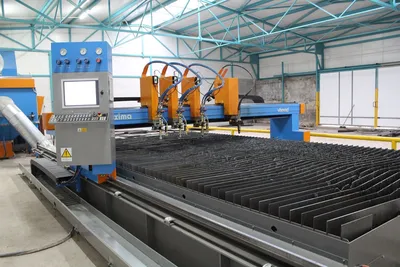

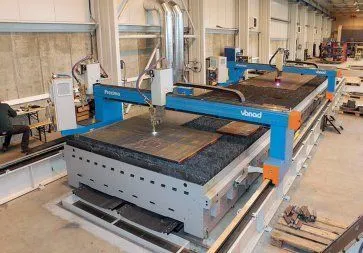

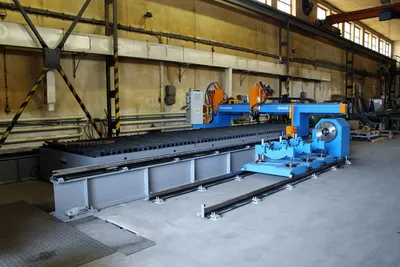

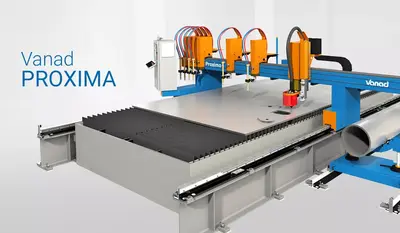

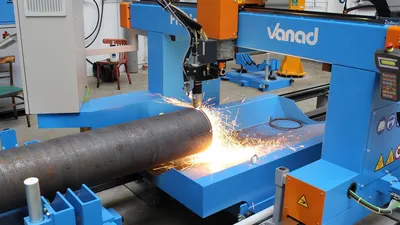

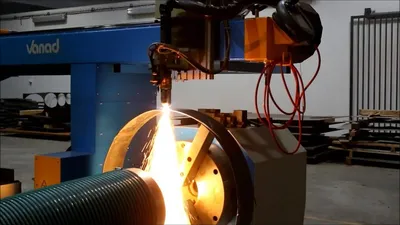

2025 VANAD PROXIMA + RotCUT Model 15/30, CNC Plasma Cutting Machine

Standard equipment
z Longitudinal reinforced IPE beams
z Flexible energy chains
z Electronic control of the torch height
THC unit – height control.
By the oxy-fuel support is the height controlled with the IHT unit (option). This control unit controls the right height for the flame with digital evaluation of the signals with the independent programmable processor and with system of the fast preheating HI-LOW.
The linear leads of the supports are placed in the protective bag.
z Transfer of cutting plans via the USB or LAN network
z Exact control of the ignition and working height of the torch
Laser-pointer - VANAD enables easy, accurate and fast setting of the zero-point and also the turning of the burning plans according to the steel plate and there is assured its fully usage.
(Torch High Control) - plasma interface, tension control of plasma torch height and the sprung holder of a
plasma torch and a micro-switch for the automatic turnoff of plasma arc, the machine’s movement, and the
burner’s extension above material at the moment of reaching metal sheet, automatic adjustment of the ignition height of a plasma torch for the ignition of arc and with controlled downward travel to working height, with optic-electronic position reading

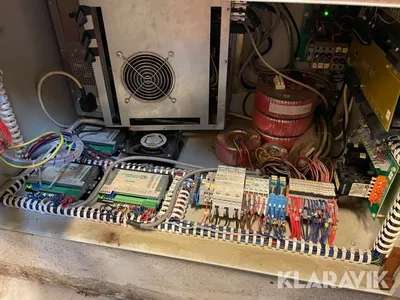

z B&R control system

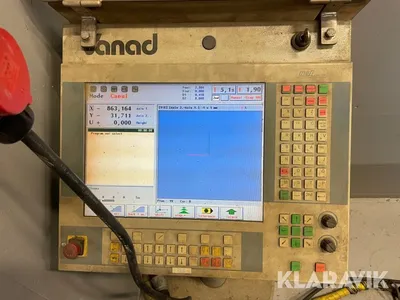

VANAD B&R with LED panel - touch-screen 10.1"
Including software controlling the cutting machine in dust-proof case, with DC power units and play-free gearboxes for two-side driven portal, a dust-proof membrane keyboard with a long service-life, with
industrial 15“ LED contact display, everything with coverage IP65, memory for the archiving of cutting plans of 1,5 GB, software and network card for LAN network for interconnection of the control system
of the cutting machine with a PC programming workplace.

CNC B&R control system

Private platform: B&R
Operating system: B&R Automation Runtime
Industrial computer: B&R Automation PC 620
PC, servomotors, gears: B&R
Processor: Intel Pentium M 1.4 GHz
RAM: 1024 МB
Configuration: Modular
Interfaces: Ethernet, USB 2.0, Com, CompactFlash
Control Panel: Industrial 21.5 ' LCD touchscreen display

- Ergonomic coverage
- Intuitive interface

Keyboard: Membrane coating, protection degree IP 65
Network communication: Internal network (Intranet)
Cooling system: Passive cooling through the specialized radiators
Operating temperature: From + 5°C to + 55° With
Control panel protection: Dust proof keyboard

- No internal connection components PC through cables
- Sturdy construction technology (chipsets and Intel ® Embedded)

Diagnostic system: Self-diagnostics system
Information on the work of the operator: the log file with information about the ongoing work is regularly saved
Network management: Local, remote
Languages: Czech, Russian, English, German, Polish, Slovenian, Serbian, Hungarian, Bulgarian

Benefits and functions of the B &;R control system, which are not usual in other cutting machines
1. More values of kerf correction. It is possible to set different kerf correction for the circumference and the holes, which differ according to the diameter. Assignment of the correction is performed automatically during data preparation. This feature improves the accuracy of cut parts without downtime caused by reprogramming one dimension.
2. More "zero points." Each cutting plan has its own zero point. Therefore, it is possible to interrupt the large-scale cutting plan, to use another and afterwards return to the original one. This important feature increases productivity.
3. Fast zero point setting for cutting into finished parts (profiles, metal sheets formatted on snips etc.). When cutting the workpiece can be fastened to a jig or rely on stops. The program takes into account the exact position of the jig and it is not necessary to set back the zero point or corner of the plate at the start of each cutting.
4. Reference switches. When you set off the machine, the coordinate system is adjusted by moving to the reference switches to the absolute extent against to the table. This ensures repeated accurate positioning into shape after switching off the machine or power failure.
5. Technological tables. Automatic setting of technological values, e.g. kerf width, speed, torch height, gas
pressure is done by selecting the thickness and type of material on the screen of the system.
6. Information about the work of the operator. In the control system there is a constantly updated file with
information about work carried out. It registers the name of the operator, the conducted program, cutting time, and downtime. This information cannot be affected by the operator. It is possible to transmit this information via network.
7.Controlling of special applications. The system includes functions for controlling special technologies such the marking unit (micro-punching marking unit), drilling unit, and unit for cutting thin sheets. The system can be expanded with additional functions and technologies.
8. Safety backup. On the CF card there are two next safety backups, which are automatically used in case of problems. Thanks to this a high resistance to accidental breakage or loss of control program is achieved. The system is also resistant to loss of voltage or shutting down the machine at any time.
9. Resistance against influence of network. There is no need for a backup power supply. All electronic
components are powered with 24 V DC and before shutting down the system backs up all important data.
Servomotors ACOPOS are supplied directly from 3phase grid 3 x 400 V AC with good toleration.
10. Fast servicing. All components can be easily changed, "piece by piece". After a restart, the system restores software and settings of all components. It is therefore not necessary to set the servos again or to change software due to replacing of any component.
11. Machine diagnostic. Status and operation of machine is monitored all the time and all data are saved in
diagnostic files. These files can be put on USB stick and sent to diagnostic centre at the factory of the producer, where failures can be analysed in detail.
12. Remote diagnostics. The system can go online with Ethernet (TCP / IP) cable. It is then possible to remotely monitor the operation of the machine, diagnose status and possible machine failures. If the customer allows remote connection, it is possible to monitor the device from anywhere.
13. Cooperation with any software for data preparation. The control system processes data from all common programs for cutting machines.

Optional equipment

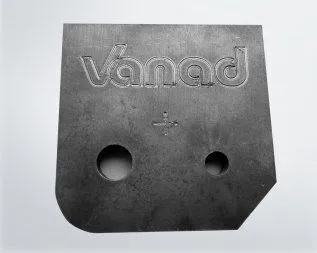

z Marking unit – plasma marking
z Marking unit – micro-punching
z Marking unit – drawing needle
z Drilling unit
z Unit for contact control of the plasma torch
height – for cutting of thin sheets
z Oxy-fuel unit for straight bevel cuts (V, X)
z Electric flame ignition of the oxy-fuel torch
z CAD/CAM software for preparation of cutting
data
