HEM saw Model WF 190A-DC Capacity 25" x 44" Automatic, Dual Column, , 24" Roller Discharge, Optional Top Clamp, Bi-Directional Outboard Powered Vise on Feed Table
$19,500
Description

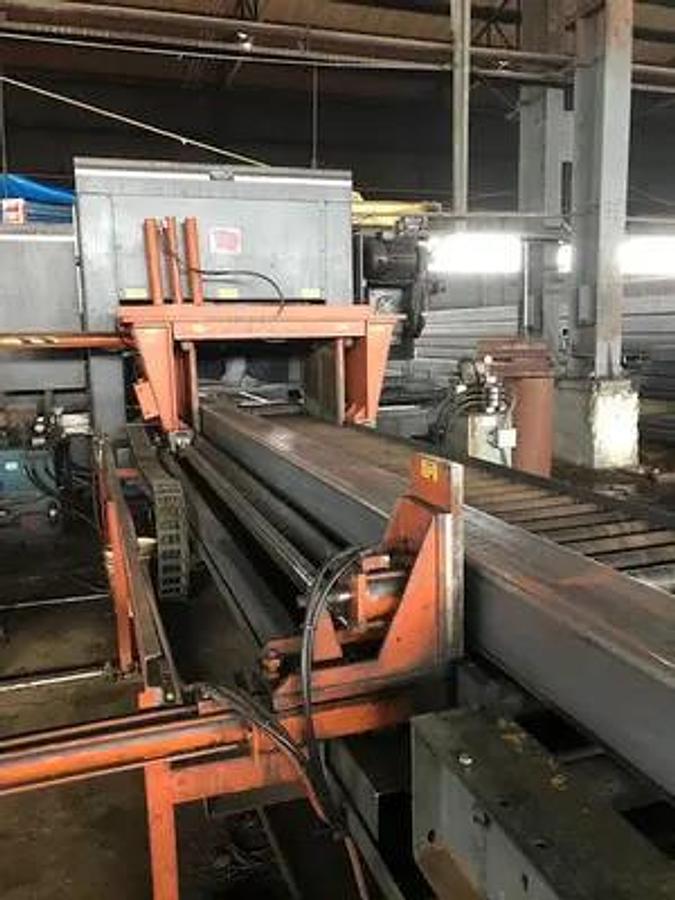

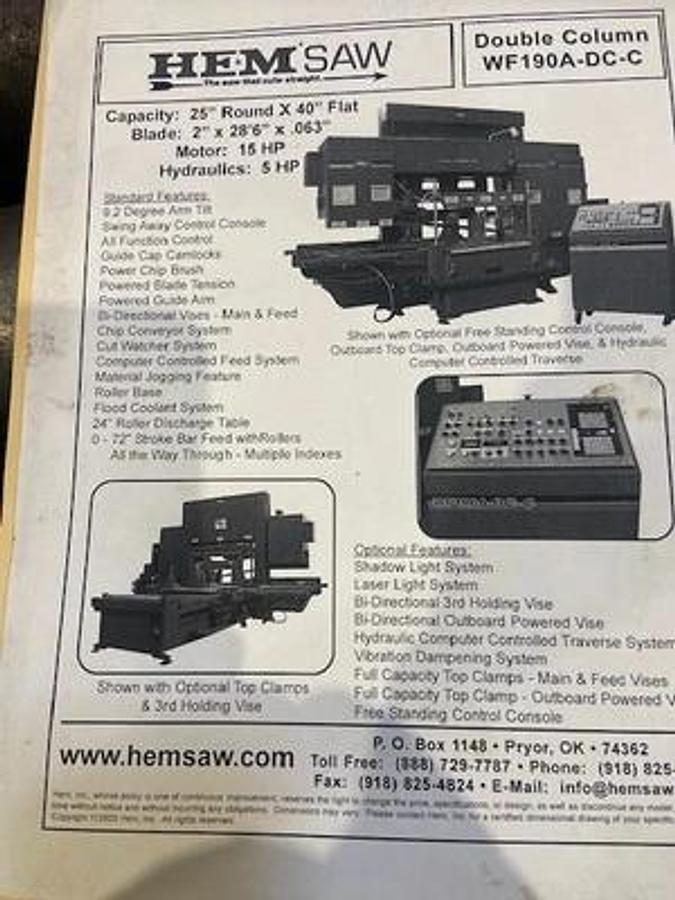

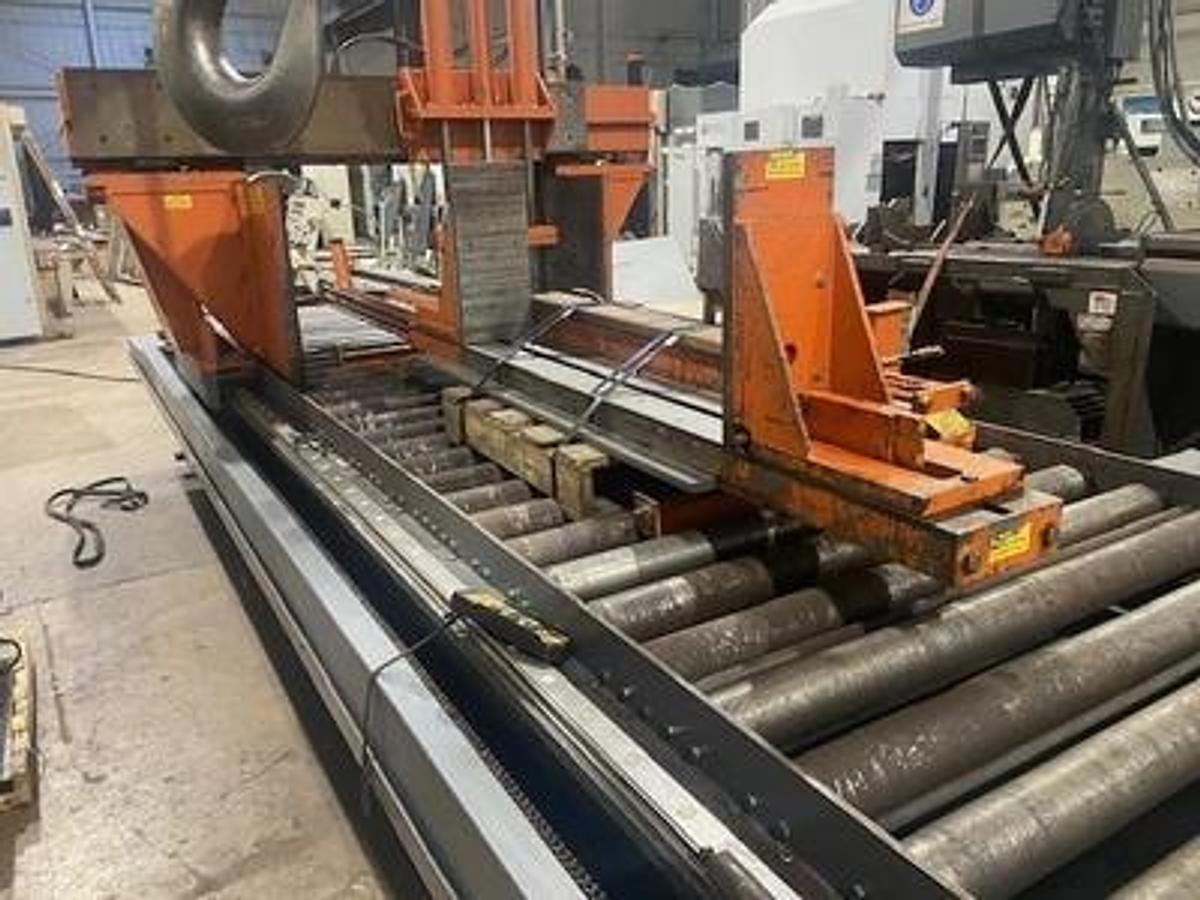

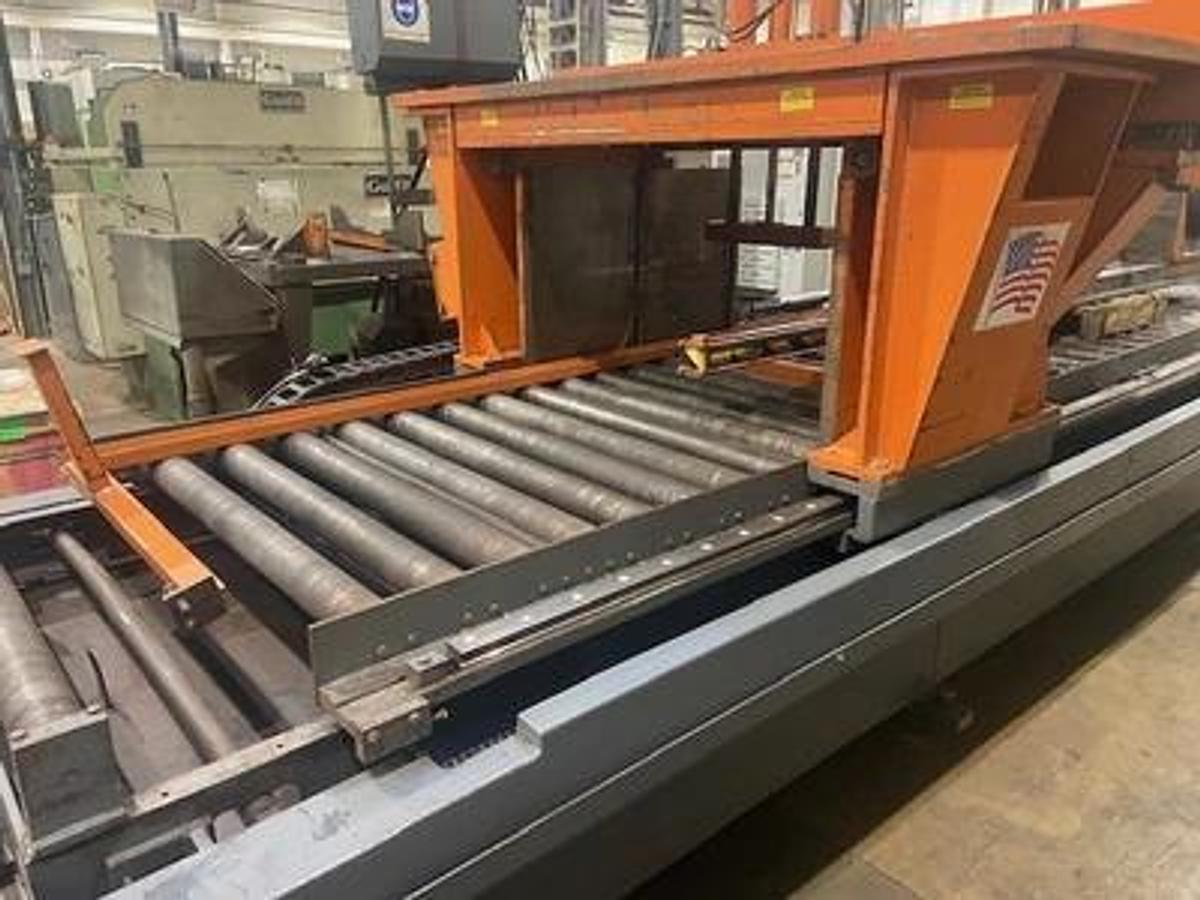

HEM saw Model WF 190A-DC Capacity 25" x 44" Automatic, Dual Column, 24" Roller Discharge, Optional Top Clamp, Bi-Directional Outboard Powered Vise on Feed Table
HE&M Saw’s WF (Wide Flange) series was designed specifically for cutting structural shapes and bundles. The design has been proven highly successful in sawing these materials by fabricators, mills, and service centers for many years. A variety of capacities are available with either semi-automatic or fully automatic controls and touch screen PLC input interface complete with both job and material libraries.

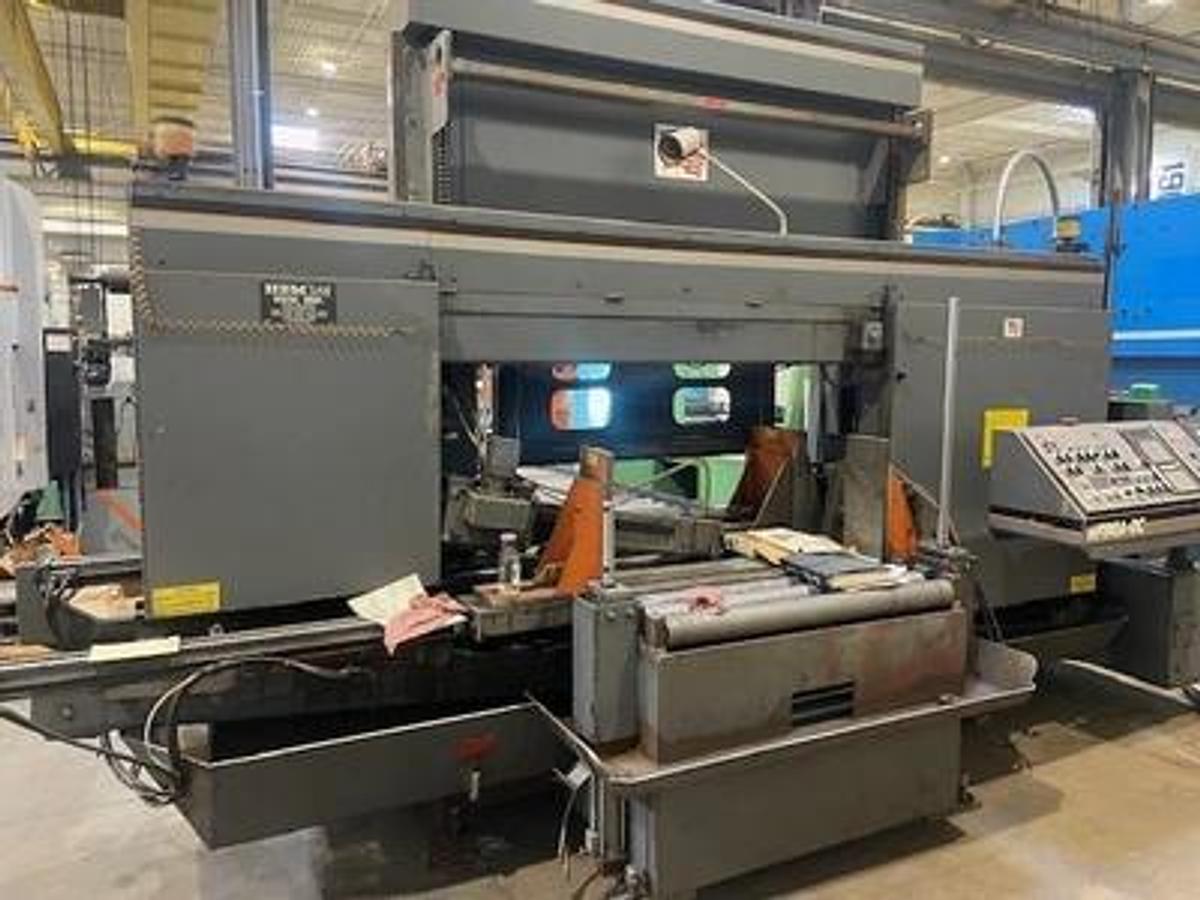

HEM Saw offers the WF190LA-DC-C wide-flange band saw machine. This horizontal automatic band saw is designed specifically for cutting wide-flange beams with capacities ranging from 25” high to 44” wide.
It features a dual-column design, and the pair of huge columns provide for an exceptional amount of strength and precision for fast and accurate cutting results.
Specifications

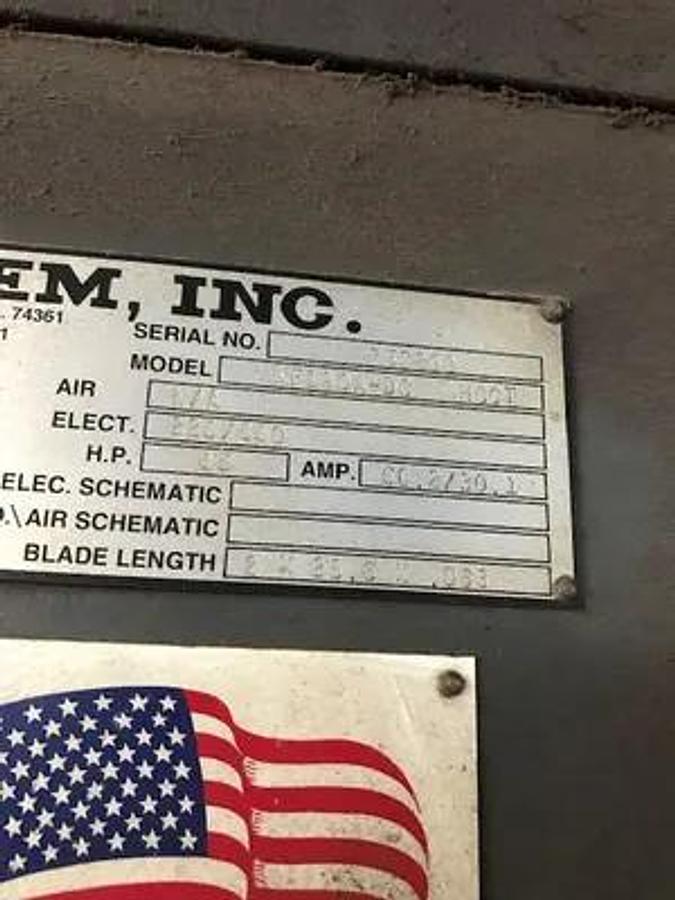

| Manufacturer | HEM |
| Model | WF-190A-DC |
| Year | 2000 |
| Condition | Used |
| Stock Number | 21493 |
| Country | United States |
| Rect-cap (h) | 25" |
| Rect-cap (w) | 44" |
| Rounds-cap | 25" |
| Square-cap | 25" |
| Power | 15 hp |
| Type (auto, manual, semi) | Auto |
| Blade width | 2" |
| Blade thickness | 0.063" |
| Blade length | 29' |
| Dimensions | 175" LR X 119" FB X 119" H |
| Weight | 13,500 LBS |
| Brand | HEM, Pryor, OK |
| Loading | Machine will be load on your truck as no cost. |
| Round cut capacity | 25" |
| Rectangular cut capacity | 25" x 44" |
| Blade size | 2" x 29' |
| Blade speed | 70-500 SFPM |
| Motor hp | 15 |
| Electrical | 440 Volts |
| Amperage draw | 60.2/30.1 |
| Equipped with | Auto Feeding |
