Description

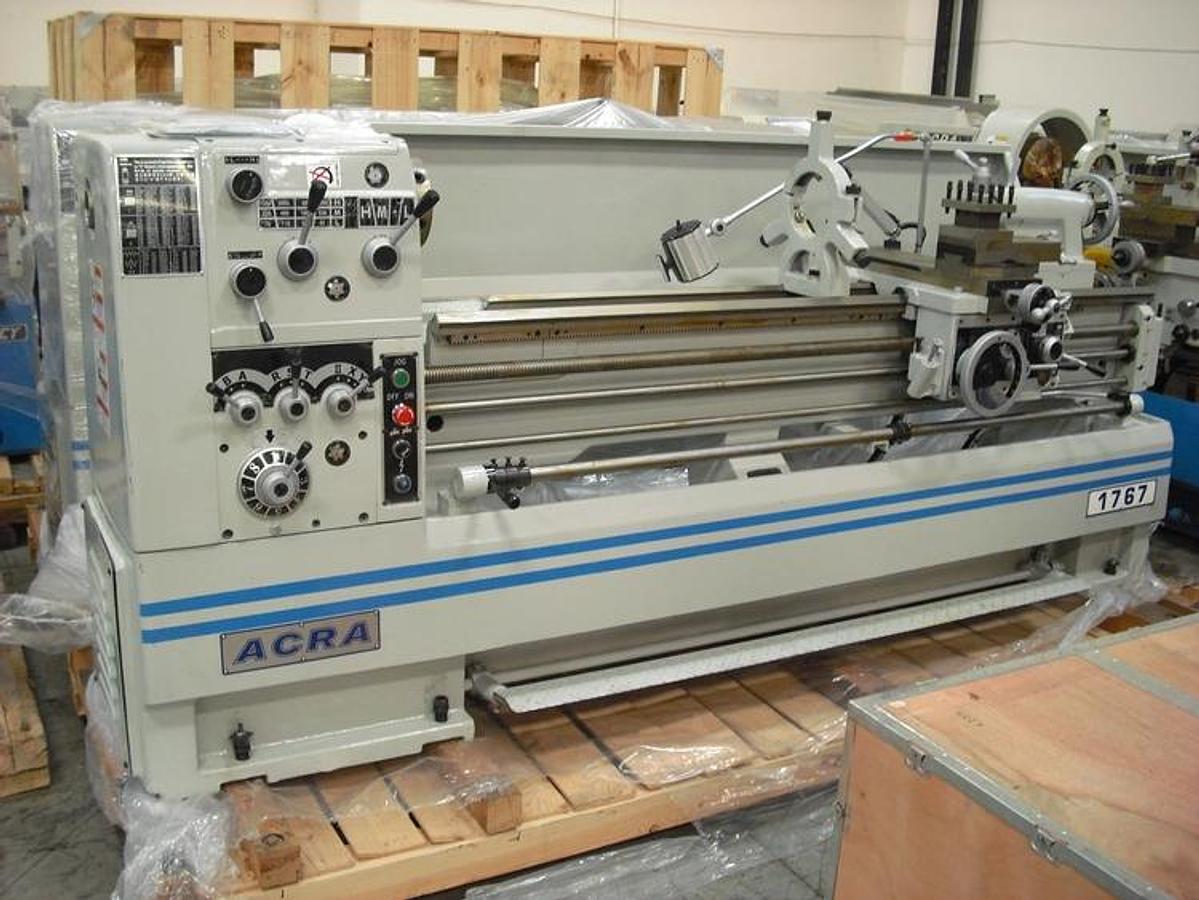

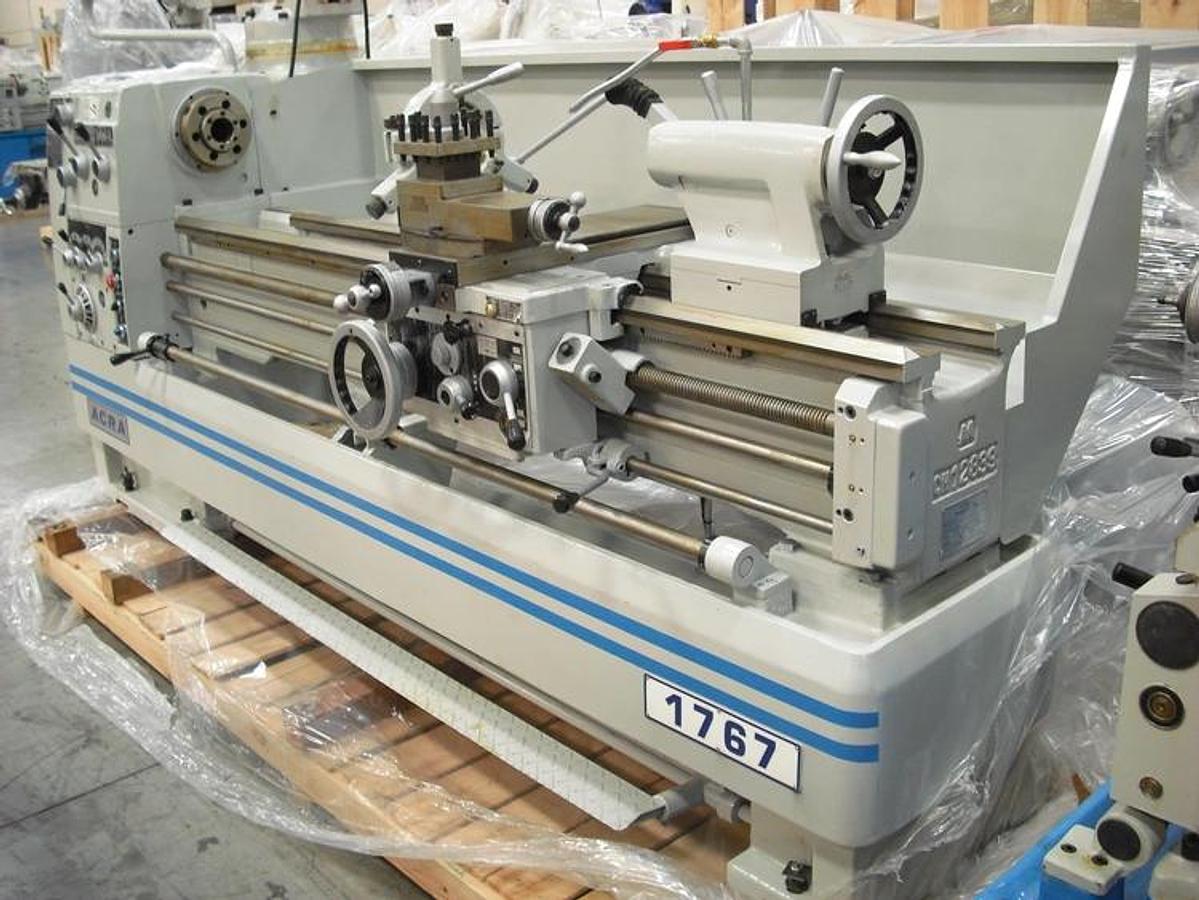

Introducing the new ACRA Precision Engine Lathe Model 1700 ACH, manufacturing year 2023. This advanced engine lathe comes with features including a 17" swing, 67" centers, and a spindle bore of 3". It is fully powered with a 7.5hp motor and reaches max RPM of 1650. To ensure your safety and convenience, the lathe is equipped with a 10” 3 Jaw Chuck Coolant System, Full Length Splash Guard, Halogen Light, and a 4 Way Tool Holder, among other standard equipment. Also available are optional accessories like varying sizes of Steady Rests, Face Plates, Taper Attachments, Collet Closers, and more. Propelling precision with power, the ACRA Engine Lathe is the impeccable choice for your needs.
STANDARD EQUIPMENT:
10” 3 Jaw Chuck
12” 4 Jaw Chuck
Coolant System
Halogen Light
Full Length Splash Guard
4 Way Tool Holder
Steady Rest
Chuck Guard
Specifications
| Manufacturer | ACRA |
| Model | 1700 ACH-3 1767 |
| Year | 2023 |
| Condition | New |
| Stock Number | 21580 |
| Status | For Sale |
| Swing | 17"; 431.8 mm |
| Centers | 67"; 1,701.8 mm |
| Spindle Bore | 3" |
| Power | 7.5 hp; 5.6 kW |
| RPM | 1,650 RPM; 1,650 RPM |
| Swing Over Cross Slide | 10 3/4" |
| Dimensions | 114"L x 40"W x 55"H; 114"L x 40"W x 55"H |
| Weight | 4,750 lbs; 4,750 lbs |
| Steady Rest 4.7” | $750.00 |
| Steady Rest 6” | $950.00 |
| Steady Rest 8” | $1,150.00 |
| Steady Rest 9.25” | $1,450.00 |
| Follow Rest | $275.00 |
| Face Plate 2" D1-6 | $400.00 |
| Face Plate 3" D1-8 | $600.00 |
| Micro Bed Stop | $300.00 |
| Taper Attachment | $2,750.00 |
| Taper Attachment Installation | $425.00 |
| Lever Type 5C Collet Closer JFK | $1,500.00 |
| Import Collet Closer (Taiwan) 2" | $1,300.00 |
| Import Collet Closer (Taiwan) 3" | $1,450.00 |
| Newall Digital Read-Out-10” x 40” DP700 | $2,620.00 |
| Newall Digital Read-Out-10” x 40” NMS300 | $1,500.00 |
| Newall Digital Read-Out-10” x 62” DP700 | $3,250.00 |
| Newall Digital Read-Out-10” x 62” NMS300 | $1,650.00 |
| Acu-Rite Digital Read-Out-10” x 43” 203 | $2,900.00 |
| Acu-Rite Digital Read-Out-10” x 67” 203 | $3,500.00 |
| Acu-Rite Digital Read-Out-10” x 43” 303 | $3,400.00 |
| Acu-Rite Digital Read-Out-10” x 67” 303 | $4,000.00 |
| Sony or Fagor or Mitutoyo Digital Read | $P.O.R. |
| D.R.O. Installation | $250.00 |
| Aloris Tool Post Set (CXA) 5 pc | $P.O.R. |
| Import Quick Change Tool Holder | $500.00 |
| Live Center MT 4 | $125.00 |
| Series | 1700G 17 X 67 |
| Swing Over Bed | 17" |
| Swing In Gap | 24" |
| Spindle Nose | D1-8 |
| Spindle RPM | 29-1650 (12 Speeds) |
| Main Motor | 7-1/2 HP |
| Voltage | 220/440V AC / 3 PH |
