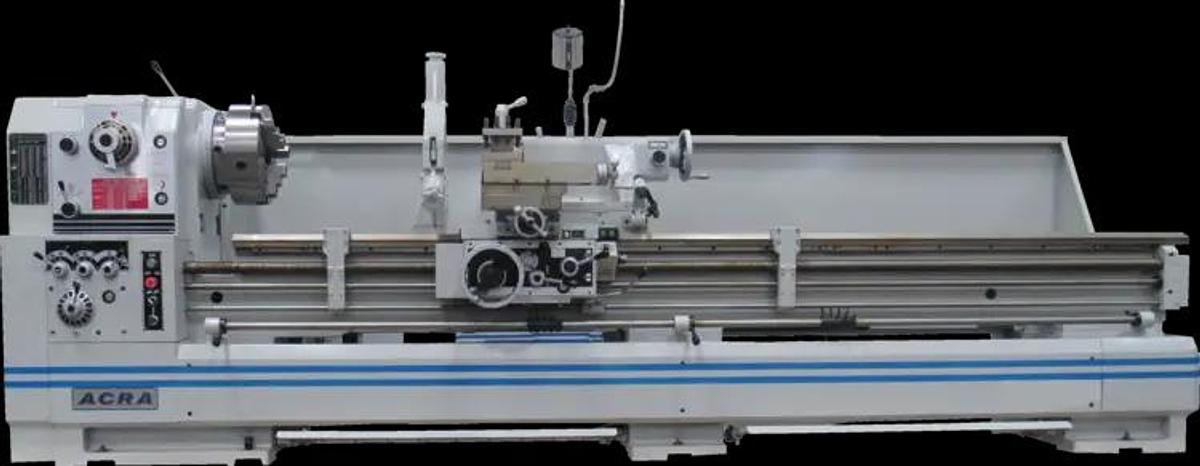

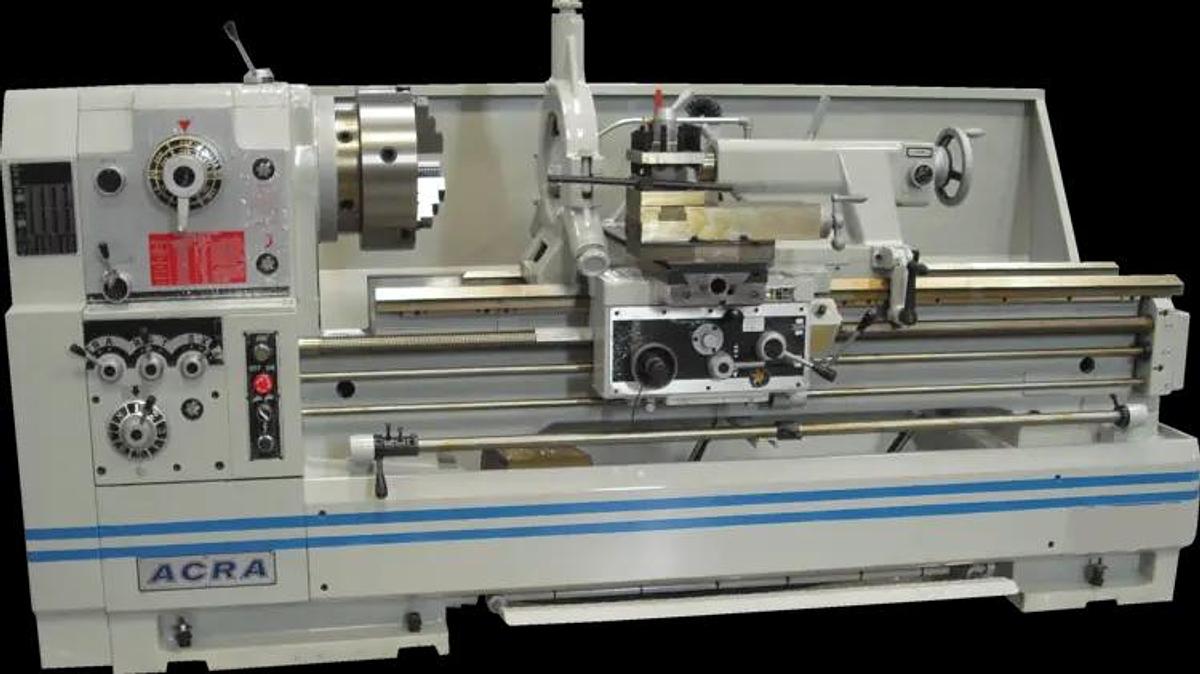

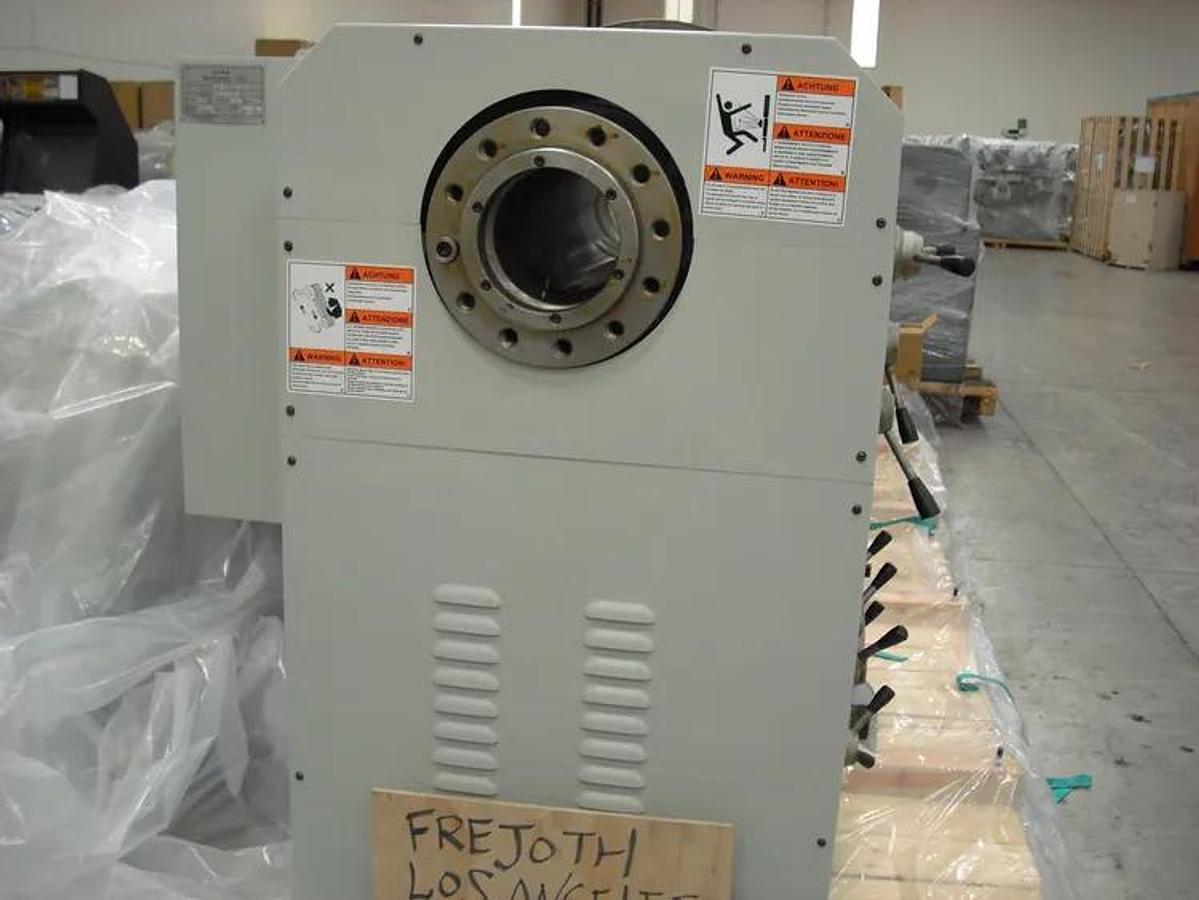

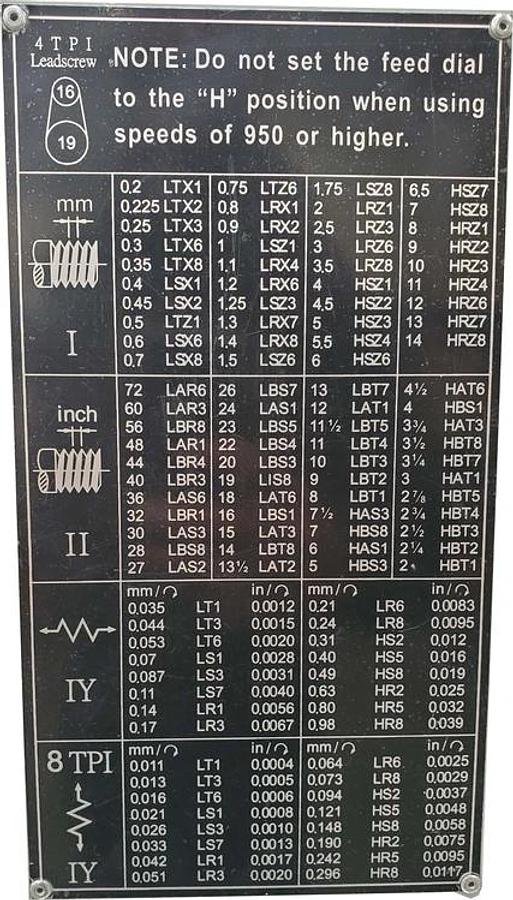

ACRA Precision Engine Lathe Model 22120ACH 22" Swing, 120" Between Centers, 4.063" Thru Hole

ACRA Precision Engine Lathe Model 22120ACH 22" Swing, 120" Between Centers, 4.063 Thru Hole Features: • MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED. • INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND. • PRECISION HAND SCRAPED REMOVABLE GAP. • FOOT BRAKE. Universal Gear Box: • OIL BATH LUBRICATION. • HEAT-TREATED GEARS. • INCH/METRIC/MODULE/DIAMETRICAL THREADS. • OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN Apron and Saddle: • MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH. • OVERLOAD PROTECTION DEVICE. • CROSS SLIDE IS HARDENED AND PRECISION GROUND. • CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED. 22" X 120" ACRA 22120ACH PRECISION GAP BED ENGINE LATHE • MEEHANTIE CAST IRON, VIBRATION STRESSES RELIEVED. • INDUCTION HARDENED (HS70 DEGREE) AND PRECISION GROUND. • PRECISION HAND SCRAPED REMOVABLE GAP. • FOOT BRAKE. Universal Gear Box: • OIL BATH LUBRICATION. • HEAT-TREATED GEARS. • INCH/METRIC/MODULE/DIAMETRICAL THREADS. • OUTPUT SHAFT IS DESIGNED WITH SAFETY PIN Apron and Saddle: • MANUAL AND AUTOMATIC LUBRICATION SYSTEM-OIL DISTRIBUTOR ADJUSTED TO LUBRICATING BED WAYS AND CROSS SIDE OR BOTH. • OVERLOAD PROTECTION DEVICE. • CROSS SLIDE IS HARDENED AND PRECISION GROUND. • CROSS SLIDE SCREWS ARE HARDENED AND OIL BATHED. • FORWARD-OFF-REVERSE LEVER. • TOP AND SADDLE SLIDE LOCKING SYSTEM. • T-SLOT COMPOUND FOR AMERICA AREA. Spindle: • SUPPORTED BY 3 PRECISION P-GRADE TAPER ROLLER BEARINGS. • DYNAMICALLY BALANCED, HARDENED AND PRECISION GROUND. • ACH-2200 SERIES-D1-11 SPINDLE NOSE, SPINDLE HOLE 4.09″ Headstock: • ALL GEARS MADE BY CHROMIUM MOLYBDENUM STEEL AND SEGMENTATION TREATED AND PRECISION GROUND. • FORCED LUBRICATION SYSTEM Tailstock: • QUILL MADE BY CHROMIUM MOLYBDENUM STEEL WITH SEGMENTATION AND PRECISION GROUND. • ACH-2200 SERIES-DIAMETER TAIL STOCK SPINDLE 2.935″ AND SPINDLE TRAVEL 7″. • TWO SPEED WITH 1:1 AND 1/4:1 CHANGE FEEDS. Standard Equipment: MAIN MOTOR 15HP CENTER SLEEVE MT No. 5 DEAD CENTER MT NO. 5 X 2 PCs LEVELING SCREW AND BLOCK SERVICE KITS AND TOOL BOX STEADY REST- 1-5/8″ -1 0″ DRIVE PLATE- 12″ FOR D1-11 ONLY COOLANT SYSTEM MULTI – POSITION LENGTH STOP FOLLOW REST STEADY REST 7- 16″ FACE PLATE- 20″ 3 JAW SCROLL CHUCK- 15″ 4 JAW INDEPENDENT CHUCK- 20″ FULL LENGTH SPLASH GUARD RAPID TRAVEL Precision Engine Lathe WEIGHT PRICE ATEL2260ACH 22X60ACH $,282 LBS $37,000.00 ATEL2290ACH 22X90ACH 7,000 LBS $39,500.00 ATEL22120ACH 22X120ACH 7,500 LBS Rapid Standard $47,500.00 Item Number ATEL-22120ACH Swing over Bed 22" (560 mm) Swing over Gap 31.37" (797 mm) Swing over Carriage 13.38" (340 mm) Gap Width 10.63" (270 mm) Bed Width 15.75" (400 mm) Between Centers 118" (2,655 mm) Spindle Spindle Nose D1-11 Spindle Bore 4-1/8" (104 mm) Spindle Speeds - 60 Hz 13, 20, 30, 47, 70, 105, 150, 230, 340, 530, 800, 1200 RPM Variable Speed is available as Option (adds $6,000) Travel Cross Slide 15.75" (352 mm) Compound Slide 9.52" (242 mm) Threads Leadscrew Diameter and Pitch 1-3/4" (45 mm) dia. x 4 TPI or 6mm Pitch Range of Inch Threads 44 kinds - 2-72 TPI Range of Metric Threads 39 kinds - 0.2 - 14mm Pitch Range of Module Threads 24 kinds - 0.2 - 3.5 MP Range of Diametrical Threads 24 kinds - 8-48 DP Longitudinal Feed mm - 36 steps 0.0014 - 0.0408 inch/rev. Cross Feed 1/2 of Longitudinal Feeds Tail Stock Quill Diameter 3" (75 mm) Quill Travel 7" (178 mm) Taper of Center MT No.5 Motor Spindle Motor 15 HP (10.5 Kw) Coolant 1/8 HP Dimension Length 146" (3700 mm) Height 49" (1500 mm) Width 47.2" (1200 mm) Net Weight 7,500 lbs. (3409 kgs)
