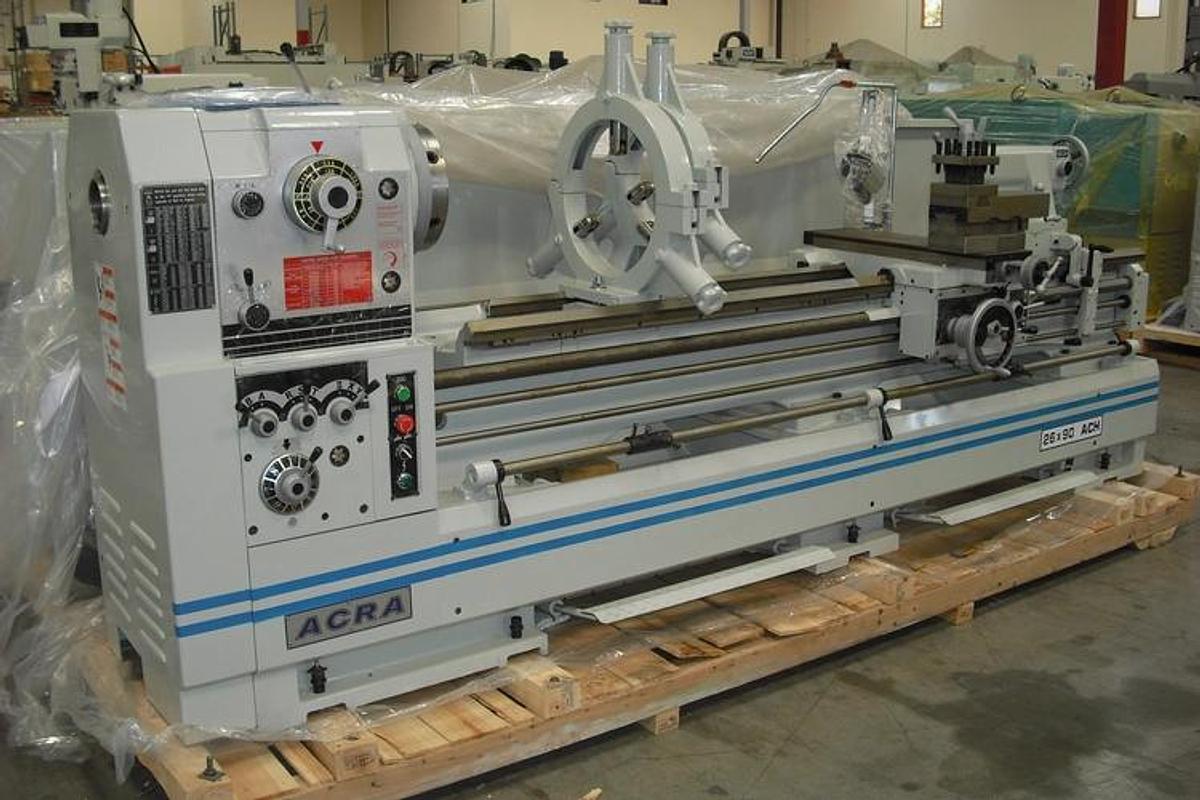

ACRA 2690 ACH PRECISION ENGINE LATHE 26" Swing x 90 Centers, Made in same factory as Kingston

$47,500

Description

ACRA 2690 ACH PRECISION ENGINE LATHE 26" Swing x 90 Centers, Made in same factory as Kingston Introducing the new ACRA 2690 ACH Precision Engine Lathe with a 26" swing and 90 centers. This hefty item weighing 7,200 lbs exhibits cutting edge technology from ACRA and delivers brilliant work with 15 hp power. Comes with a spindle bore of 4", a swing-over cross slide of 17.5", and operates at 0 RPM. Delivers excellent accuracy with longitudinal feeds ranging from 0.0012 to 0.039 in/rev and cross feeds from 0.0004 to 0.0117 in/rev. It's equipped with a 15 hp main motor, center sleeve, dead centers, leveling screw and block, service kits, toolbox, a steady rest, and a useful coolant system. Add-ons available upon request. Crafted to precision with thorough attention to detail for an unparalleled work performance. No inspection, testing or warranty included. Order this 2023 model now and revolutionize your project execution. STANDARD EQUIPMENT: 15" 3 Jaw Chuck Coolant System 4 Way Tool Holder Removable Gap Steady Rest (1-3/5" ~ 10") LED Light Full Length Splash Guard Chuck Guard Acu-Rite Digital Read-Out-16" X 90" Aloris Tool Post Set (CA) 5pc Headstock: Carriage: Threads & Feeds: Tailstock: Power: Standard Equipment: MAIN MOTOR 15 HP CENTER SLEEVE MT No. 5 DEAD CENTER MT NO. 5 X 2 PCs LEVELING SCREW AND BLOCK SERVICE KITS AND TOOL BOX STEADY REST- 1-5/8″~10″ DRIVE PLATE- 12″ FOR D1-11 ONLY COOLANT SYSTEM MULTI – POSITION LENGTH STOP

Specifications

ManufacturerACRA
Model2690 ACH
Year2023
ConditionNew
Stock Number21491
StatusFor Sale
CountryUnited States
Swing26"; 660.4 mm
Centers90"; 2,286 mm
Spindle Bore4-1/16″
Power15 hp; 11.2 kW
RPM0 RPM; 0 RPM
Swing Over Cross Slide17-3/8″
Weight7,200 lbs; 7,200 lbs
Steady Rest (1-3/5” ~ 10”)PRICE $2,200.00
Large Steady Rest (7-1/2" ~ 15")$2,450.00
7" Follow Rest$650.00
20" Face Plate$650.00
Taper Attachment$2,700.00
Taper Attachment Install$425.00
Newall Digital Read-Out-14" X 88" P700$3,750.00

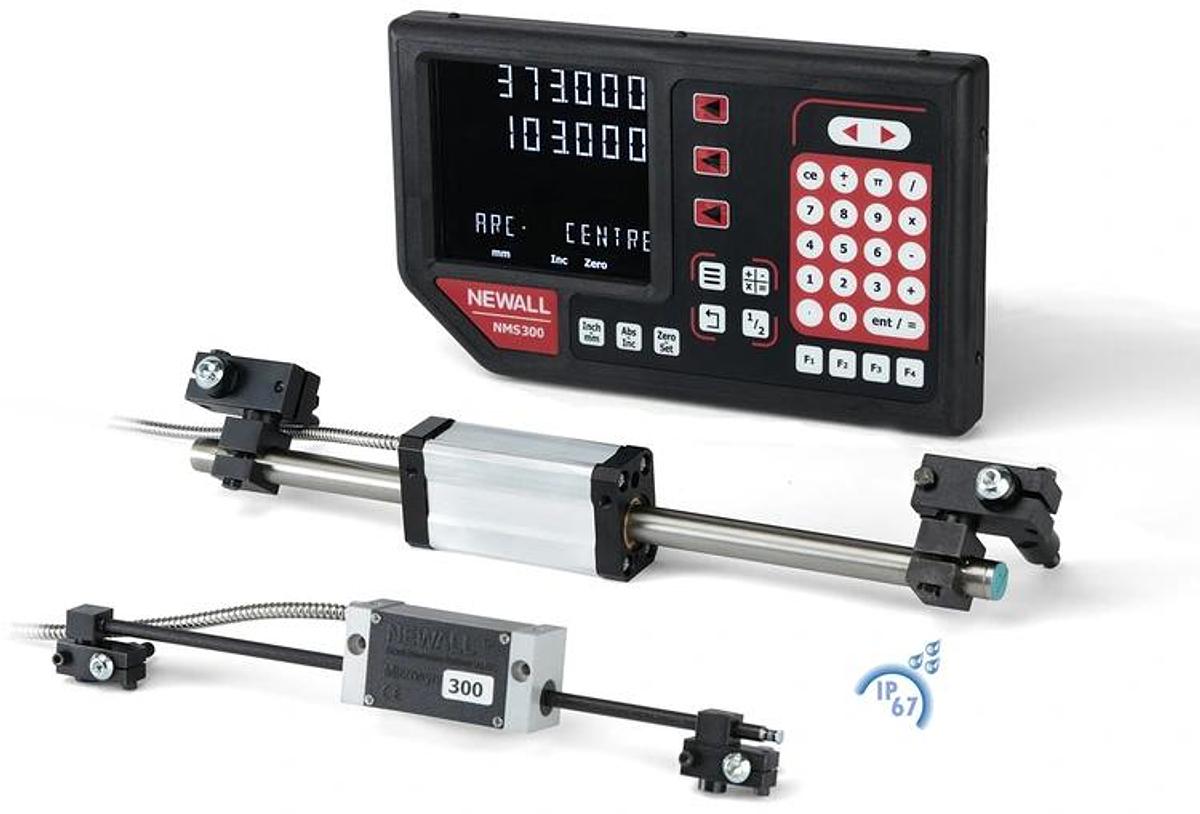

Newall Digital Read-Out-14" X 88" NMS300$1,650.00
203$3,450.00
Acu-Rite Digital Read-Out-16" X 90” 303$3,850.00
Sony or Fagor or Mitutoyo Digital Read-Out. D.R.O. InstallationP.O.R.
Import Quick Change Tool Holder$P.O.R.
Live Center MT 5$500.00
20” 4 Jaw Chuck (China)$2,000.00
16” 4 Jaw Chuck$1,200.00
Micro Carriage Stop$350.00
Swing Over Bed26″
Swing In Gap31-3/8″
Distance Between Centers90″
Bed Width15-3/4″
Center Height11″
Spindle NoseD1-11
Taper of SpindleMT NO.7 x MT NO.5
Spindle Speeds – Steps12
Spindle Speeds – Range13 ~ 1,200 RPM
Cross Slide Travel15-3/4″
Compound Slide Travel9-1/2″
Inch Threads2 ~ 72 TPI
Metric Threads0.2 ~ 14 mm
Longitudinal Feeds0.0012~0.039 in/rev
Cross Feeds0.0004 ~ 0.0117 in/rev
Quill Diameter2.935″
Quill Travel7″
Quill TaperMT NO.5
Spindle Drive Motor15 H.P./4P
Voltage230/460V AC/3 PH
