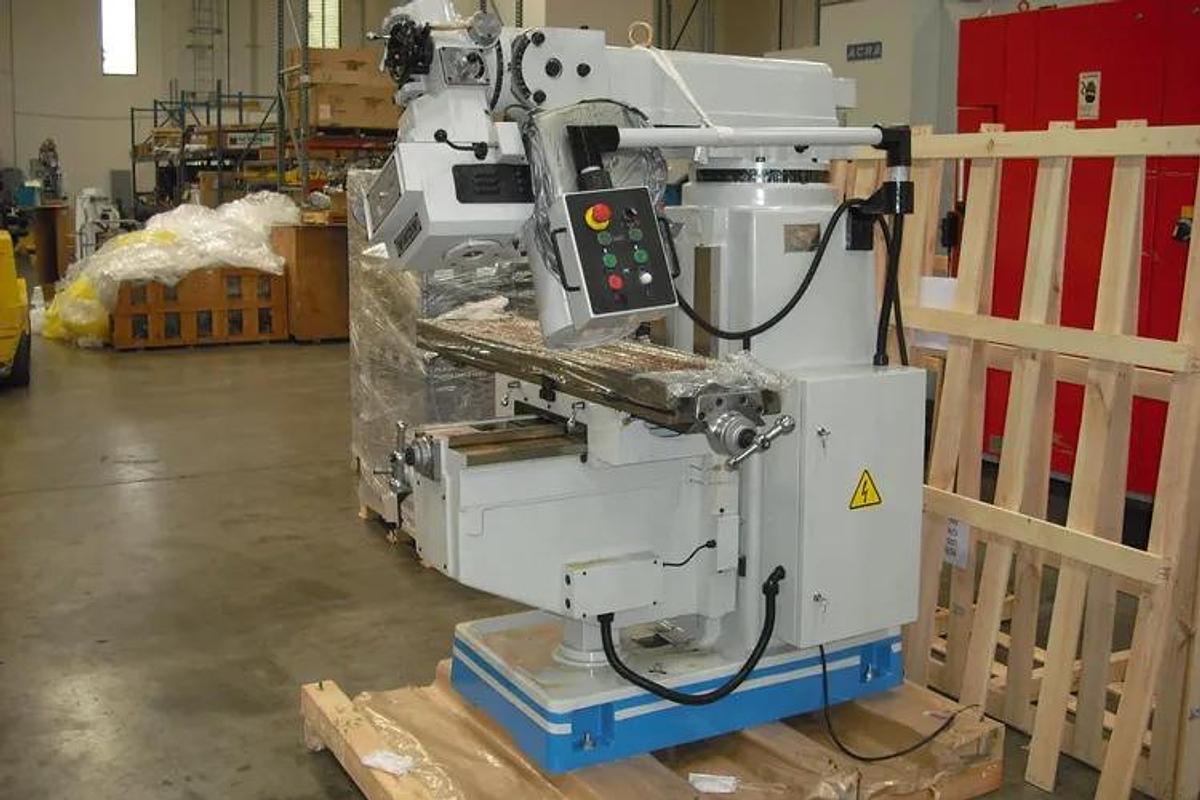

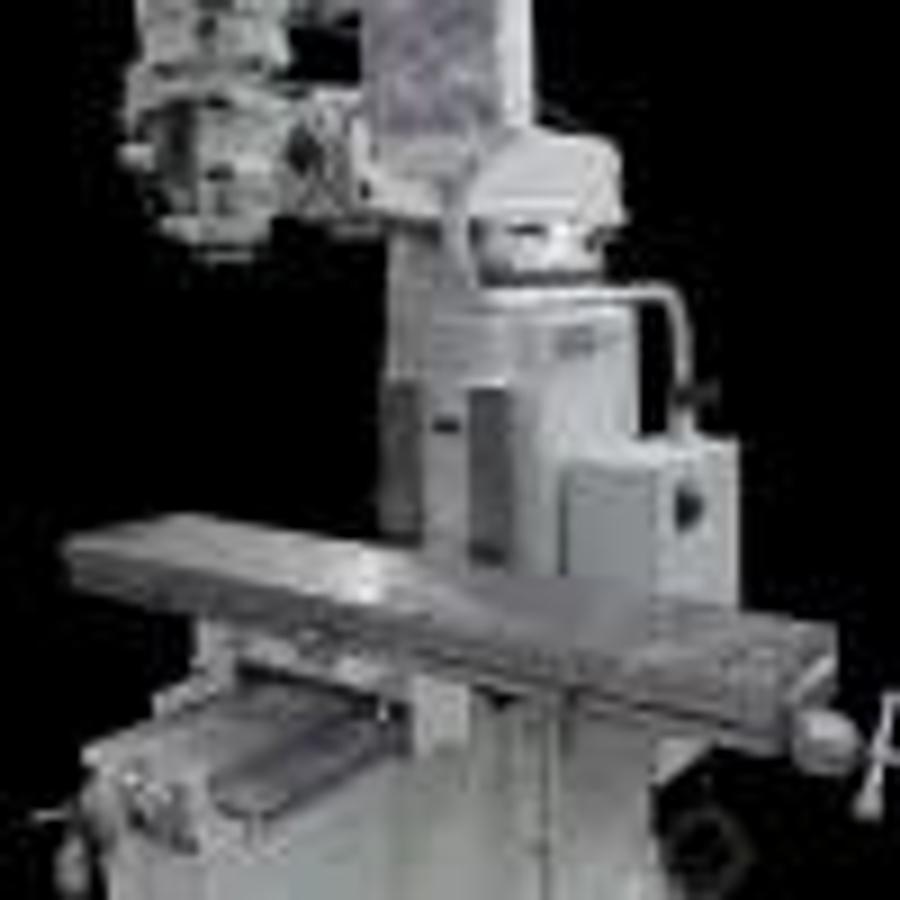

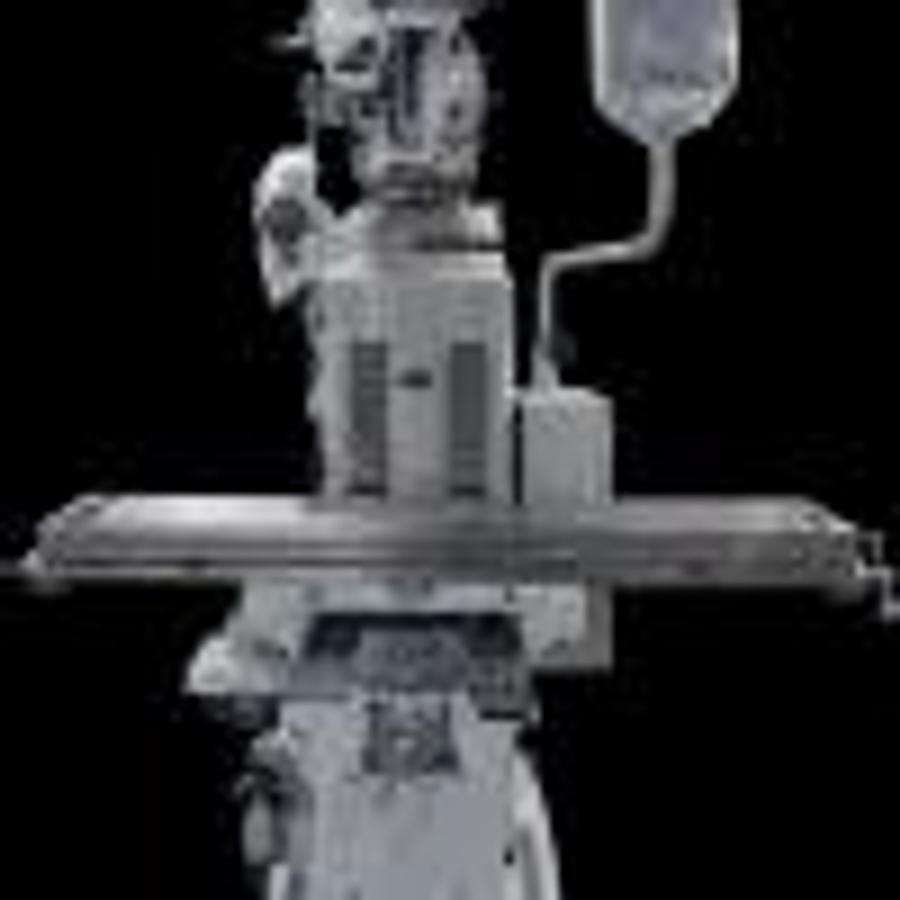

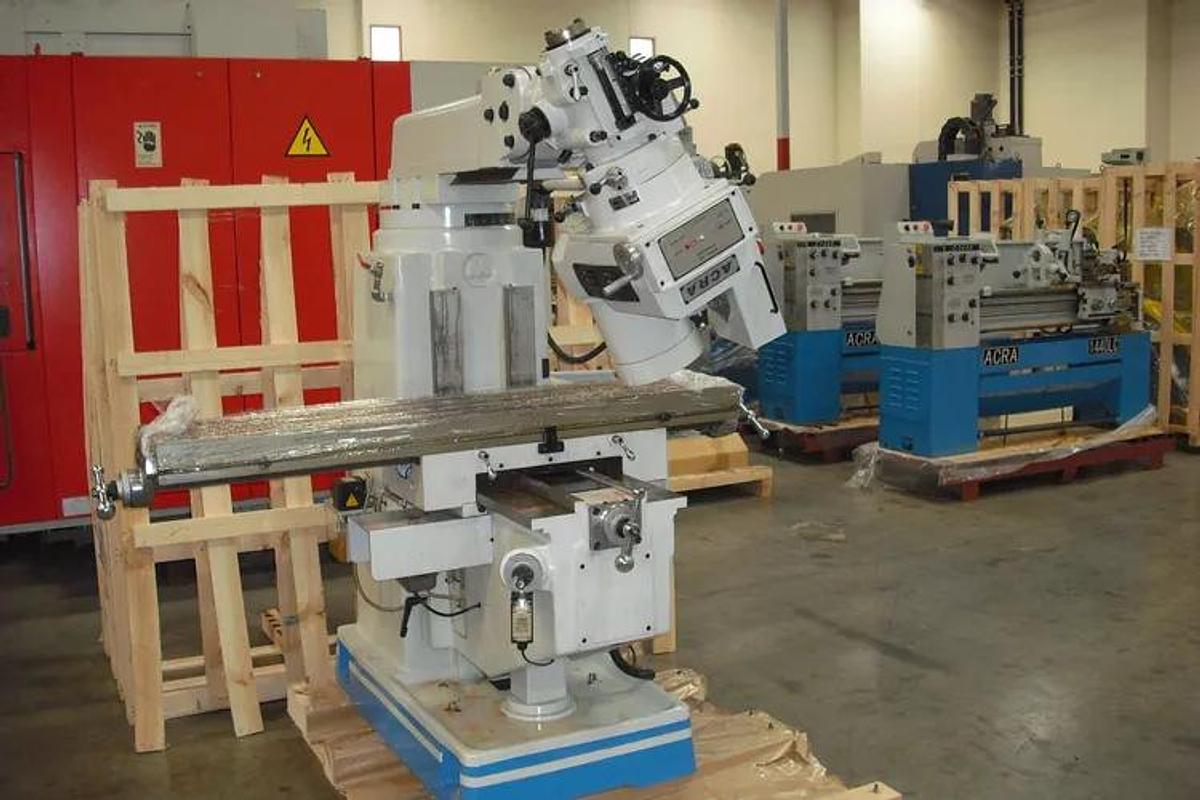

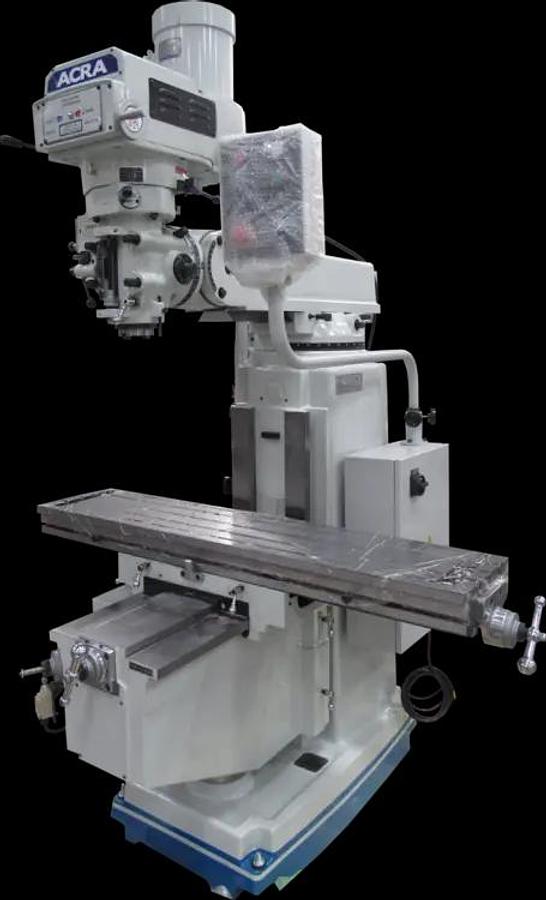

ACRA 5V Variable Speed Vertical Knee Mill Model AM5V 12.5" x 58" Table
FEATURES:
Variable Speed Mill
Class 7 Angular Contact Bearings
Certified Meehanite Casting
Build In Power Knee
Auto Lube System
Ram Locking System U.S. Patent #4990039 Utilizing 6 T-Bolts
#40 NST STD. w/ Erickson Thread
Hand Scraped Turret-Column Ways
Square Y & Z Ways
Dust Cover For Knee And Crossfeed Ways
Precision Hardened And Ground Table With Turcite
Double Wall Column
Built-In Coolant Tank In Base
Also:
Hardened & Ground Table & Ways; Double Wall Construction; Coolant System w/ Chip Tray; Quill Heat Treat Hardened & Chromed; Turcite On The X & Y Axis; Z Axis Power Rapid; Electrical Panel
OPTIONAL ACCESSORIES: PRICE
Acu-Rite 2-Axis 203…………………………………………………………………………… $2,400.00
Acu-Rite 2-Axis 303…………………………………………………………………………… $2,900.00
Newall 2-Axis D.R.O. DP700………………………………………………………………… $2,000.00
Newall 2-Axis D.R.O. NMS300…………………………………………………………………$1,600.00
Sony 2-Axis D.R.O. MILLMAN………………………………………………………………… $POR
Mitutoyo 2-Axis D.R.O KA-200…………………………………………………………………$POR
Installation For 2-Axis D.R.O……………………………………………………………………$250.00
Acu-Rite 3-Axis 203…………………………………………………………………………… $3,200.00
Acu-Rite 3-Axis 303…………………………………………………………………………… $3,600.00
Newall 3-Axis D.R.O. DP700……………………………………………………………………$2,700.00
Newall 3-Axis D.R.O. NMS300…………………………………………………………………$1,600.00
Sony 3-Axis D.R.O. MILLMAN…………………………………………………………………$POR
Mitutoyo 3-Axis D.R.O KA-200……………………………………………………………… $POR
Installation For 3-Axis D.R.O……………………………………………………………………$300.00
Power Feed X Axis Align…………………………………………………………………………$450.00
Power Feed Y Axis Align…………………………………………………………………………$550.00
Power Feed Z Axis Align………………………………………………………………………$550.00
Power Feed X Axis 140 Servo (USA)……………………………………………………$POR
Power Feed Y Axis 140 Servo (USA)………………………………………………… $POR
Power Feed X Axis 150 Servo (USA)…………………………………………$POR
Power Feed Y Axis 150 Servo (USA)……………………………………………………$POR
Power Feed Z Axis (140 Only) Servo (USA)……………………………………… $POR
Power Feed X Axis Installation…………………………………………$50.00
Power Feed Y Axis Installation……………………………………………………$100.00
Power Feed Z Axis Installation……………………………………… $100.00
Auto Oil Lubrication
Turcite B on X and Y axis
Rapid Knee Traverse
AC Frequency Control Panel
External Coolant Tank
Forward/Reverse Switch
Yaskawa Inverter 5AC
Halogen Work Light
Coolant System Chip Tray
• Turcite-B on X/Y axis.
• One-Shot Lubrication & Central Lubrication.
• Cast Iron Column for Heavy Duty.
• 2 HP AC Motor for Z-Axis up/down movement.
• Auto Oil Lubrication System w/Alarm Function for empty Oil & timer for Auto Oiler.
• Class 7 Angular Contact Bearing for the Quill.
• Level and Bolts.
• External Coolant system w/ Chip Tray
• Automatically lubrication system.
• Hand tools & box.
• Operator Manual & Parts list.
• Complete Electrical Cabinet.
• Built-in Coolant Tank.
• Halogen Worklight.
Accu-rite CNC MILLPWR G2 2 axis $33,750.00
Accu-rite CNC MILLPWR G2 3 axis $39,250.00
Quill Diameter 4.125"
Specifications
| Manufacturer | ACRA |
| Model | AM5V |
| Year | 2024 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Table-W | 12"; 304.8 mm |
| Table-L | 58"; 1,473.2 mm |
| Travel-Long | 42"; 1,066.8 mm |
| Travel-Cross | 15.5"; 393.7 mm |
| Power | 5 hp; 3.7 kW |
| RPM | 3,750 RPM; 3,750 RPM |
| Taper | NT#40; NT#40 |
| Dimensions | 85" x 75" x 98" |
| Weight | 3,948 lbs; 3,948 lbs |
| 6" Vise (China) W/Swivel | $250.00 |
| 6" Vise (Taiwan) W/Swivel | $600/800 |
| R-8 Collet Set 12 PC (China) -AM2/AM5 | $100.00 |
| R-8 Collet Set (Taiwan) - AM2/AM5 | $125.00 |
| Clamping Kit 53 PC (China) | $100.00 |
| Clamping Kit 53 PC (Taiwan) | $125.00 |
| 6" Rotary Table H/V | $450.00 |
| 8" Rotary Table H/V | $600.00 |
| 10" Rotary Table H/V | $750.00 |
| 12" Rotary Table H/V | $900.00 |
| 4" Riser Block – LCM-50 | $700.00 |
| 6" Riser Block – LCM-50 | $750.00 |
| 4” Riser Block LCTM 1,2,3 | $750.00 |
| 6” Riser Block LCTM 1,2,3 | $850.00 |
| 4" Riser Block – AM2, AM5 | $700.00 |
| 6" Riser Block – AM2, AM5 | $750.00 |
| 8" Riser Block – AM2, AM5 | $850.00 |
| Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) | $750.00 |
| Right Angle Milling Attachment R-8 / #30 Taper | $1,100.00 |
| Right Angle Milling Attachment #40 Taper | $1,450.00 |
| Right Angle Head R8 | $750.00 |
| Right Angle Head R30 | $750.00 |
| Right Angle Head #40 | $900.00 |
| Coolant System / Chip Tray | $850.00 |
| Safety Handle | $90.00 |
| Quick Change Tool Set (17PC) - AM2 | $350.00 |
| Quick Change Tool Set (17PC) - AM5 | $400.00 |
| Auto Lube Exchange | $300.00 |
| Auto Lube | $400.00 |
| ACRA LC Series Variable speed (R8 or #30NST) | $5,000.00 |
| ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) | $3,500.00 |
| ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) | $4,500.00 |
| ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) | $5,500.00 |
| NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1) | $250.00 |
| Baldor Motor | $750.00 |
| Acu-Rite 2-Axis 203 | $2,400.00 |
| Acu-Rite 2-Axis 303 | $2,900.00 |
| Newall 2-Axis D.R.O. DP700 | $2,000.00 |
| Newall 2-Axis D.R.O. NMS300 | $1,200.00 |
| Sony 2-Axis D.R.O. MILLMAN | $P.O.R. |
| Mitutoyo 2-Axis D.R.O KA-200 | $P.O.R. |
| Installation For 2-Axis D.R.O | $250.00 |
| Acu-Rite 3-Axis 203 | $3,200.00 |
| Acu-Rite 3-Axis 303 | $3,600.00 |
| Newall 3-Axis D.R.O. DP700 | $2,700.00 |
| Newall 3-Axis D.R.O. NMS300 | $1,600.00 |
| Sony 3-Axis D.R.O. MILLMAN | $P.O.R. |
| Mitutoyo 3-Axis D.R.O KA-200 | $P.O.R. |
| Installation For 3-Axis D.R.O | $300.00 |
| Power Feed X Axis Align | $450.00 |
| Power Feed Y Axis Align | $550.00 |
| Power Feed Z Axis Align | $550.00 |
| Power Feed X Axis 140 Servo (USA) | $P.O.R. |
| Power Feed Y Axis 140 Servo (USA) | $P.O.R. |
| Power Feed X Axis 150 Servo (USA) | $P.O.R. |
| Power Feed Y Axis 150 Servo (USA) | $P.O.R. |
| Power Feed Z Axis (140 Only) Servo (USA) | $P.O.R. |
| Power Feed Installation X Axis | $50.00 |
| Power Feed Installation Y Axis | $100.00 |
| Power Feed Installation Z Axis | $100.00 |
| Table Size | 12-1/2″ x 58″ |
| X, Y, Z Axis Travel | 40" x 15.5" |
| Knee Motor | Two HP |
| Main Motor | 5 HP Spindle |
| Vertical/Horizontal Spindle | #40 NST |
| Spindle RPM | 50 - 3,750 RPM |
| Voltage | 230/460V ~ 3PH |
| Longitudinal Table Travel / X-Axis | 40″ |
| Cross Table Travel / Y-Axis | 15-1/2″ |
| Number of T-Slots | 3 |
| T-Slot Size | 5/8″ |
| T-Slot Centers | 2-1/2″ |
| Max. Weight of Workpiece | 1200 lbs |
| Travel of Knee / Z-Axis | 16″ |
| Overarm Travel | 21″ |
| Drilling Capacity in Cast Iron | OD-1″ |
| Drilling Capacity in Steel | OD-3/4″ |
| Capacity Face Milling | OD-4″ ~ 1/8″ Depth |
| Capacity End Milling | OD-3/4″ ~ 1/4″ Thickness |
| Spindle Taper | NT-40 |
| Diameter of Quill | 4-1/8″ |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds | 50-3,750 rpm |
| Power Down Feed per Revolutions of Spindle | .0015/ .0003/ .0006 inch/rev. |
| Number of Power Feeds | 3 |
| Spindle Travel | 5″ |
| Head Movement (Left/Right) | 90° |
| Head Tilt (Forward/Back) | 45° |
| Distance Spindle to Table | 3″ – 22″ |
| Max. Distance Spindle to Column | 25-3/8″ |
| Min. Distance Spindle to Column | 5″ |
| Collet Capacity | 1/8″- 7/8″ |
| Horse Power for Main Motor | 5HP |
| Horse Power for Knee Motor | 2HP |
