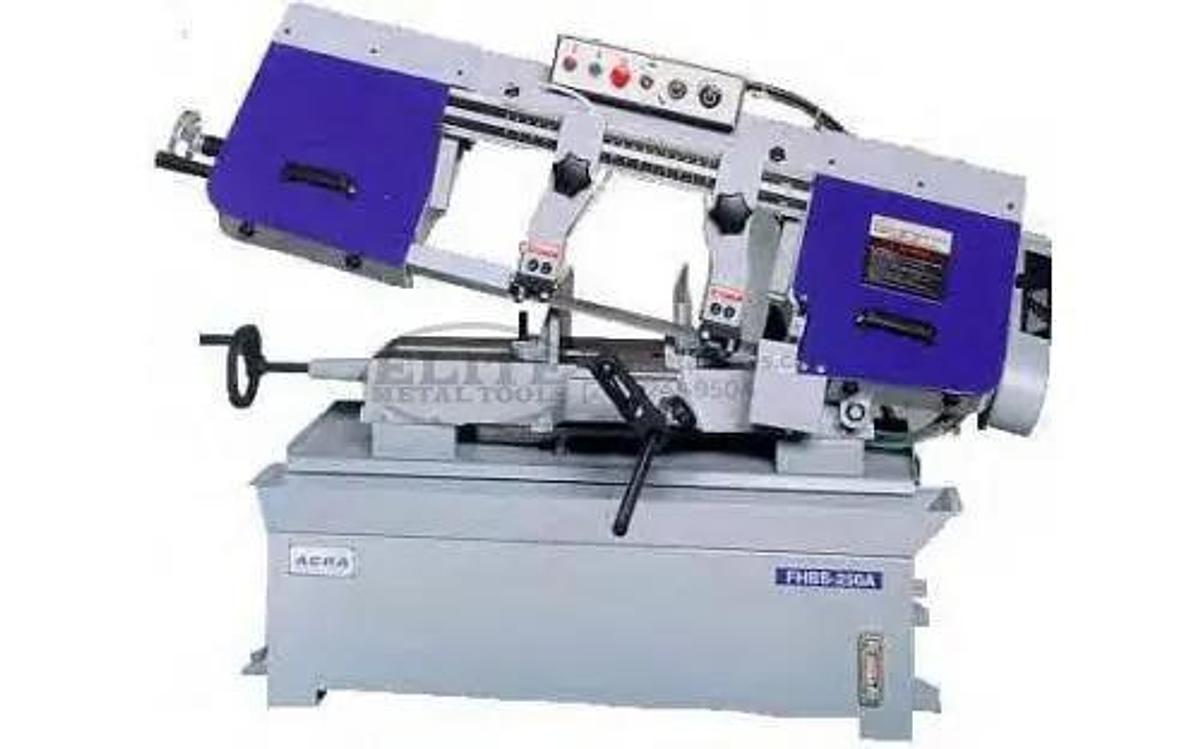

ACRA Semi-Auto Variable Speed Horizontal Bandsaw Model BS-250V 9" x 16" rect. capacity; 10" round
Description
ACRA Semi-Auto Variable Speed Horizontal Bandsaw Model BS-250V 9" x 16" rect. capacity; 10" round Our powerful and high quality line of Bandsaws will cut through your work pieces quickly and accurately. We offer Vertical and Horizontal Bandsaws; Manual, Semi-Automatic and Fully Automatic Bandsaws; Hydraulics Bandsaws; and Coldsaws. Horizontal Bandsaws Large Handwheel And Build-In Gauge For Easy Blade Tensioning Built In Coolant, And Coolant Is Distributed Through The Blade Guides Carbide Tungsten Blade Guide Supported By Bridge Type Portable Frame Blade Brush Is Build-In And Self Propelled Quick Positioning Clamping Vise With Fully Adjustable Jaws The Rapid Action Vice With 90 To 60 Full Mitering Removable Chip Tray For Easy Clean Up Fully Adjustable Hydraulic Down Feed With Separate On/Off Valve Heavy Duty Cast-iron Construction Low Voltage Control With Overload Protection Centralized Control Panel Standard Coolant ACRA Variable Speed Horizontal Bandsaw BS-250V Features: Variable Speed Horizontal Bandsaws Large Handwheel And Build-In Gauge For Easy Blade Tensioning Built In Coolant, And Coolant Is Distributed Through The Blade Guides Carbide Tungsten Blade Guide Supported By Bridge Type Portable Frame Blade Brush Is Build-In And Self Propelled Quick Positioning Clamping Vise With Fully Adjustable Jaws The Rapid Action Vise Removable Chip Tray For Easy Clean Up Fully Adjustable Hydraulic Down Feed With Separate On/Off Valve Heavy Duty Cast-iron Construction Low Voltage Control With Overload Protection Centralized Control Panel Standard Coolant Specifications
Specifications
| Manufacturer | ACRA |
| Model | BS 250V |
| Year | 2025 |
| Condition | New |
| Stock Number | 22293 |
| Status | For Sale |
| Country | United States |
| Rect-Cap (H) | 10"; 254 mm |
| Rect-Cap (W) | 15"; 381 mm |
| Rounds-Cap | 10"; 254 mm |
| Power | 2 hp; 1.5 kW |
| Blade Width | 1.06"; 26.924 mm |
| Blade Thickness | 0.35"; 8.89 mm |
| Blade Length | 130"; 3,302 mm |
| Dimensions | 68" x 30" x 33.5"; 68" x 30" x 33.5" |
| Weight | 840 LBS |
| Throat Depth | 10 1/2" |
| Blade Speed | 82~259 FPM |
| Blade Size | 1" x 0.35" x 135" |
| Voltage | 220/440V AC/3PH |
| Capacity (Round) 90° | 10" |
| Capacity (Round) 45° | 8 1/2" |
| Capacity (Rect.) 90° | 10" x 15" |
| Capacity (Rect.) 45° | 10" x 9 1/2" |
| Swivel Base | 0 |
| Main Motor | 2 HP |
| Bed Height | 23 1/2" |
| Floor Space | 68" x 30" x 44 1/2" |
| Gross Weight | 925 LBS |
