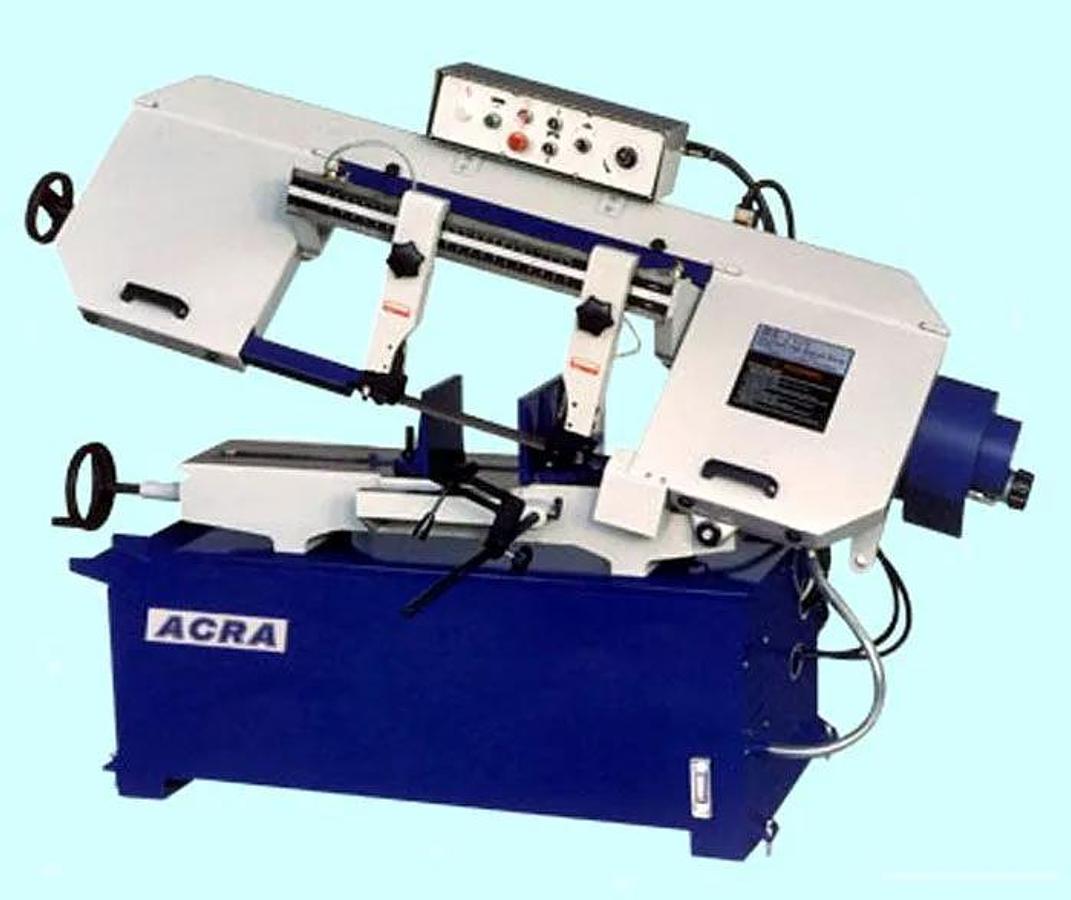

ACRA Semi-Auto Variable Speed, Swivel Head (60-90 degree Miter) Horizontal Bandsaw Model BS-250VS 9" x 16" rect. capacity; 10" round
$8,500
Description
Introducing the ACRA Semi-Auto Variable Speed Horizontal Band Saw Model BS-250VS - a product of precision and power. Boasting a 9" x 16" rectangular capacity and 10" round capacity, this model is designed to deliver on all your cutting requirements. Quality is evident in its specifications - a powerful 2 hp motor, a broad 10-1/2″ throat depth, and a blade size of 1.06″ x 0.35″ x 130″, among others. It is equipped with numerous features including but not limited to a manual and hydraulic down feed, a cool-running carbide tungsten blade guide and a quick positioning clamping vise with fully adjustable jaws. Safety is highlighted with a built-in magnetic switch turning off the bandsaw after a cut is made. A solid, heavy-duty construction assures longevity. This 2023 model is brand new and it is ready to enhance efficiency in your workshop. Note: Dimensions are 70 × 32 × 46 in, and it weighs 1,150 lbs.
Acra’s BS-250VS Variable Speed Horizontal Bandsaw with Swivel (Miter) Head has a variable speed drive system and a powerful 2 hp motor and heavy duty gearbox. The Down force is controlled by hydraulic damper and it has been fitted with a magnetic switch with auto off after cut has been made. It also features the following:
• Large Hand Wheel And Build-In Gauge for Easy Blade Tension.
• Built In Coolant, And Coolant Is Distributed Through The Blade Guides.
• Carbide Tungsten Blade Guide Supported by Bridge Type Portable Frame.
• Blade Brush Is Build-In and Self Propelled.
• Quick Positioning Clamping Vise with Fully Adjustable Jaws the Rapid Action Vice.
• With 90 To 60 Degree Full Mitering.
• Removable Chip Tray for Easy Clean Up.
• Fully Adjustable Hydraulic Down Feed with Separate On/Off Valve.
• Heavy Duty Cast-iron Construction.
• Low Voltage Control with Overload Protection.
• Centralized Control Panel.
• Swivel Head
• Variable Speed Drive
Weight 1,150 lbs
Dimensions 70 × 32 × 46 in
Specifications
| Manufacturer | ACRA |
| Model | BS 250VS |
| Year | 2023 |
| Condition | New |
| Status | For Sale |
| Country | United States |
| Rect-Cap (H) | 10"; 254 mm |
| Rect-Cap (W) | 15"; 381 mm |
| Rounds-Cap | 10"; 254 mm |
| Power | 2 hp; 1.5 kW |
| Blade Width | 1"; 25.4 mm |
| Blade Thickness | 0.035"; 0.889 mm |
| Blade Length | 130"; 3,302 mm |
| Dimensions | 70" x 32" x 40"; 70" x 32" x 40" |
| Weight | 1,150 lbs; 1,150 lbs |
| Capacity (Round) 90° | 10″ |
| Capacity (Round) 45° | 8-1/2″ |
| Capacity (Rect.) 90° | 9″ x 16″ |
| Capacity (Rect.) 45° | 10″ x 9-1/2″ |
| Throat Depth | 10-1/2″ |
| Swivel Base | 0~45 Degrees |
| Bed Height | 23-1/2″ |
| Blade Speeds | 82~259 FPM |
| Blade Size | 1.06″ x 0.35″ x 130″ |
| Main Motor | 2 HP |
| Voltage | 220/440V AC/3 PH |
