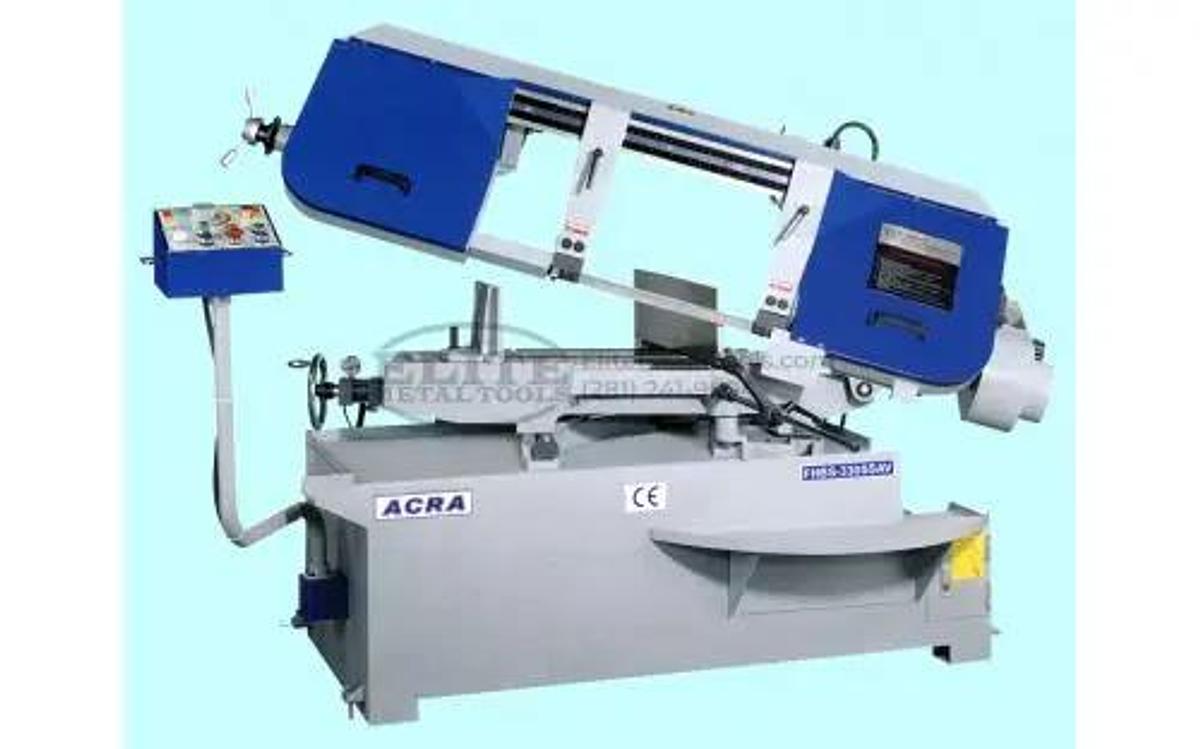

ACRA 13" Variable Speed / Semi Auto / Miter Horizontal Bandsaw Model BS 330 SSA

$13,500

Description

ACRA 13" Variable Speed / Semi Auto / Miter Horizontal Bandsaw Model BS 330 SA Made in Taiwan Acra’s BS330SSA Semi-Auto Variable Speed Mitering Horizontal Band Saw features the following: Standard with Variable Speed, Semi-Auto operation, and Mitering. Large Hand wheel And Build-In Gauge for Easy Blade Tension. Built in Coolant and Coolant is Distributed Through the Blade Guides. Carbide Tungsten Blade Guide Supported by Bridge Type Portable Frame. Blade Brush is Build-In and Self Propelled. Quick Positioning Clamping Vise with Fully Adjustable Jaws the Rapid With 90 To 60 Full Mitering Removable Cip Tray For Easy Clean Up Fully Adjustable Hydraulic Down Feed With Separate On/Off Valve Heavy Duty Cast-iron Construction Low Voltage Control With Overload Protection Centralized Control Panel Hydraulic Vise Has Switch Controls For Securing And Releasing Standard Coolant. STANDARD EQUIPMENT: Coolant Blade Guide Centralized Control Panel Removable Chip Tray Quick Position Vise Fully Adjustable Hydraulic Down Feed 90~60 Degree Mitering Heavy-Duty Cast-Iron Construction Blade Brush Features: Variable Speed / Semi Auto / Miter Horizontal Bandsaws Large Handwheel And Build-In Gauge For Easy Blade Tensioning Built In Coolant, And Coolant Is Distributed Through The Blade Guides Carbide Tungsten Blade Guide Supported By Bridge Type Portable Frame Blade Brush Is Build-In And Self Propelled Quick Positioning Clamping Vise With Fully Adjustable Jaws The Rapid Action Vice With 90 To 60 Full Mitering Removable Chip Tray For Easy Clean Up Fully Adjustable Hydraulic Down Feed With Separate On/Off Valve Heavy Duty Cast-iron Construction Low Voltage Control With Overload Protection Centralized Control Panel Mitering saw

Specifications

ManufacturerACRA
ModelBS 330 SSA
Year2023
ConditionNew
StatusFor Sale
CountryUnited States
Rect-Cap (H)11.5"; 292.1 mm
Rect-Cap (W)18.875"; 479.42 mm
Rounds-Cap13"; 330.2 mm
Square-Cap11.511"; 292.38 mm
Power3 hp; 2.2 kW
Type (Auto, Manual, Semi)Semi; Semi
Blade Width1.25"; 31.75 mm
Blade Thickness0.35"; 8.89 mm
Blade Length162"; 4,114.8 mm
Dimensions90" x 40" x 65"; 90" x 40" x 65"
Weight1,892 lbs; 1,892 lbs
Capacity (Round)13"
Capacity (Rect.)11 1/2" x 18 7/8"
Blade Speed66~264 FPM
Blade Size1 1/4" x 0.35" x 162"
Motor3 HP
Voltage230/460V AC 3 PH
