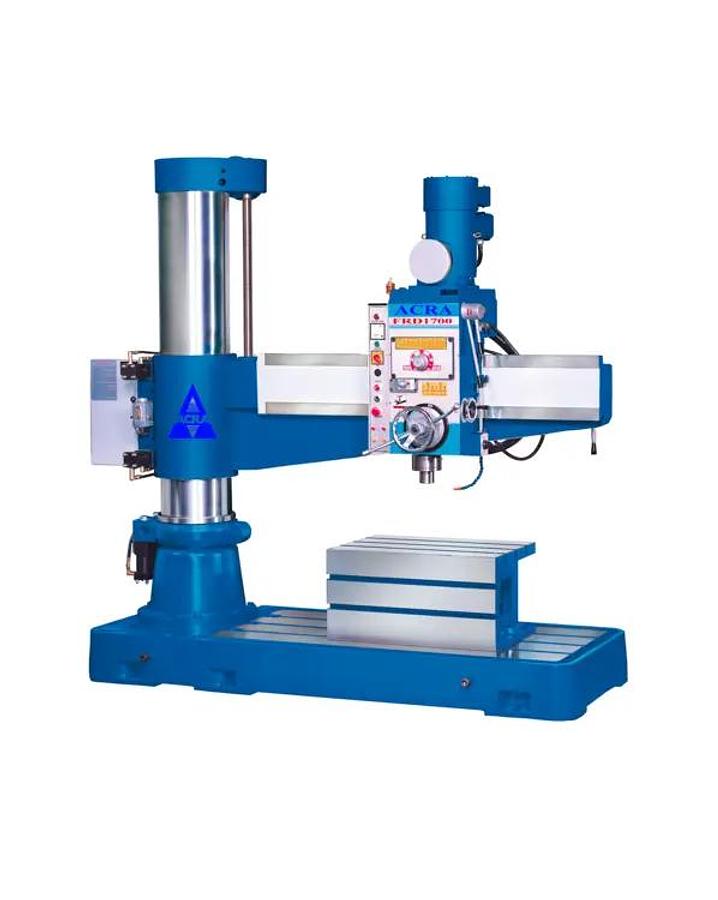

4' x 13" ACRA Radial Arm Drill, Steel Drilling Capacity 2-1/8" - FRD-1700

$40,000
or
Call 1+847-571-0523
Get Financing

Description

4' x 13" ACRA Radial Arm Drill, Steel Drilling Capacity 2-1/8" - FRD-1700 Made in Taiwan • Machine Casting is made with FC-30 cast-iron. • Each Spindle transmission is installed to ensure complete protection. • Precise and easy to operate. • Independent security system control designed for the electrical supply system. • Built with a worm gear and has a shaft designed for the transmissible system. Energy-saving and durable. Roller Bearing At Basement Is Built Round A Double Column Provides Max. Rigidity And Accuracy Protection Design For Limitary Safety Is Utilized In Every Transmission Section Separate Speed Operation On Locking Installation Easy And Convenient To Operate. Excellent & Exact Precision Opening Model On Precision Heavy Duty Installation. Easy To Save And Repair. 12 Speed Gear Box With More Function. Standard Coolant System, Tool Box, And Box Table Standard Equipment: • Coolant System • Box Table • Work Light • Emergency Stop • Toolbox • Manual & Parts List Voltage: 230/460V AC~3 Phase (2 Speed) Weight 7,200 lbs Dimensions 113 × 48 × 101 in
Show All

Specifications

ManufacturerACRA
ModelFRD 1700
Year2023
ConditionNew
Stock Number21650
StatusFor Sale
CountryUnited States
Arm Length4'; 1.2 m
Column Dia.13.219"; 335.76 mm
Power7.5 hp; 5.6 kW
RPM1,300 RPM; 1,300 RPM
Dimensions113" × 48" × 101"; 113" × 48" × 101"
Weight7,160 LBS.; 7,160 LBS.
Drilling Capacity Steel2-1/8″
Drilling Capacity Cast Iron2-1/2”
Tapping Capacity Steel1-15/16”
Tapping Capacity Cast Iron2-3/8”
Boring Capacity Steel7.3”
Boring Capacity Cast Iron9.8”
Spindle Diameter3-1/16″
Spindle Stroke9-7/8”
Spindle TaperMT#5
Spindle Speeds (12)25-1,300 RPM
Spindle Feeds0.002-0.012 IPR
Column Diameter13-7/32″
Spindle to Column Center15.7” ~ 66.9”
Base to Spindle10.2” ~ 55.9”
Horizontal Travel of Headstock51.5”
Spindle Drive Motor7.5 HP
Arm Elevation Motor2 HP
Coolant Pump Motor1/8 HP
Hydraulic Motor1 HP
