Description

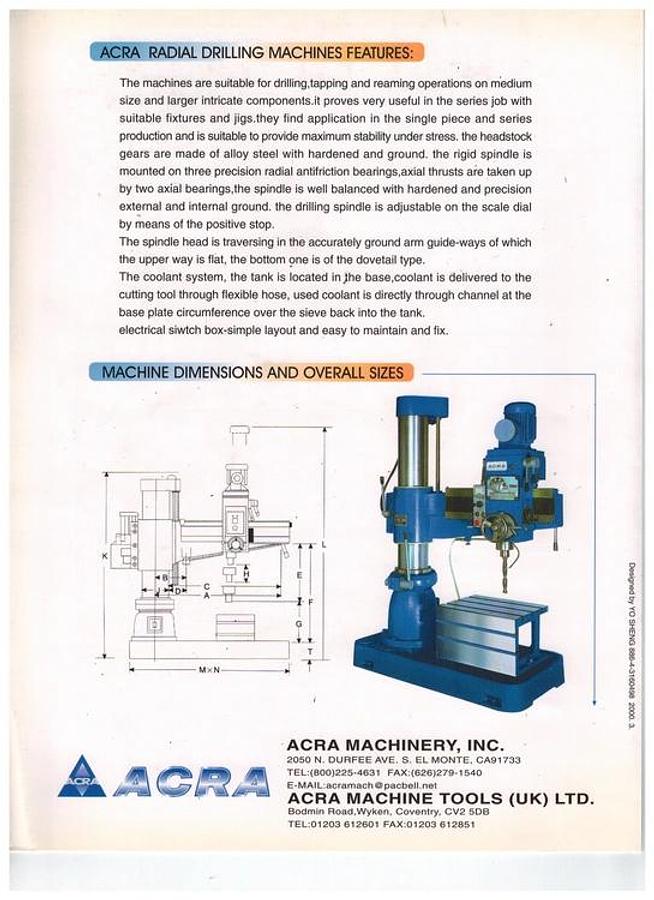

A Features
Roller Bearing At Basement Is Built Round A Double Column Provides Max. Rigidity And Accuracy
Protection Design For Limitary Safety Is Utilized In Every Transmission Section
Separate Speed Operation On Locking Installation Easy And Convenient To Operate. Excellent & Exact Precision
Opening Model On Precision Heavy Duty Installation. Easy To Save And Repair.
12 Speed Gear Box With More Function.
Standard Coolant System, Tool Box, And Box Table

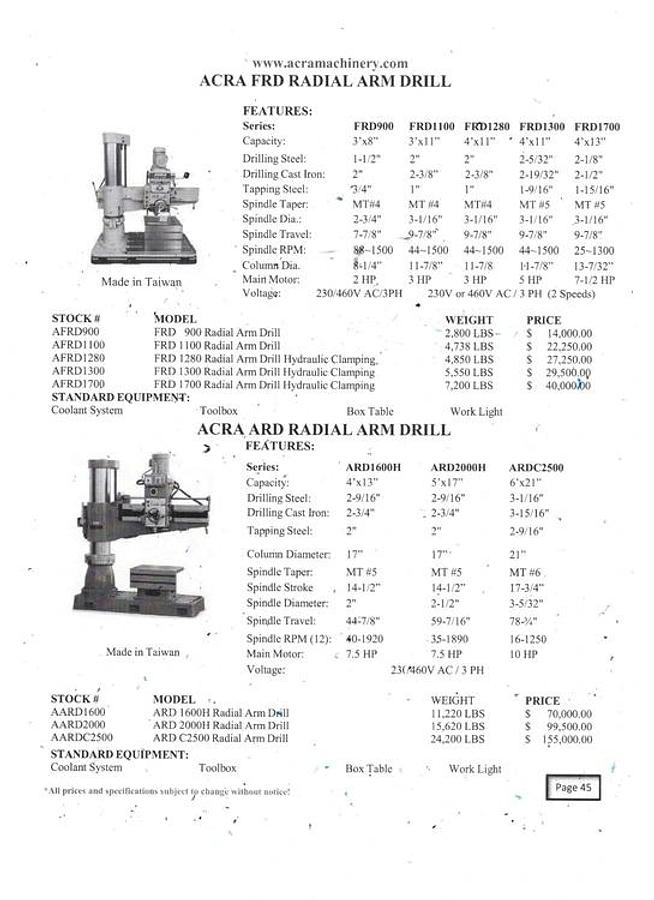

CRA FRD 900 3 Foot Radial Drill Press
Made in Taiwan
Standard Equipment:
• Coolant System
• Box Table 21.75" x 16" x12.375"
• Work Light
• Toolbox
• Manual & Parts List
OPTIONAL ACCESSORIES
Quick change tapping collets set
Cross table
Tilting vise
Drill sleeve-extension, long and standard

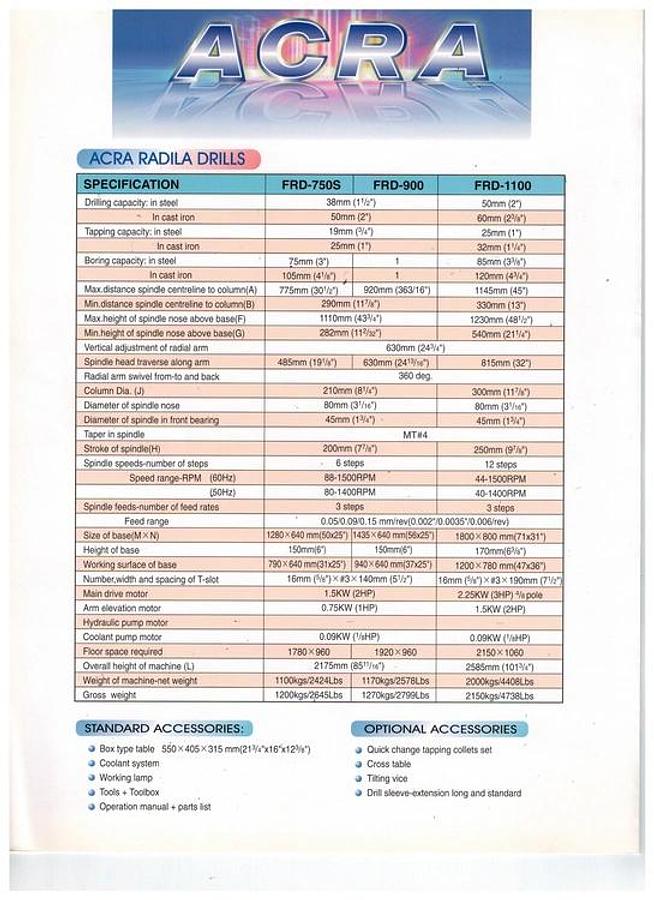

Specifications
Specifications
| Manufacturer | ACRA |
| Model | FRD 900 |
| Year | 2023 |
| Condition | New |
| Stock Number | 21452 |
| Status | For Sale |
| Country | United States |
| Arm Length | 36"; 0.9 m |
| Column Dia. | 8.25"; 209.55 mm |
| Power | 2 hp; 1.5 kW |
| RPM | 1,500 RPM; 1,500 RPM |
| Dimensions | 62" x 32" x 81"H; 62" x 32" x 81"H |
| Weight | 2,578 LBS |
| Drilling Capacity Steel | 1 1/2" |
| Drilling Capacity Cast Iron | 2" |
| Tapping Capacity Steel | 3/4" |
| Tapping Capacity Cast Iron | 1" |
| Spindle Stroke | 7 7/8" |
| Spindle Taper | MT #4 |
| Spindle Speed (# Steps) | (6) 88~1500RPM |
| Spindle Feeds | 0.02~0.006 IPR |
| Spindle Diameter | 2 3/8" |
| Column Diameter | 8 1/4" |
| Max Dist Spindle Center To Column | 36 3/16" |
| Min Dist Spindle Center To Column | 11 7/8" |
| Max Dist Base To Spindle | 43 3/4" |
| Min Dist Base To Spindle | 11 2/32" |
| Horizontal Travel Of Headstock | 24 13/16" |
| Spindle Drive Motor | 2 HP |
| Arm Elevation Motor | 1 HP |
| Coolant Pump Motor | 1/8 HP |
| Voltage | 220/440 V |
| Shipping Weight | 2,800 LBS |
| Dimension (L x W x H) | 62" x 32" x 81" |
