2006 ACRA HR 780x 3000G Engine Lathe

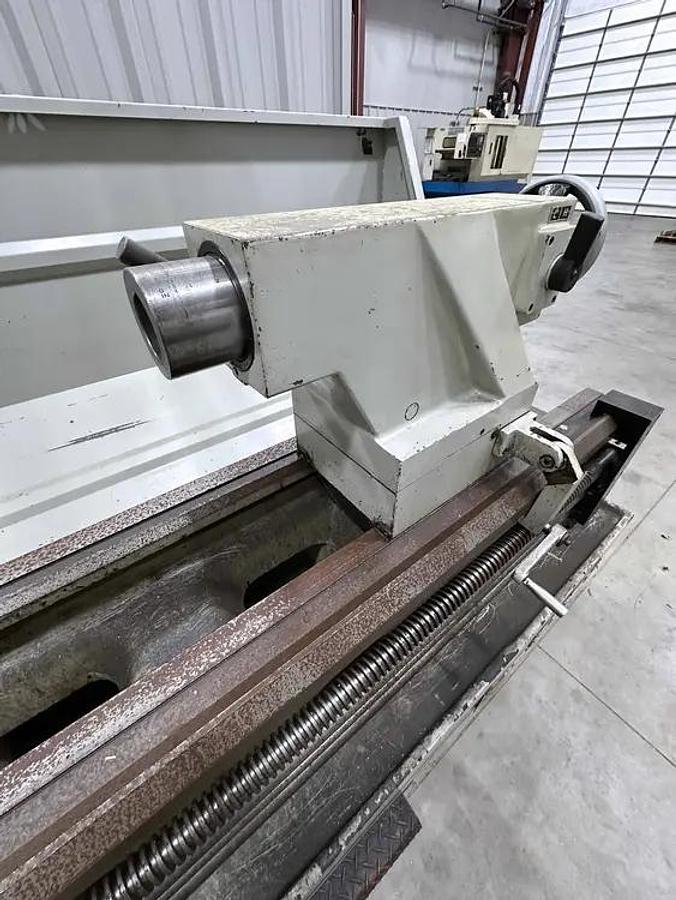

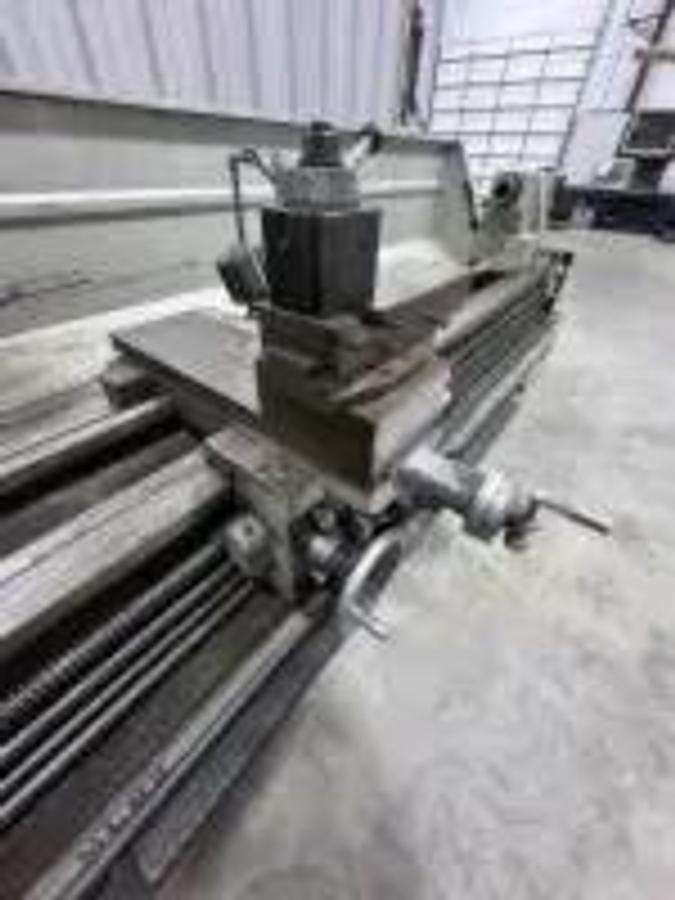

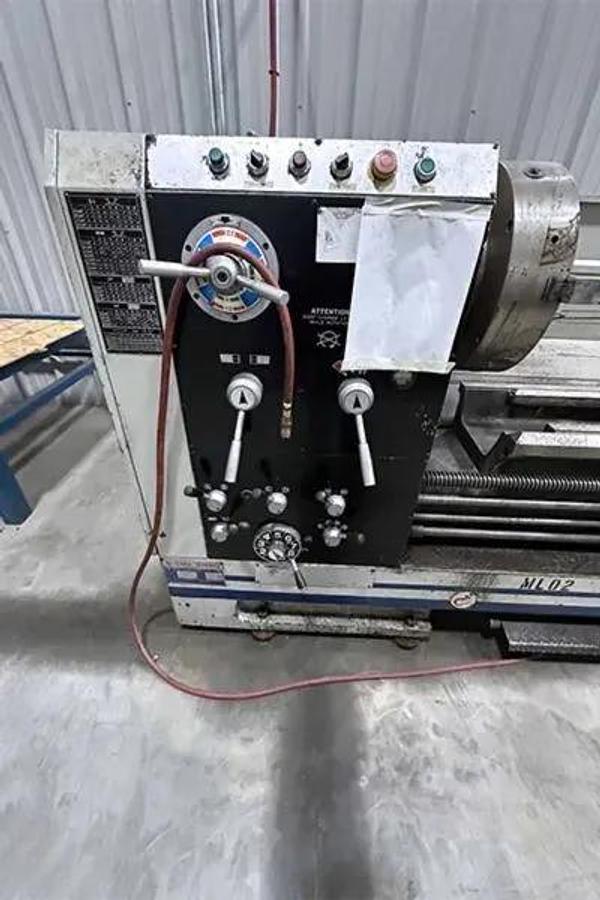

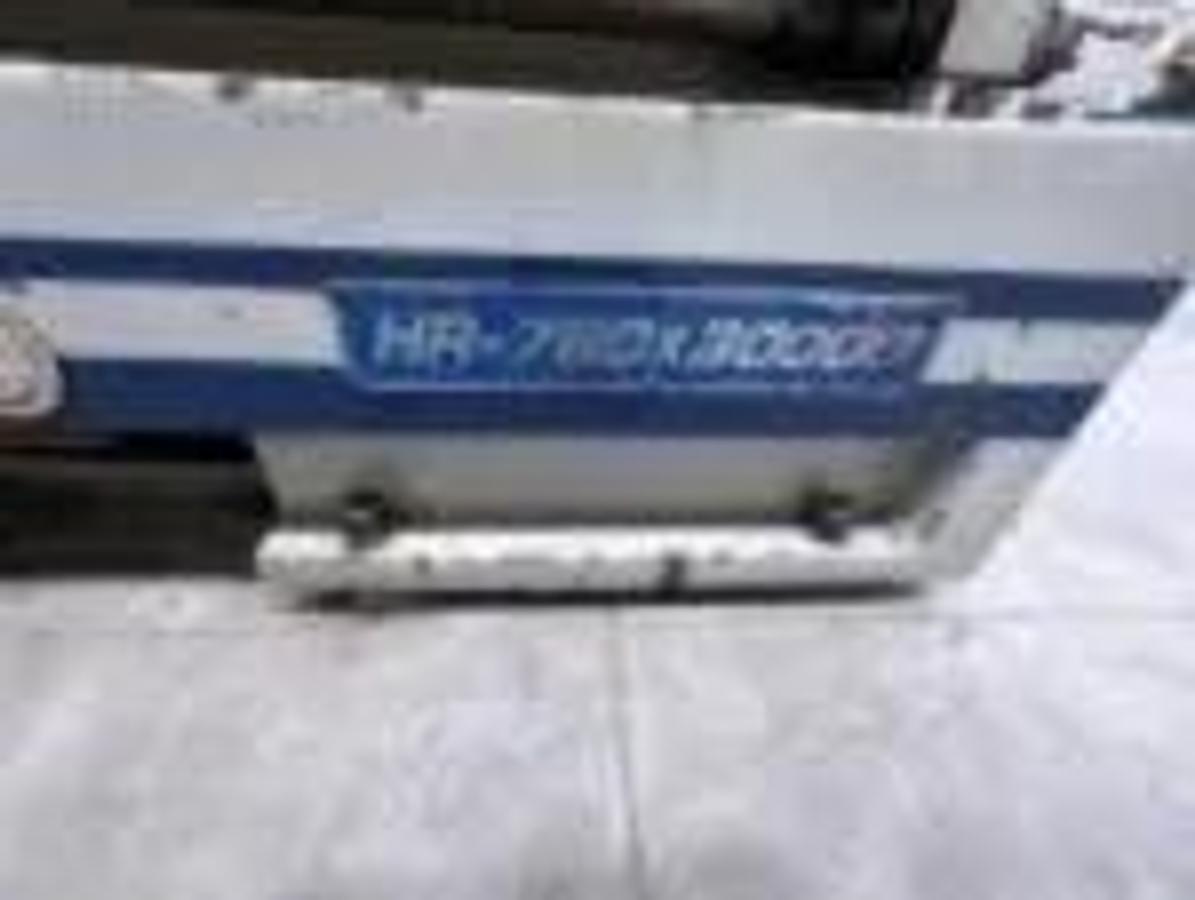

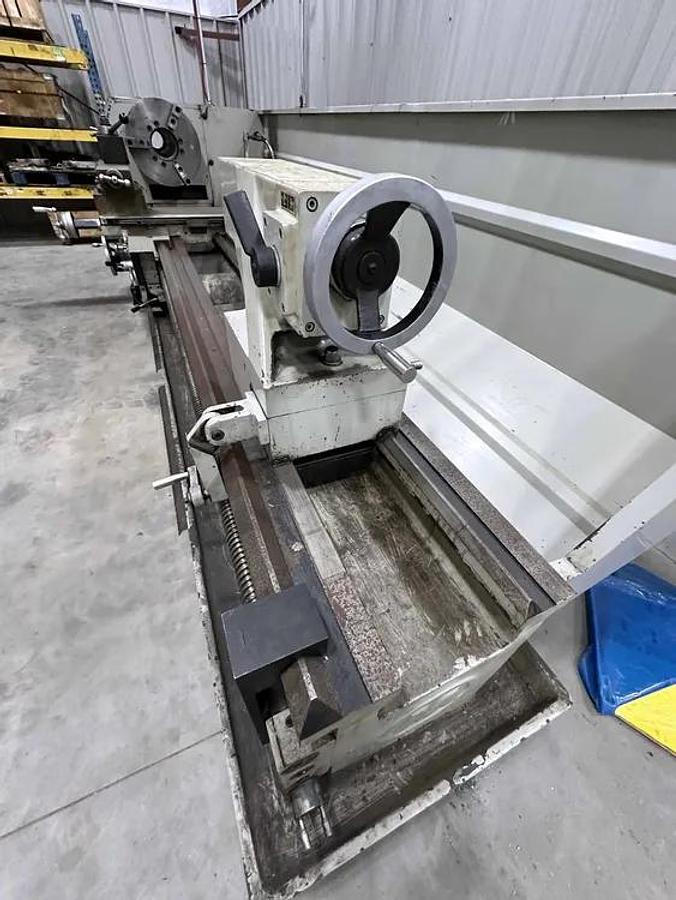

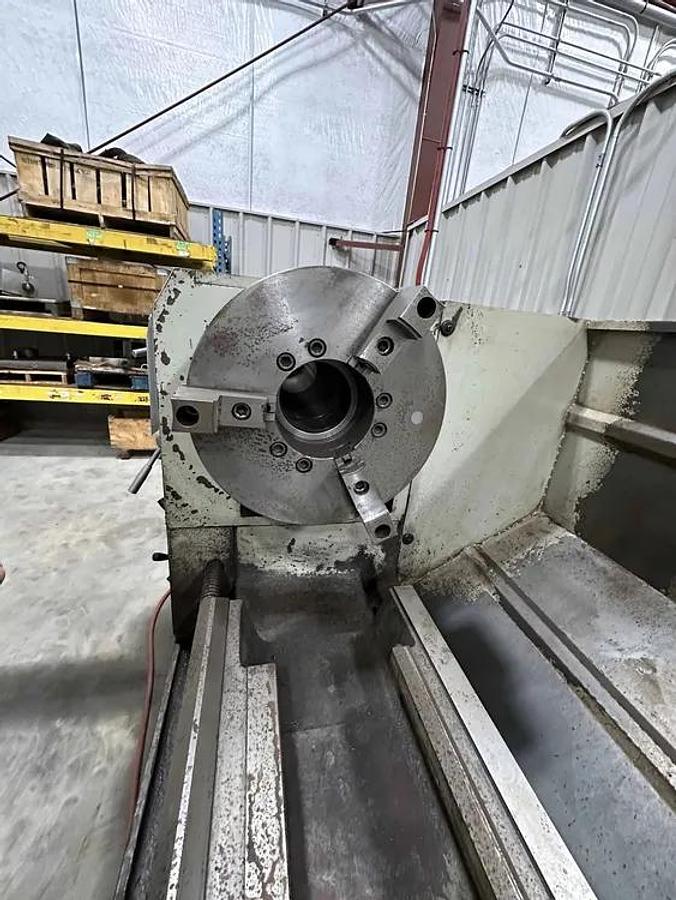

2006 ACRA HR 780x 3000G Engine Lathe Used Chu Shing/Acra HR-780x3000G. This pre-owned Manual Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Chu Shing/Acra Manual Lathe we can review machine specifications. BED One-piece bed is made of high compressive strength cast iron, high rigidity and stability for high precision machining. Removable gap bed. Bbedways and slideways are harden and precision ground. Slideways are coated with Turcite B to ensure smooth movement and minimum wear. HEADSTOCK All gears in headstock are made of chromium molybdenum steel,(SCM-21) with harden and precision ground. Spindle supported at 3 pointed by precision taper roller bearings. Forced lubricated to all gears and bearings. GEAR BOX Universal gear box for inch,metric,MD and PD threading without change gears. APRON 4-way rapid traverse by the joystick, more convenient and efficient for operators. Overload safety device is equipped to avoid machine damage. Manual & automatic lubrication for bedways & slideways. Option / equipped with Backplate for 16 Chuck Tailstock Dead Center MT.5 Dead Center MT.6 w/Carbide Tip Spindle Center Sleeve machine specification SWING OVER BED 30.7" SWING IN GAP 42.12" SWING OVER CROSS SLIDE 21.25" DISTANCE BETWEEN CENTER 118.11" WIDTH OF BED 18" DIMENSIONS 173.3" x 88.9" 72.9" WEIGHT 9925 lbs SPINDLE BORE 6.25" HEIGHT OF CENTERS 13.77"
