AMADA Model HKA-800 Horizontal Bandsaw 20" x 31.5" Fully Automatic, Reconditioned, 80" infeed stoke
$39,950
Description

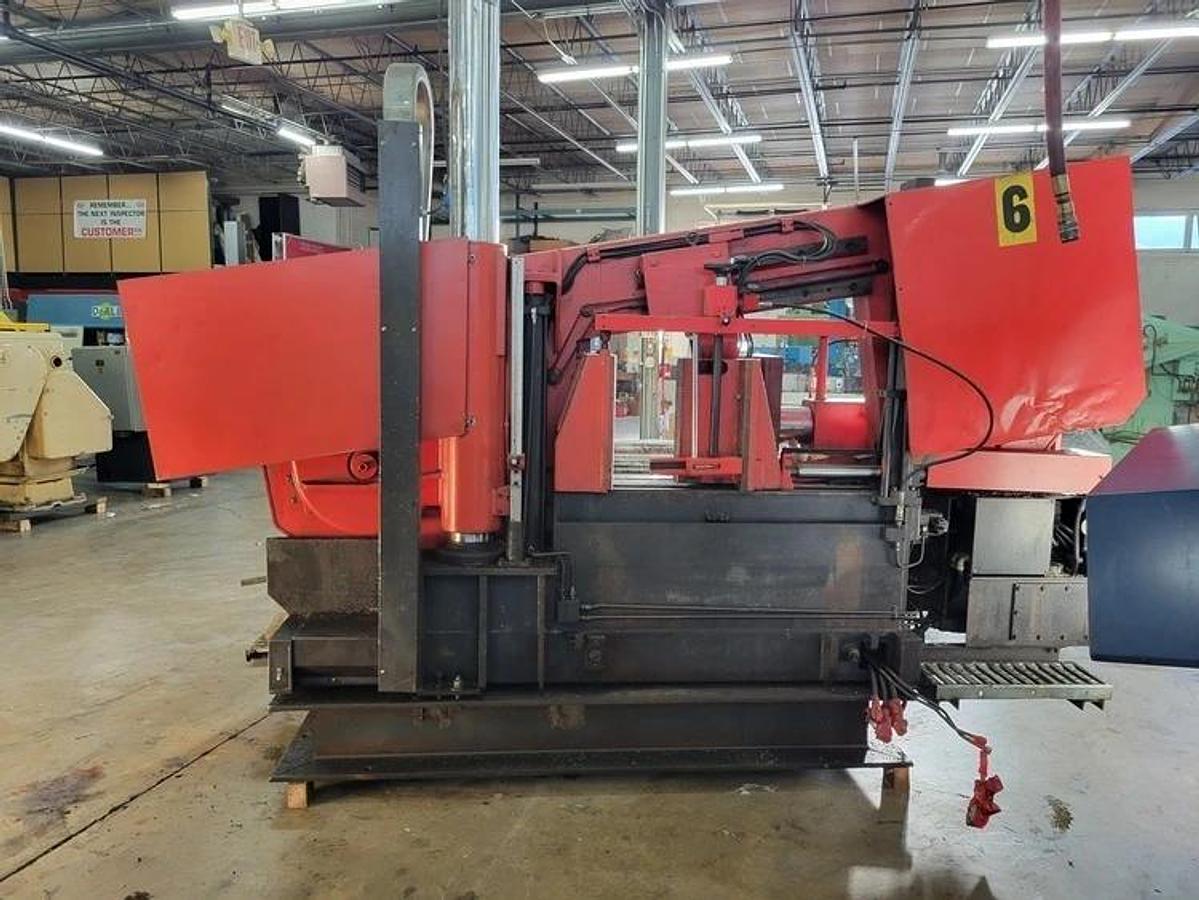

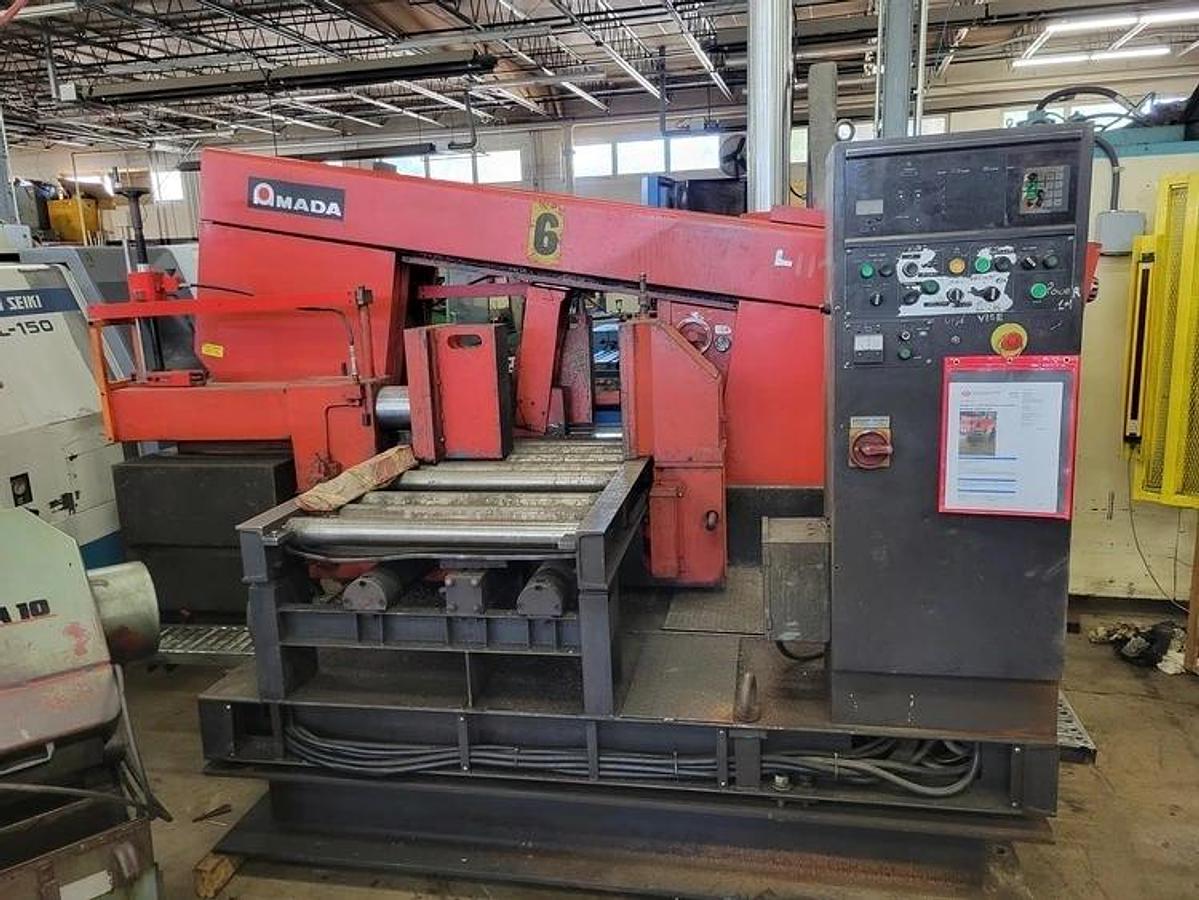

AMADA Model HKA-800 Horizontal Bandsaw 20" x 31.5", Fully Automatic, Reconditioned, 80" infeed stroke

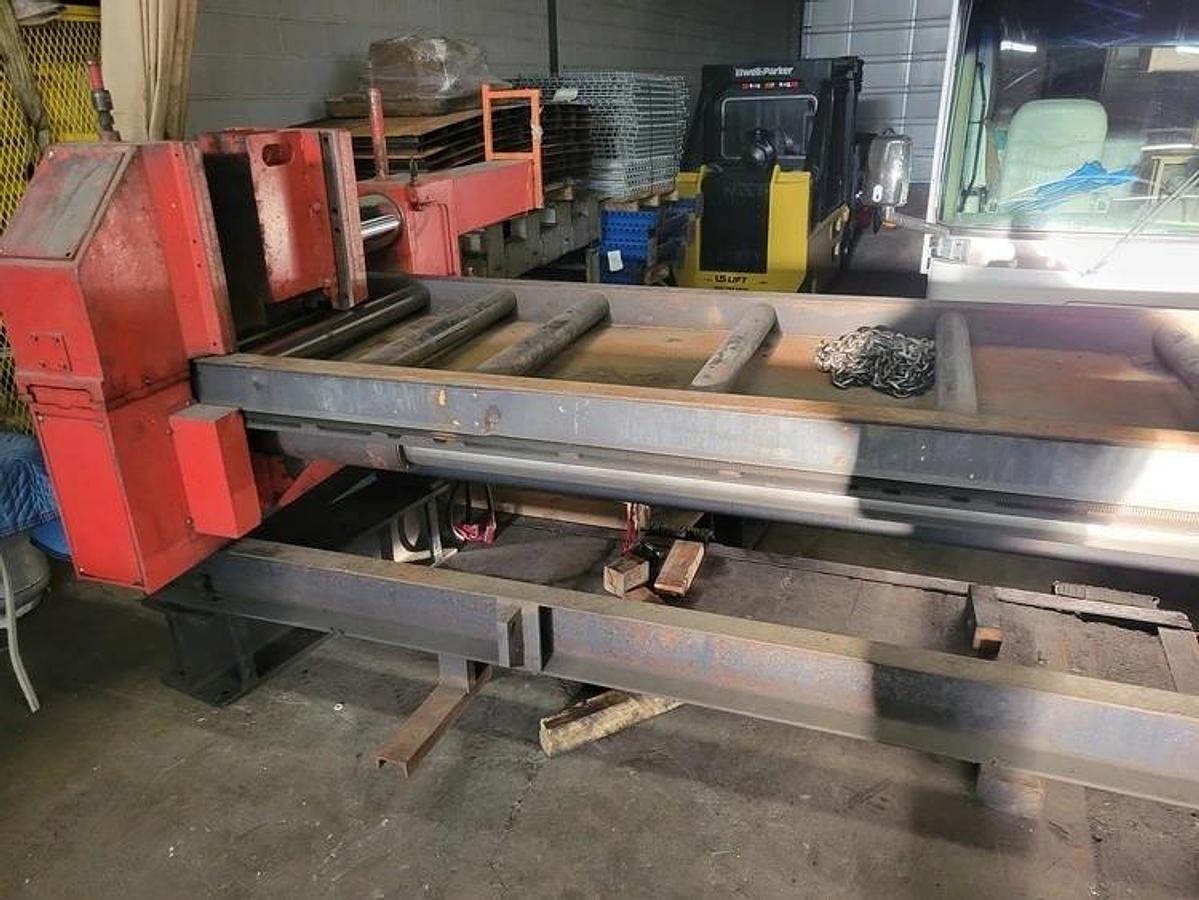

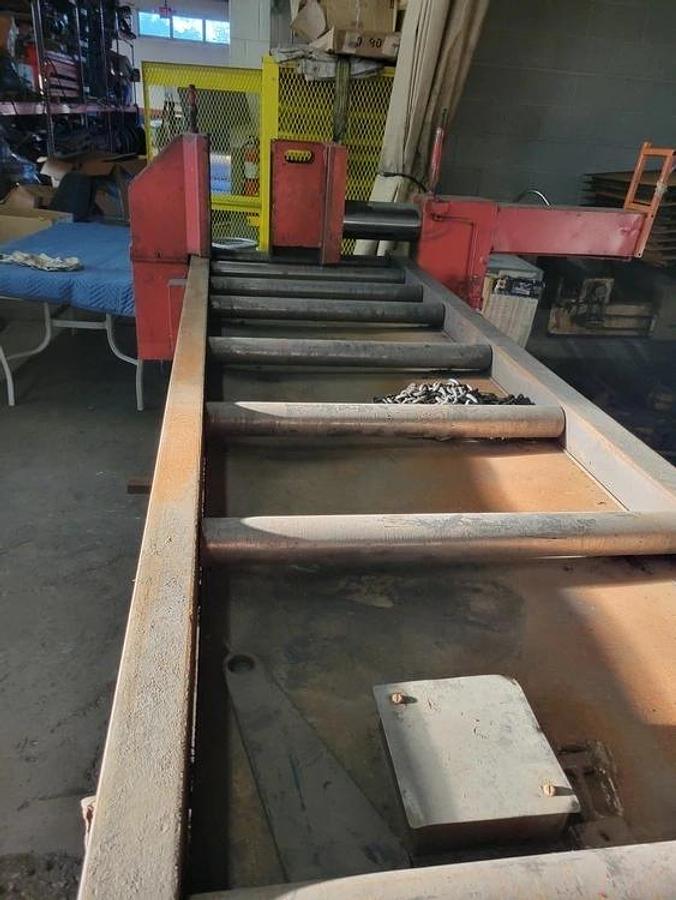

Amada Model HKA-800 Horizontal Column type, true horizontal Automatic bandsaw, with 80" Infeed travel in a single stroke, Bunding attachments on all three vises, 1, 1/2" Blade, variable speed

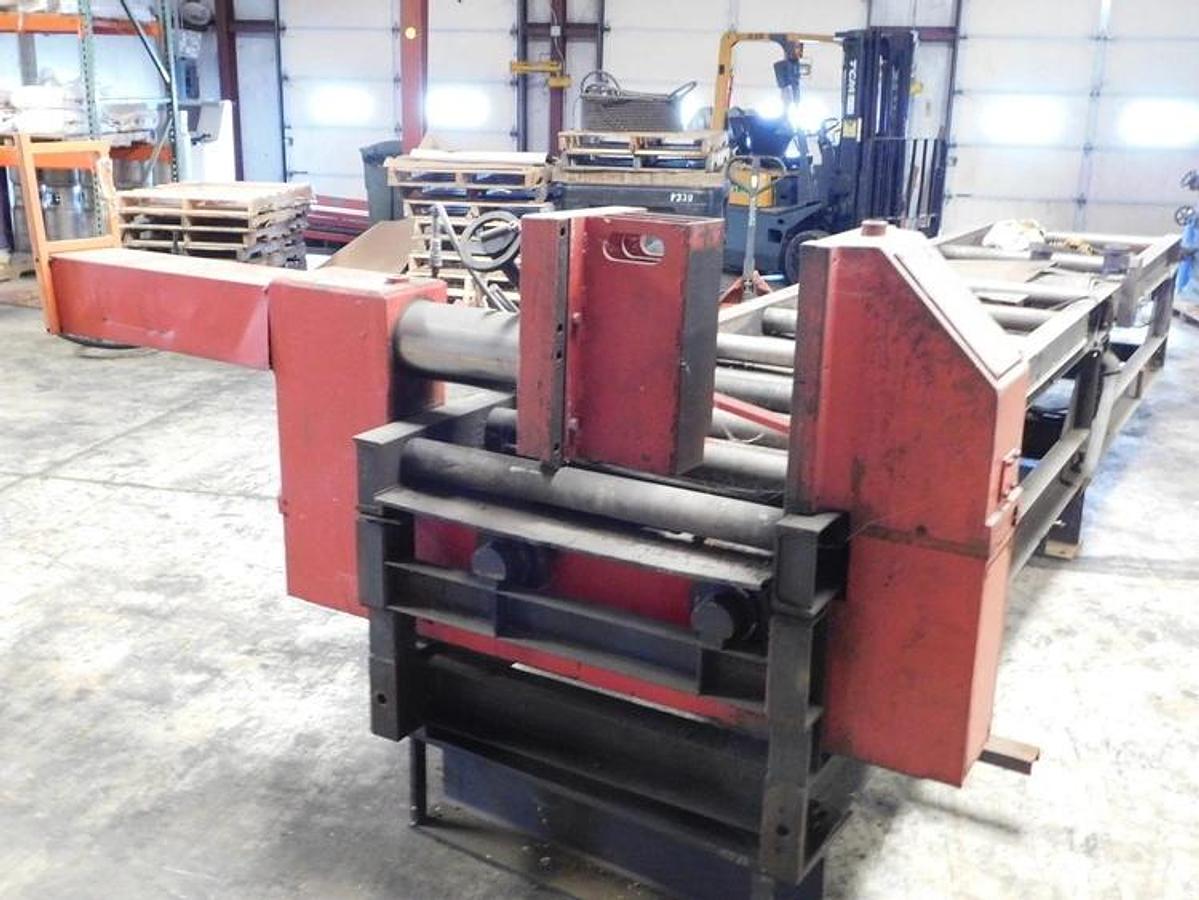

Front additional Shuttle vise to position work piece, 78.7" Stroke of Feed vise = faster cycle times, Hydraulic feedback system, Bundling clamps all 3 vises, flood coolant system, variable speed blade drive, full stroke vises
Specifications
Model HKA- 800 Straight cut only, No Miter
Capacity 31.5" x 24" Rectangle
Capacity 24" Round
Blade Size 1.5" x .050" x 21', 10"
Blade speed 98-262 FPM
Table height 27.6 ?
Allowable load 6,600 lbs.
Blade Motor 7.5 HP
Hyd. Motor 2 HP
Coolant motor .25
Floor space 138" x 262" x 102"
Height 102" Max.

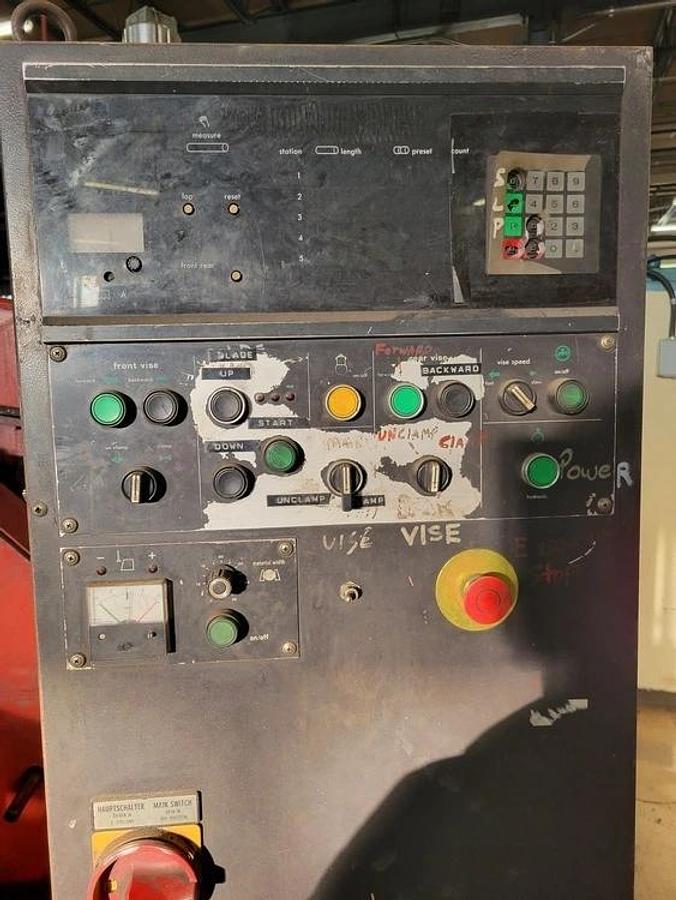

Control CNC (Amada)
Weight 13,200Lbs.
Specifications
| Manufacturer | AMADA |
| Model | HKA-800 |
| Year | 1989 |
| Condition | Used |
| Stock Number | 21666 |
| Status | For Sale |
| Country | United States |
| Rect-Cap (H) | 24"; 609.6 mm |
| Rect-Cap (W) | 31.5"; 800.1 mm |
| Rounds-Cap | 24"; 609.6 mm |
| Square-Cap | 24"; 609.6 mm |
| Power | 7.5 hp; 5.6 kW |
| Type (Auto, Manual, Semi) | Auto; Auto |
| Blade Width | 1.5"; 38.1 mm |
| Blade Thickness | 0.05"; 1.27 mm |
| Blade Length | 21.1"; 535.94 mm |
| Control | CNC; CNC |
| Dimensions | 138" x 262" x 102"; 138" x 262" x 102" |
| Weight | 13,200 lbs; 13,200 lbs |
