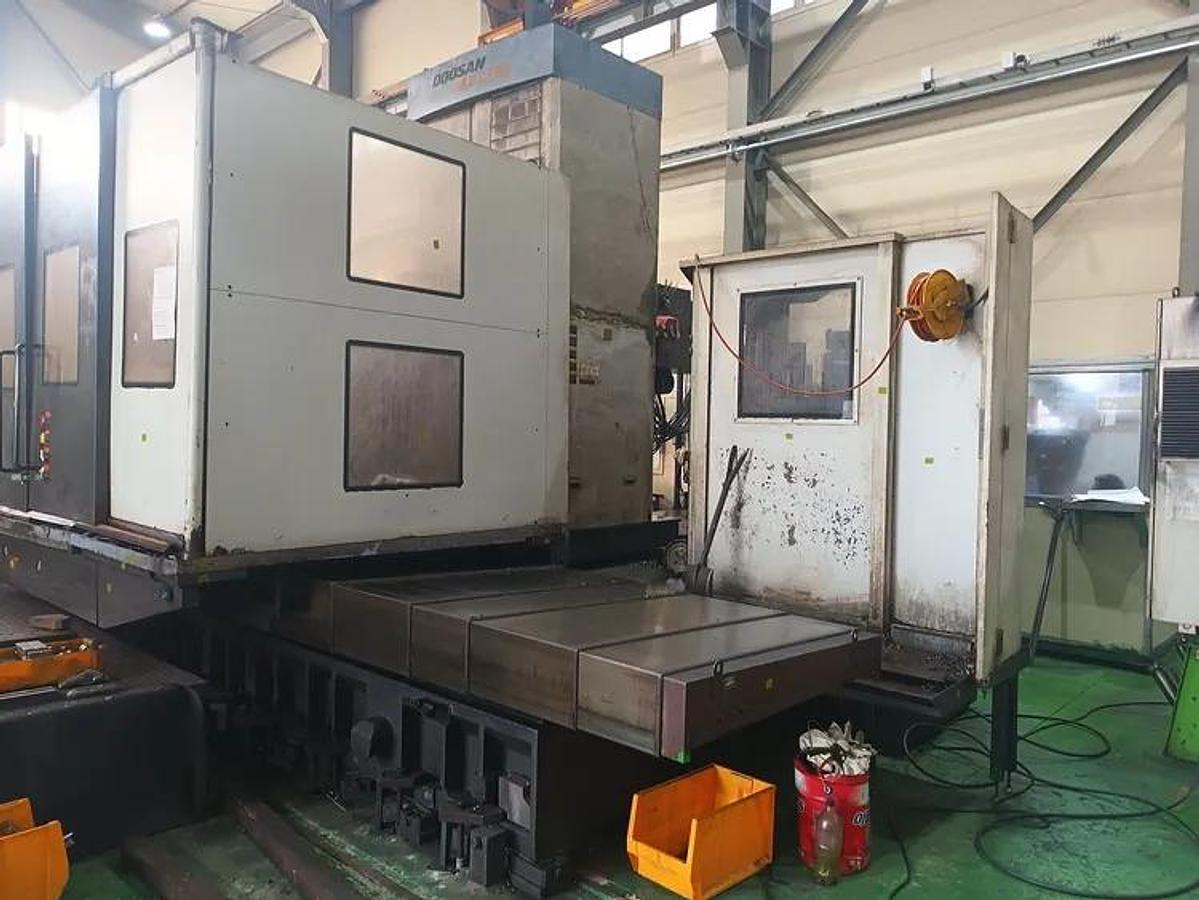

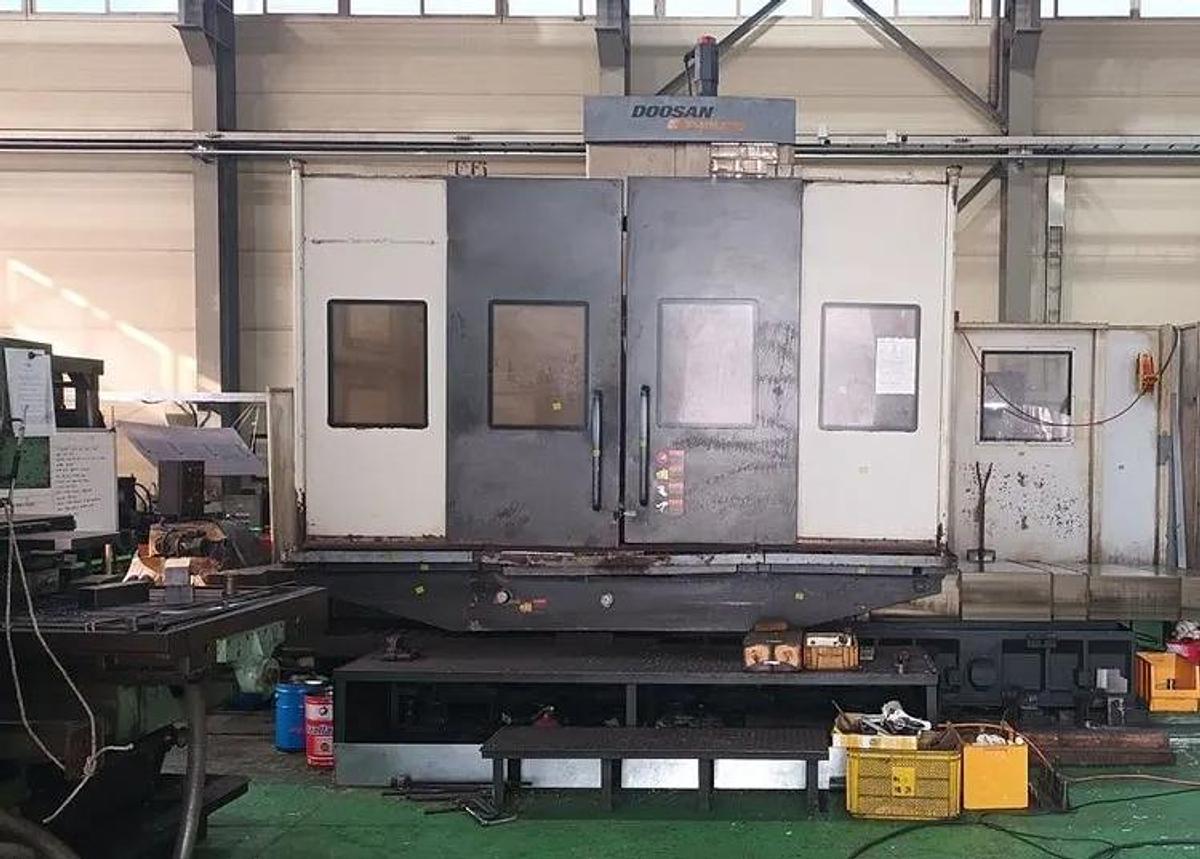

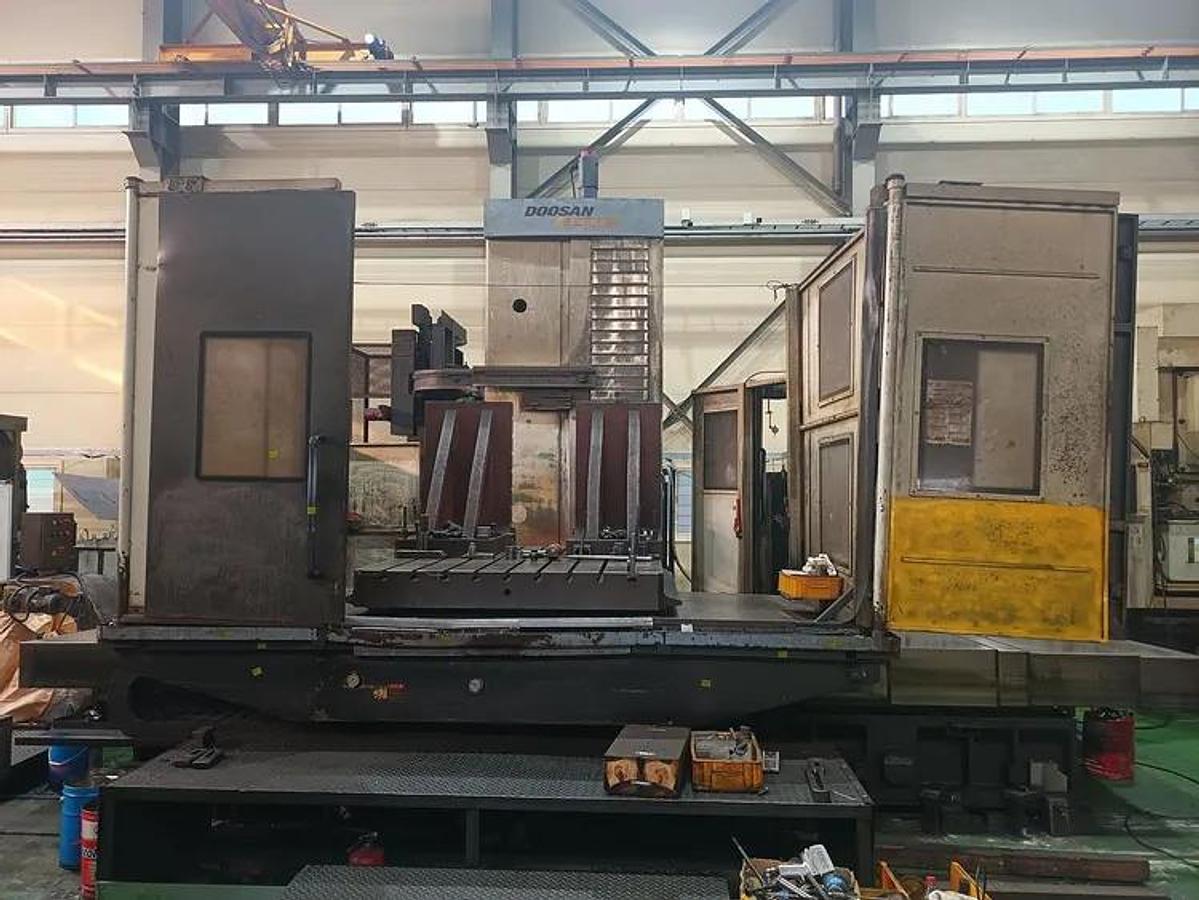

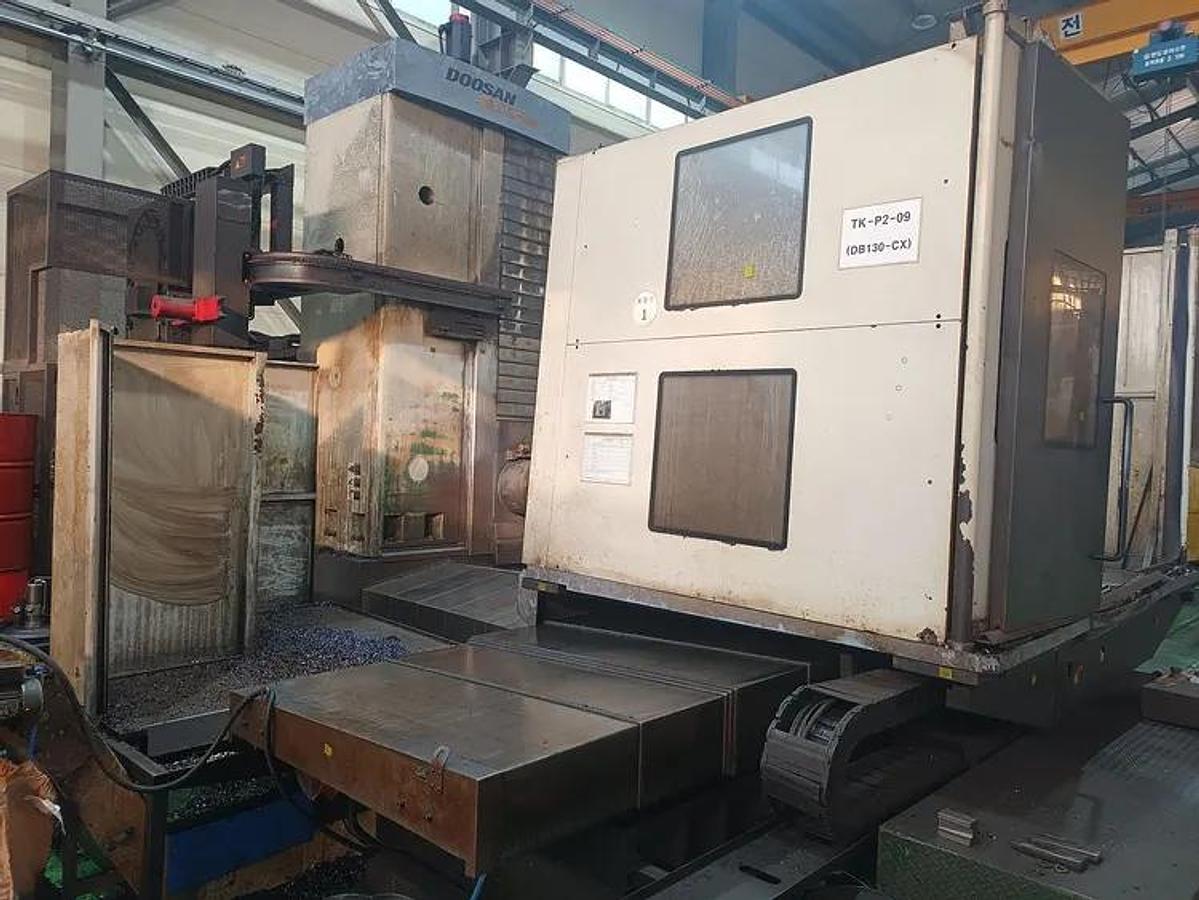

2008 DOOSAN HBM Model DBC 130CX: Travels X= 118.1", x Y= 78.7" ,x Z= 62.9", 40 ATC, BT 50
$198,000
Description
2008 DOOSAN HBM Model DBC 130CX: Travels X= 118.1", x Y= 78.7" ,x Z= 62.9", 40 ATC, BT 50
Doosan Machine Tools, now known as DN Solutions, has a rich history rooted in the founding of Park Seung-Jik Store in 1896. From its humble beginnings as a retail store, Doosan grew into a multinational conglomerate with a strong presence in manufacturing, including machine tools. The company has evolved through acquisitions, expansions, and technological advancements, becoming a global leader in the machine tool industry.
Rotary Table (1/1000 ͦ)

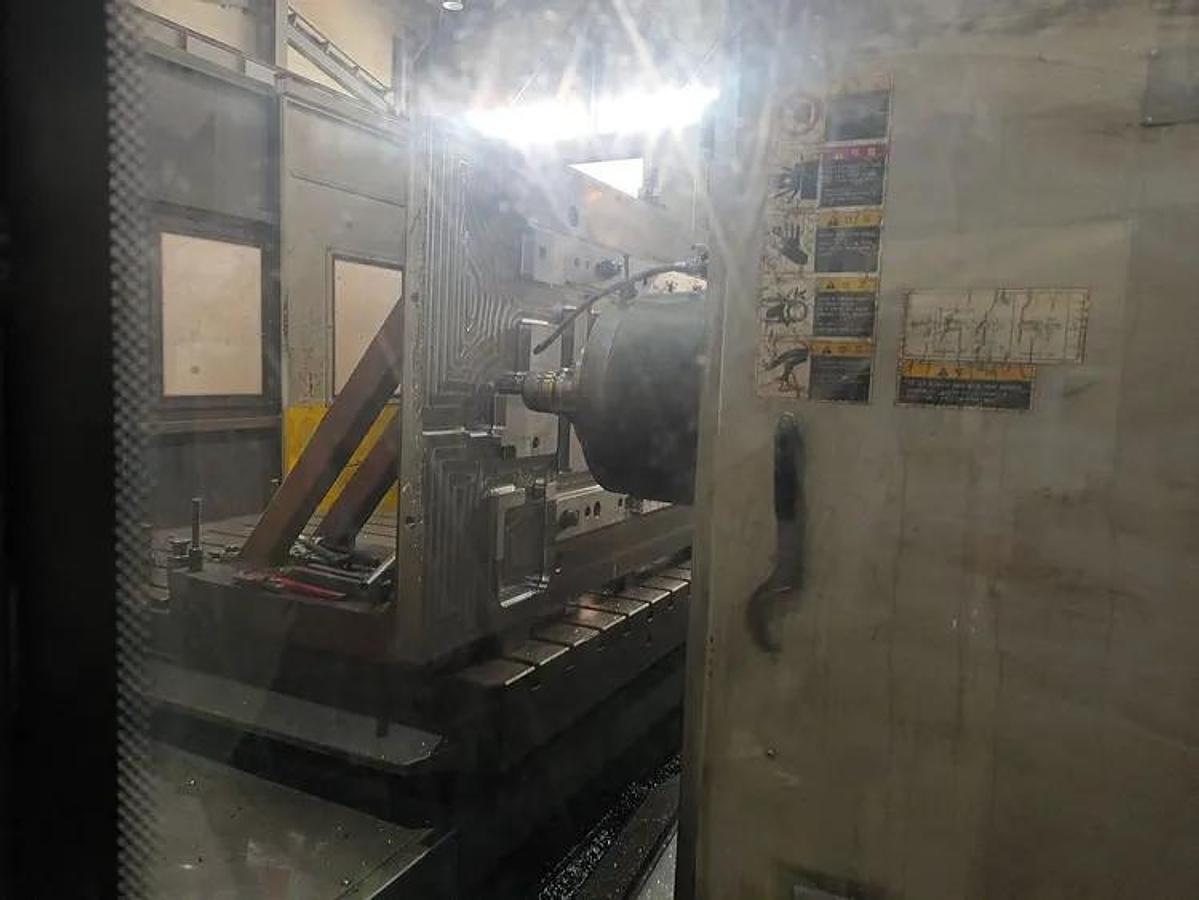

Spindle
Machine Weight 43,000 Kg
Floor space 8970 x 7640 x 5070(H) mm
Specifications
| Manufacturer | DOOSAN |
| Model | DBC-130CX |
| Year | 2008 |
| Condition | Used |
| Stock Number | 22185 |
| Status | For Sale |
| Spindle Size | 5.12"; 130.05 mm |
| X-Horiz Tvl of Table | 118.1"; 2,999.7 mm |
| Y-Vert Tvl of Head | 78.7"; 1,999 mm |
| Power | 35 hp; 26.1 kW |
| RPM | 3,000 RPM; 3,000 RPM |
| Table-W | 71"; 1,803.4 mm |
| Table-L | 62.9"; 1,597.7 mm |
| Spindle Tvl. | 27.6"; 701.04 mm |

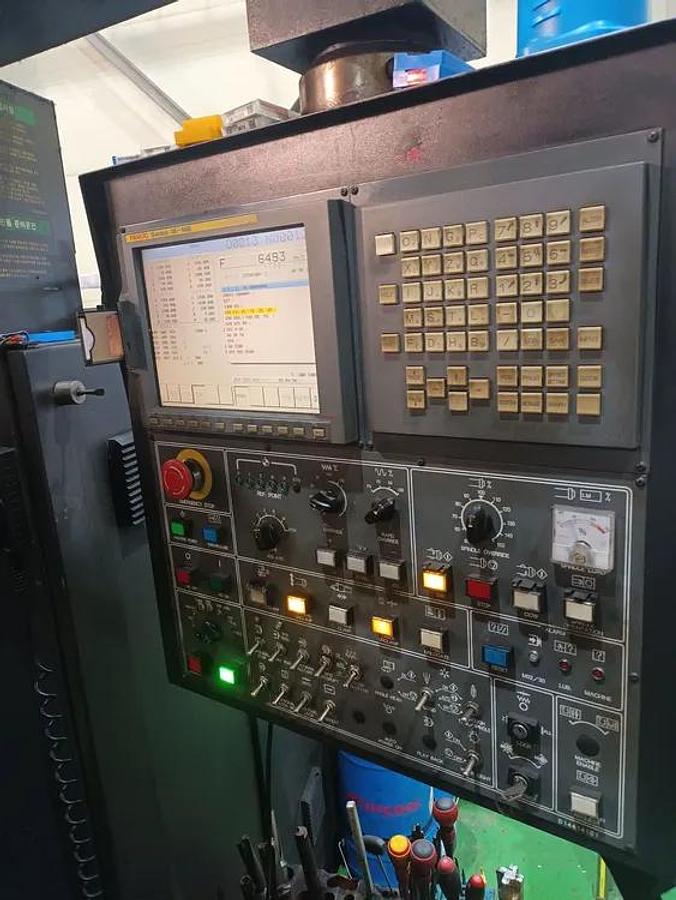

| Control | CNC (FANUC 18i-MB); CNC (FANUC 18i-MB) |
| Dimensions | 353.2" x 300.1" x 199.6"H; 353.2" x 300.1" x 199.6"H |
| Weight | 94,600 lbs; 94,600 lbs |
| Spindle Dia. | 130mm |
| Travel | XYZ – 3000/2000/1600 mm |
| Size | 1800 x 1600 mm |
| Max. Load | 15000 Kg |
| Speed | 3000 rpm |
| Tool type | BT50 |
| ATC | 40 tools |
