Description

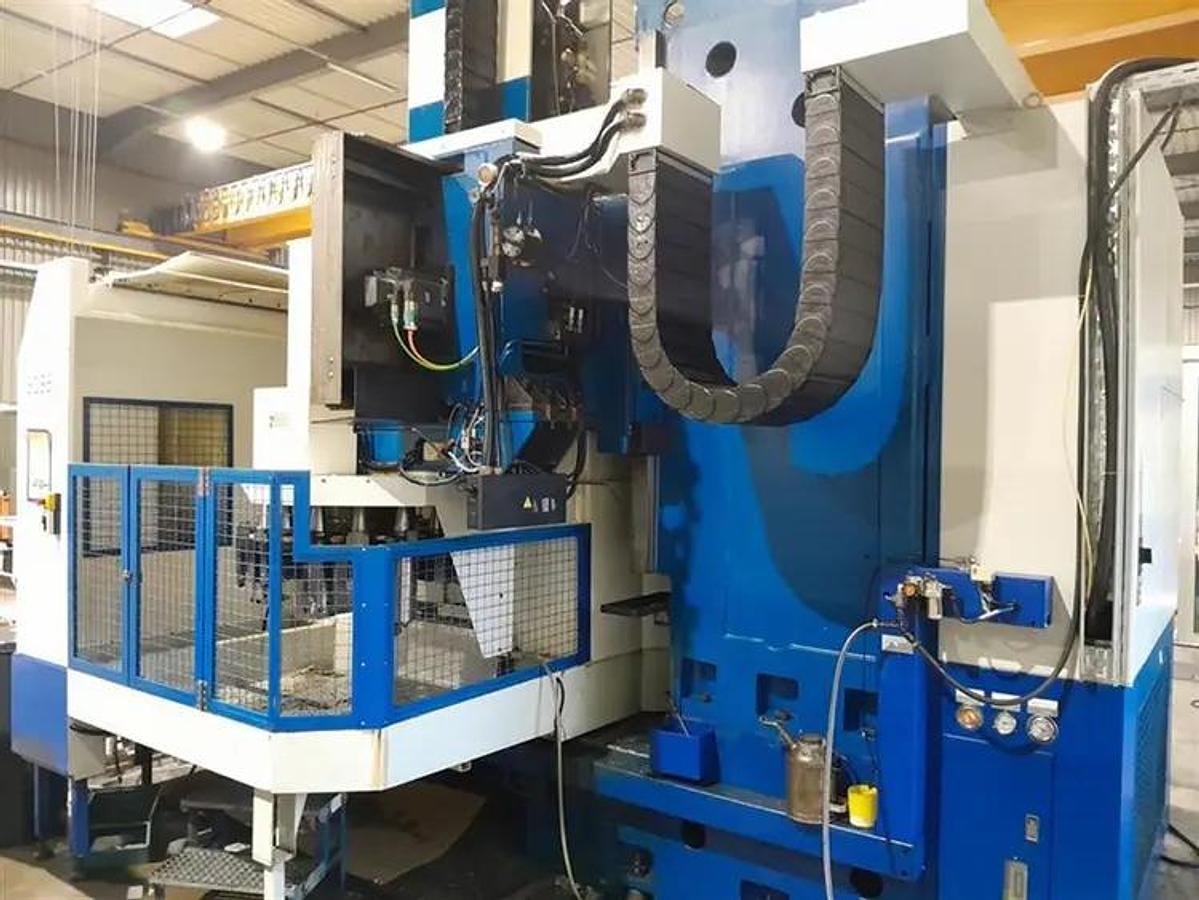

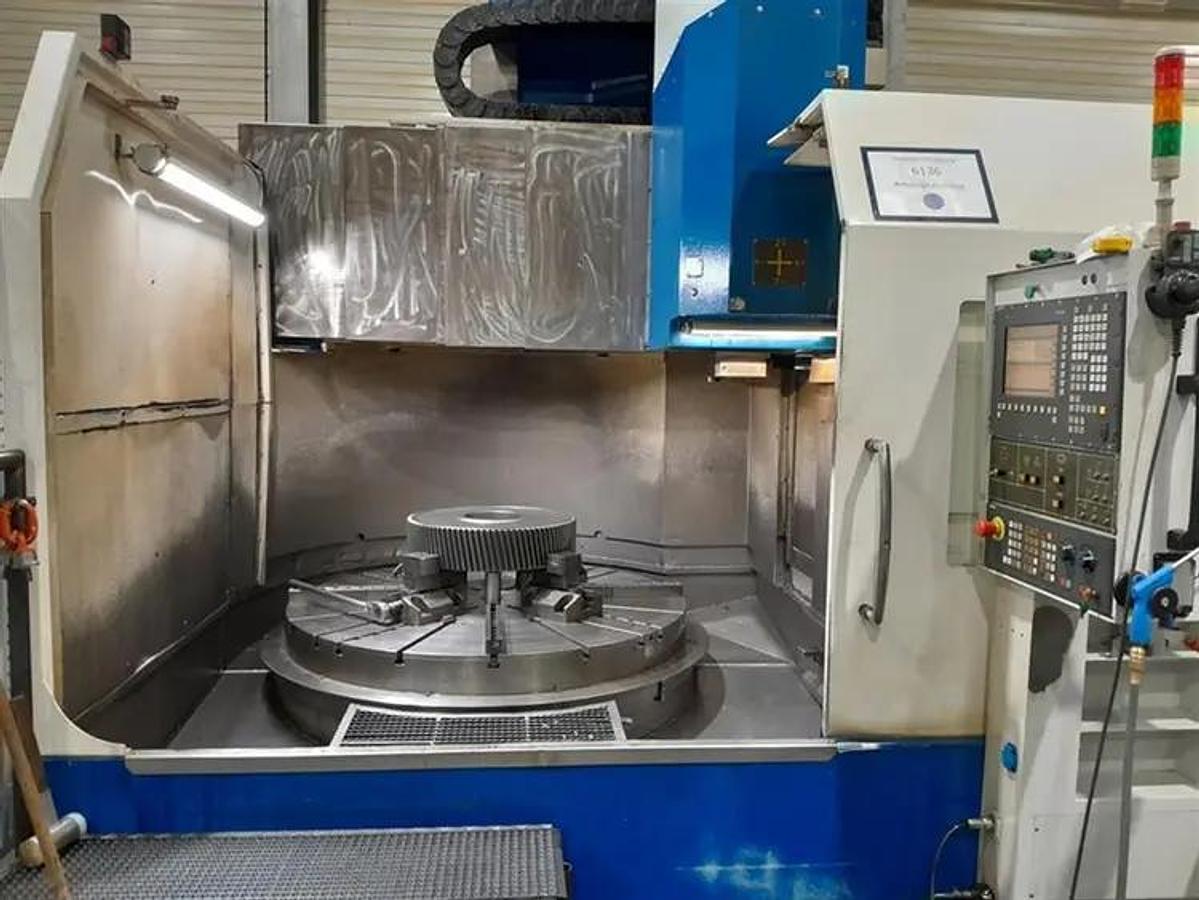

2007 FERMAT VLC 1600 ATC+C VERTICAL TURRET LATHES WITH SINGLE COLUMN
FERMAT began in 1990 and was founded by Jiří Ferenc and Mr. Matys, whose last names were used to form the company name. From the outset, FERMAT has benefited from the solid professional ethics of family and friends to guide its excellence. Through strong growth and strategic acquisitions in the Czech Republic and the United States, FERMAT has become the leading manufacturer of the most powerful and accurate horizontal boring and milling machines and cylindrical grinding machines, providing machine tools for all major markets worldwide.
Today, FERMAT has more than 470 employees on three continents, producing more than 100 machines a year. FERMAT's main production and assembly facilities are in Brno, the second largest city of Czechia and Lipnik nad Becvou, to the north-east. As FERMAT continues to expand its machine tool range, this capital expansion will continue.
C Axis
Technical Details:
Machine - Datasheet
CNC

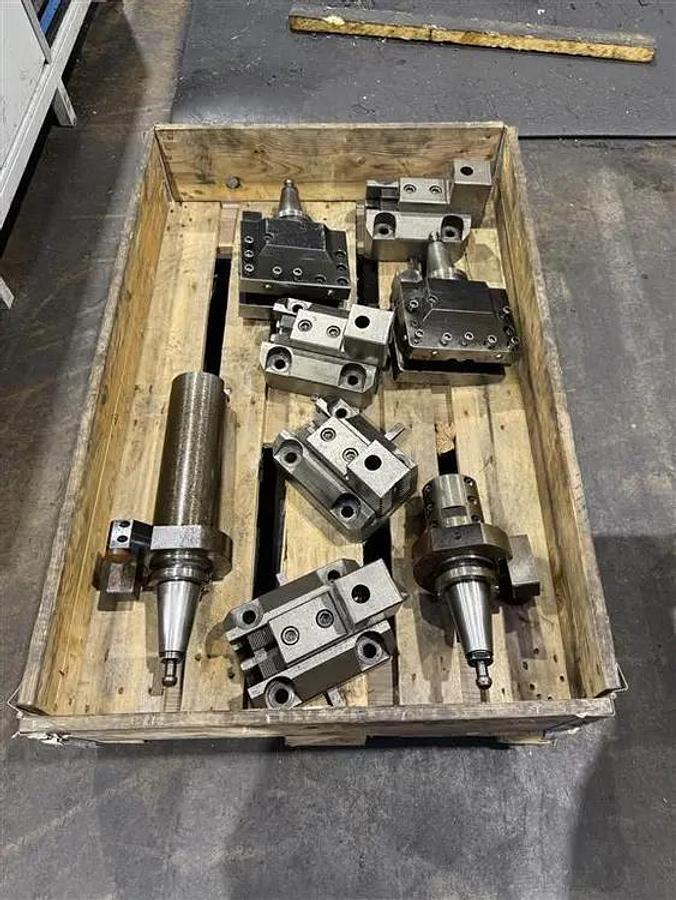

Driven Tools

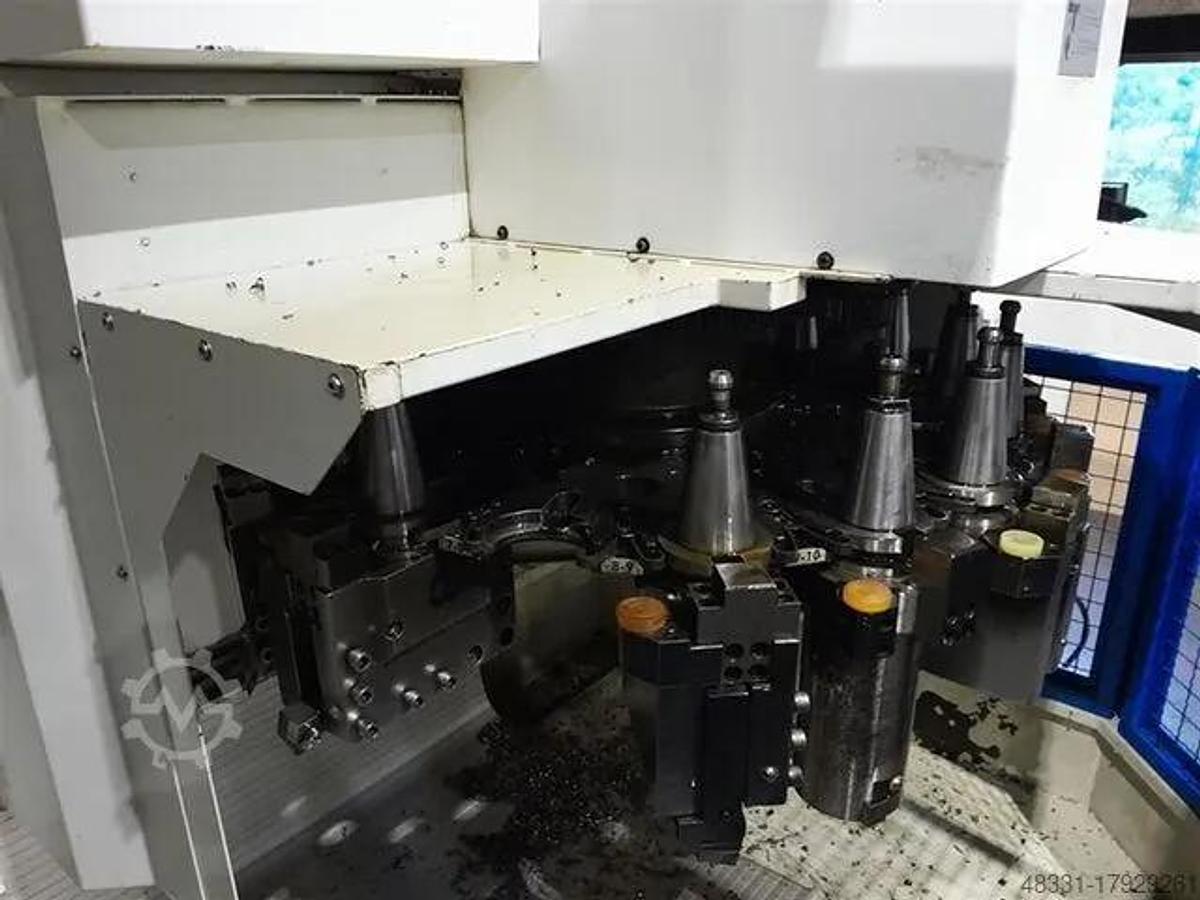

Tool magazine
Cooling through spindle
max. diameter of face turning 1800 mm
with live tools
Specifications
| Manufacturer | FERMAT |
| Model | VLC 1600 ATC+C |
| Year | 2009 |
| Condition | Used |
| Stock Number | 22127 |
| Status | For Sale |
| Swing | 78.74"; 2,000 mm |
| Machining Length | 61"; 1,549.4 mm |
| # Axis | 4; 4 |
| Chuck Size | 8.66"; 219.96 mm |
| Power | 100 hp; 74.6 kW |
| Max RPM | 2,400 RPM; 2,400 RPM |
| Turning Dia | 70.87"; 1,800.1 mm |
| Tailstock | No; No |
| Live Tooling | Yes; Yes |

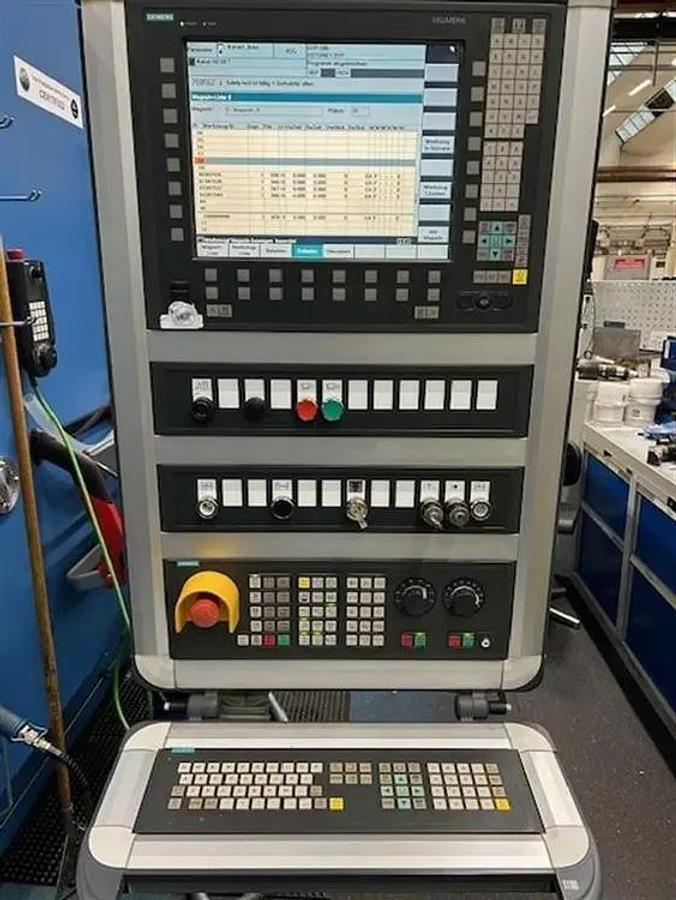

| Control | CNC (Siemens 840D); CNC (Siemens 840D) |
| Dimensions | 208.6" x 186.4" x 204.7"; 208.6" x 186.4" x 204.7" |
| Weight | 50,000 LBS; 50,000 LBS |
| Year manufacture/Year overhaul | 2009 |
| Control system Siemens | Sinumerik 840 D |
| Max. diameter of workpiece | 2000 mm |
| Clamping diameter of rotary table | 1600 mm |
| Max. load of table | 8000 kg |
| Max. workpiece height | 1550 mm |
| Ram travel (Z) | 900 mm |
| Number of tool positions (driven) | 16/16 |
| Number of positions in magazine | 16 |
| Travel X-axis | 1575 mm |
| Travel Z-axis | 900 mm |
| Machine dimensions l x w x h | 5300x4666x5200 mm |
| Machine weight | 25000 kg |
| Ram size | 220x220 mm |
| Max. diameter of peripheral turning | 1800 mm |
| Max. diameter of face turning | 2000 mm |
| Pressure of cooling | 12 bar |
| Main motor power | 60/84 kW |
| Speed driven tools | 1 - 2400 /min |
| Table rotation | 1 - 250 /min |
